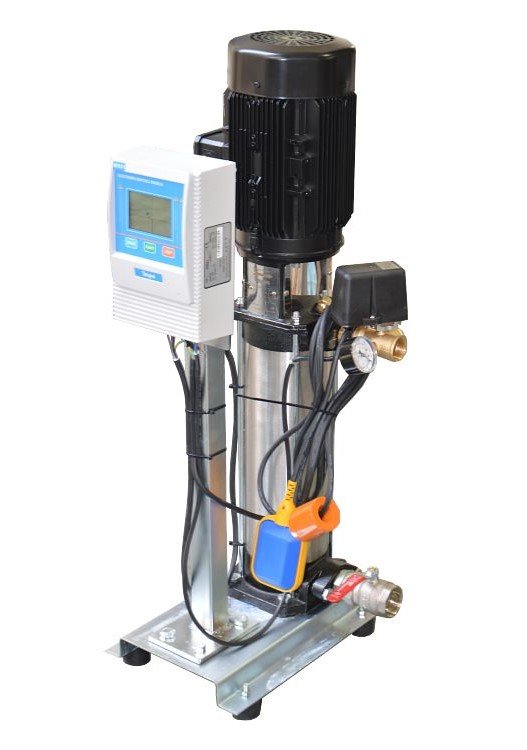

IMPO NCV 15/08 X 1 Single Pump Packaged Hydrophore System 5.5HP 380V
High-Pressure Water Supply & Automation with ORFA Industrial Assurance
The heartbeat of industrial and commercial water pressurization systems, the IMPO NCV 15/08 X 1 packaged hydrophore system, is a perfect combination of high performance and energy efficiency. This packaged hydrophore system features a 5.5 HP IE3 class WATT motor with a head capacity of 82 meters and a maximum flow rate of 22 m³/hour, meeting the constant pressure water needs of large buildings. With a stainless steel body, this professional packaged hydrophore system offers full resistance to corrosion and acidic water, ensuring a long service life. Thanks to the Noril (nitrile rubber) impeller material, this packaged hydrophore system delivers stable performance even under extreme working conditions. Operating at 380V three-phase, it connects directly to industrial power grids and is applicable in a wide range from residential complexes to food processing plants. With IP55 protection and Class F insulation, this packaged hydrophore system can be safely operated outdoors and in humid environments. Available from ORFA Industrial, this packaged hydrophore system operates at a nominal pressure of 10 Bar, ensuring maximum safety and efficiency. The single-pump design simplifies installation, reduces the need for additional accessories, and lowers overall setup costs. With a 1 1/2" inlet and 1 1/4" outlet, this packaged hydrophore system seamlessly integrates with standard piping systems. Designed with a minimum 500-liter tank volume, it provides adequate accumulation in tank systems, reducing pump cycling frequency and extending motor life. With the IMPO NCV 15/08 X 1 packaged hydrophore system, you get a reliable, economical, and eco-friendly water pressurization solution.
Packaged Hydrophore Technical Specifications
Performance Data (Flow / Head)
| Flow (m³/hour) | 0.0 | 5.5 | 11.0 | 16.5 | 22.0 |
|---|---|---|---|---|---|
| Head (m) | 82 | 75 | 65 | 48 | 25 |
Key Advantages of Packaged Hydrophore
- High Head Capacity: Powerful packaged hydrophore system delivering water up to 82 meters.
- Energy Efficiency: Packaged hydrophore with IE3 WATT motor reduces operating costs by up to 30%.
- Long-Lasting Design: Corrosion-resistant packaged hydrophore with stainless steel body and Noril impeller.
- Easy Installation: Single-pump packaged hydrophore for simple setup and maintenance.
Application Areas
- Central packaged hydrophore systems in apartment buildings and residential projects.
- Constant pressure water supply and pressurization in industrial facilities.
- Packaged hydrophore for commercial buildings, hotels, and hospitals.
- High-flow packaged hydrophore systems for agricultural irrigation.
Technical Support & Supply for Packaged Hydrophore
For installation and spare parts support for the IMPO NCV 15/08 X 1 packaged hydrophore system, contact the ORFA Industrial expert team.
Build a reliable, economical, and long-lasting water pressurization system with IMPO packaged hydrophore solutions.
| Operating Voltage | : | 380 V AC |
| Power (P) | : | 5.5 HP - 4 KW |
| Body Material | : | Stainless |
