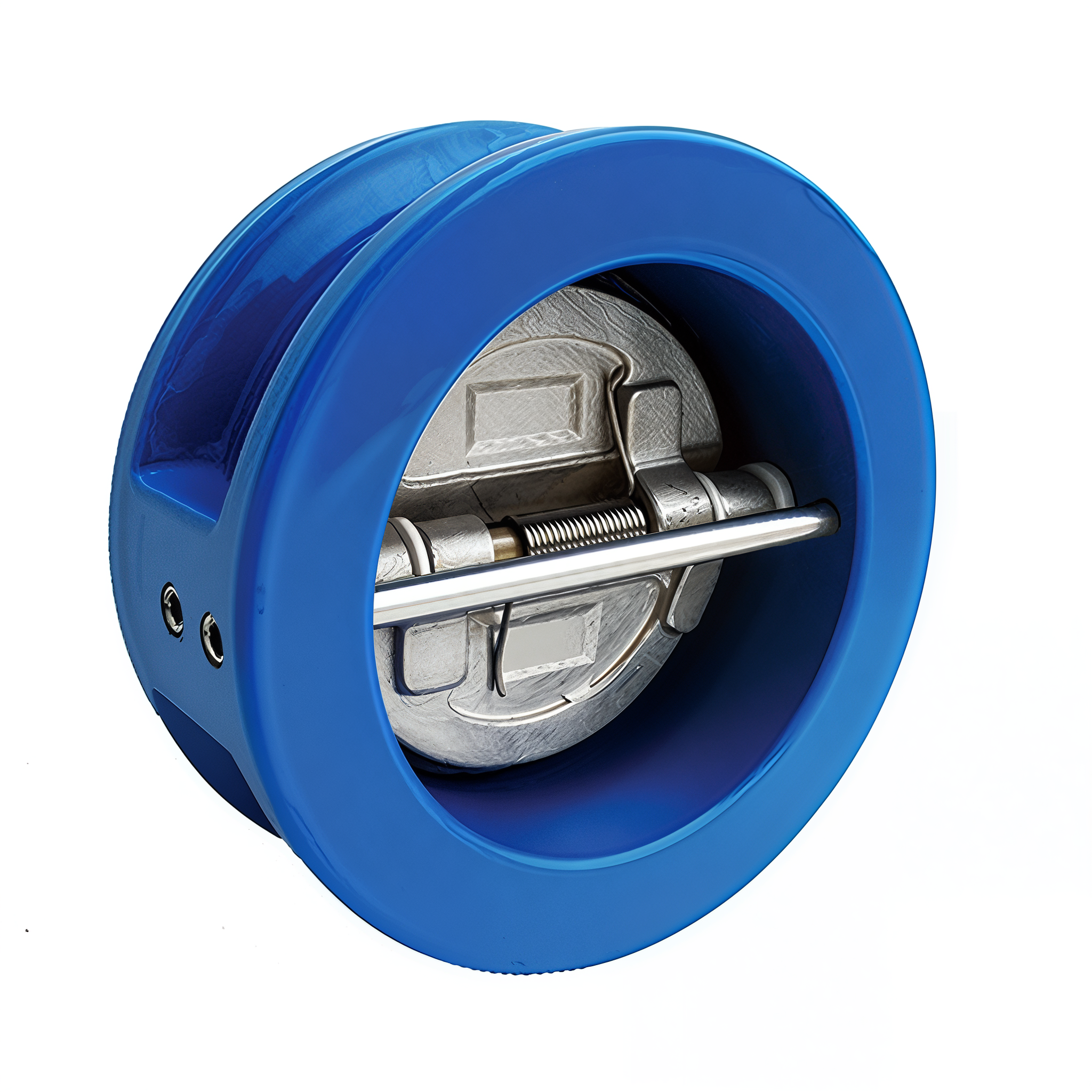

KSB Double Flap Check Valve SERIE 2000 DN350 PN16 Compact, Impact-free and Durable Backflow Control for High Flow Lines

The KSB SERIE 2000 Double Flap Check Valve is a high-performance backflow prevention valve specifically designed for high-volume pipelines with a diameter of 350 mm (DN350). Its compact wafer-type design saves installation space, and its nickel-plated double flap provides a long-lasting, low-maintenance solution. Resistant to pressures up to 16 bar, this valve protects against water hammer without compromising flow performance. Supplied with the assurance of ORFA Industrial Products Industry and Trade Inc., this product can be used safely with a wide variety of fluids, including water, steam, and process fluids.

Product Working Principle:

The KSB SERIE 2000 check valve operates with two spring-supported flap mechanisms. The flaps, which open under fluid pressure, quickly close under spring force when reverse pressure occurs, preventing backflow. This reduces the risk of water hammer (water hammer) in the system and ensures installation safety.

Double Flap Check Valve Technical Specifications:

Brand / Model: KSB SERIE 2000

Nominal Diameter (DN): 350 mm

Pressure Class: PN16

Connection Type: Wafer (between flanges)

Body Material: GG-25 Cast Iron or GGG-40 Ductile Iron

Valves: Nickel-plated on ductile iron

Sealing Elements: NBR, EPDM or Viton (depending on fluid type)

Mounting Position: Can be used in both horizontal and vertical lines

Closing Mechanism: Spring assisted, quick response

Flow Direction: Unidirectional

Double Flap Check Valve Usage Areas:

Water Distribution Systems: Controlled and hygienic management of drinking water and process water.

Industrial Processes: Hot water, process water, cooling water lines

Pump Stations: For protection against back pressure at pump outlets

Fire Extinguishing Systems: Ensures safety by preventing backflow in the system.

Power Plants and Cooling Lines: Pressure and direction control in large-scale, high-flow systems

The KSB SERIE 2000 Double Flap Check Valve is a compact, reliable, and economical backflow control solution for high-flow applications, offered with the assurance of ORFA Industrial Products Industry and Trade Inc. Its nickel-plated flaps offer long life and chemical resistance.

Body Material	:	Ductile Iron
Pressure Class (PN)	:	PN 16
Nominal Diameter (DN)	:	DN 350
Disc Material	:	Nickel Plated Ductile Iron
