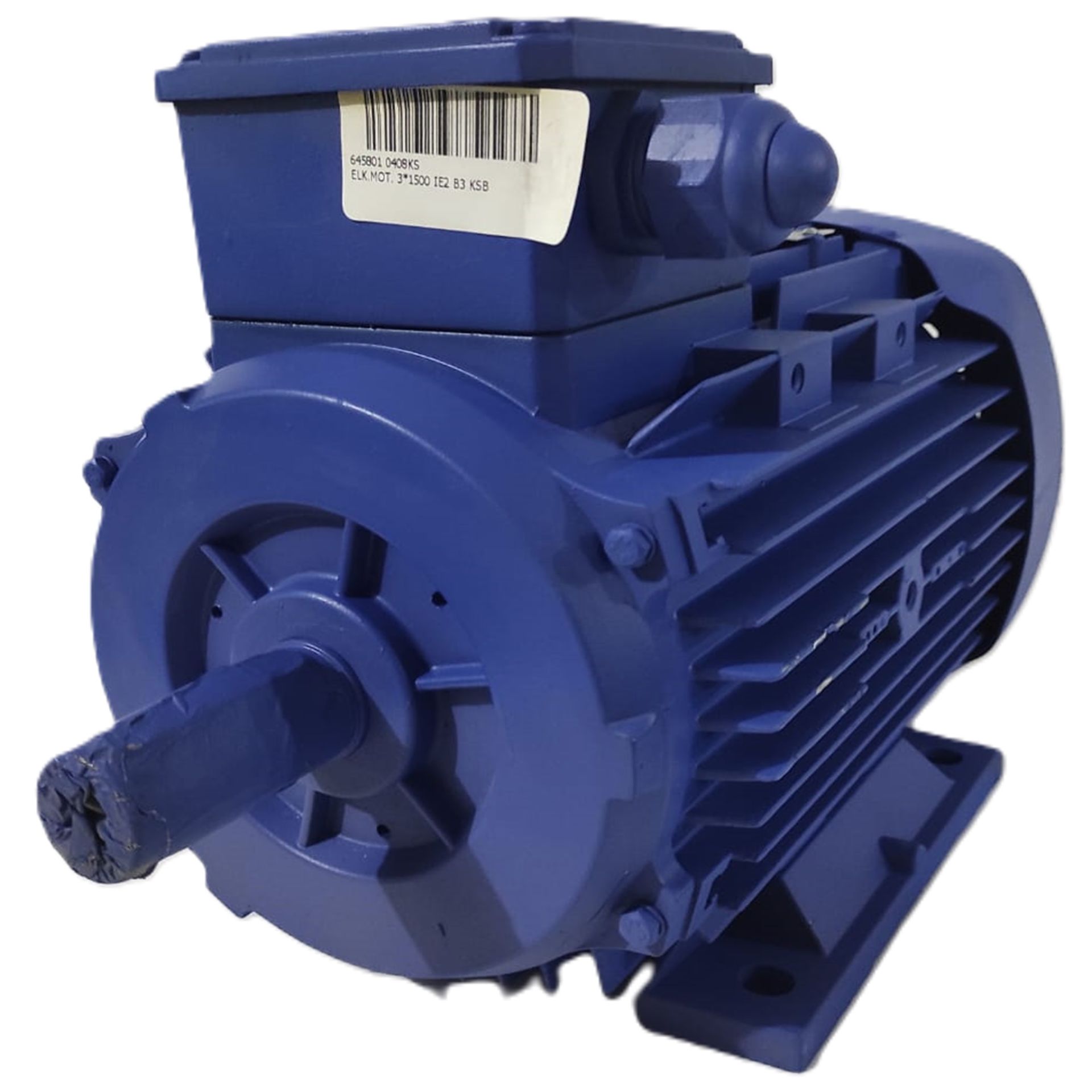

KSB Electric Motor 3 kW 1435 rpm IE2 B3 Feet
428,19 USD
Installments starting from 428,19 USD!
KSB Electric Motor 3 kW 1435 rpm IE2 B3 Feet
Reliable Power for Industrial Pump and Fan Applications with ORFA Industrial Assurance
This electric motor from the prestigious Q2E series of KSB brand is an outstanding example of engineering and durability for medium-speed industrial applications. With a nominal power of 3 kilowatts, this electric motor is an indispensable component in pump stations, cooling towers, fan systems, and gear drive applications. Designed with IE2 energy efficiency classification, this electric motor operates at 85.5% efficiency, significantly reducing industrial facility energy costs. Running at a nominal speed of 1435 rpm, this electric motor is fully compatible with 1500 rpm class applications and provides stable performance in systems requiring precise load control. With B3 feet-mounted installation type, this electric motor is easily fastened to a horizontal plane and connects effortlessly to couplings or belt-pulley systems. Operating with three-phase connection (400/230 volts), this electric motor has IP55 protection in its housing, protecting it from dust and moisture in industrial environments. Thanks to its solid cast aluminum body and shaft, this electric motor achieves maximum mechanical durability, ensuring long-term and low-maintenance operation. The windings are guaranteed thermal resistance through Class F insulation, allowing this electric motor to run continuously at ambient temperatures up to 40°C. This electric motor, which you can source from ORFA Industrial inventory, provides quick installation with standard flange or coupling connections. Designed for continuous duty cycle S1, this electric motor meets the demands of 24-hour uninterrupted production. Each electric motor unit undergoes dynamic balancing and electrical tests before leaving the factory, delivered under ORFA quality assurance. Preferred in numerous applications—from pump suction to discharge line, from well drainage to pressure boost systems—KSB electric motor is among the most respected brands in the industry.
Electric Motor Technical Specification Details
Electric Motor Typical Load Characteristics (50 Hz)
| Load Percentage (%) | 25% | 50% | 75% | 100% |
|---|---|---|---|---|
| Efficiency (%) | 79.2 | 83.5 | 84.8 | 85.5 |
| Power Factor (Cosφ) | 0.52 | 0.68 | 0.73 | 0.75 |
| Current (A) | 2.1 | 3.9 | 5.2 | 6.6 |
Electric Motor Highlighted Advantages
- High Efficiency: IE2 class electric motor reduces energy costs by 10-15%.
- Trusted Partner: 150 years of industrial experience from KSB electric motor series guarantees quality.
- Durable Construction: Cast aluminum frame and stainless steel shaft provide maximum corrosion resistance.
- Easy Installation: Electric motor with B3 feet mounting is fastened to standard base in seconds.
Electric Motor Application Fields
- Electric motor applications in centrifugal and gear pump drives.
- Electric motor solutions for cooling towers, fans and ventilation systems.
- Industrial electric motor components in gear and belt drive systems.
- Electric motor elements in water supply, sewage and wastewater treatment facilities.
Electric Motor Technical Support and Supply
For KSB electric motor installation, spare parts support and technical consultation, contact ORFA Industrial expert team.
Maximize energy efficiency in industrial applications with KSB electric motor solutions and achieve long-term reliable performance.
| Power (P) | : | 4 HP - 3 KW |
| RPM | : | 1450 rpm |
