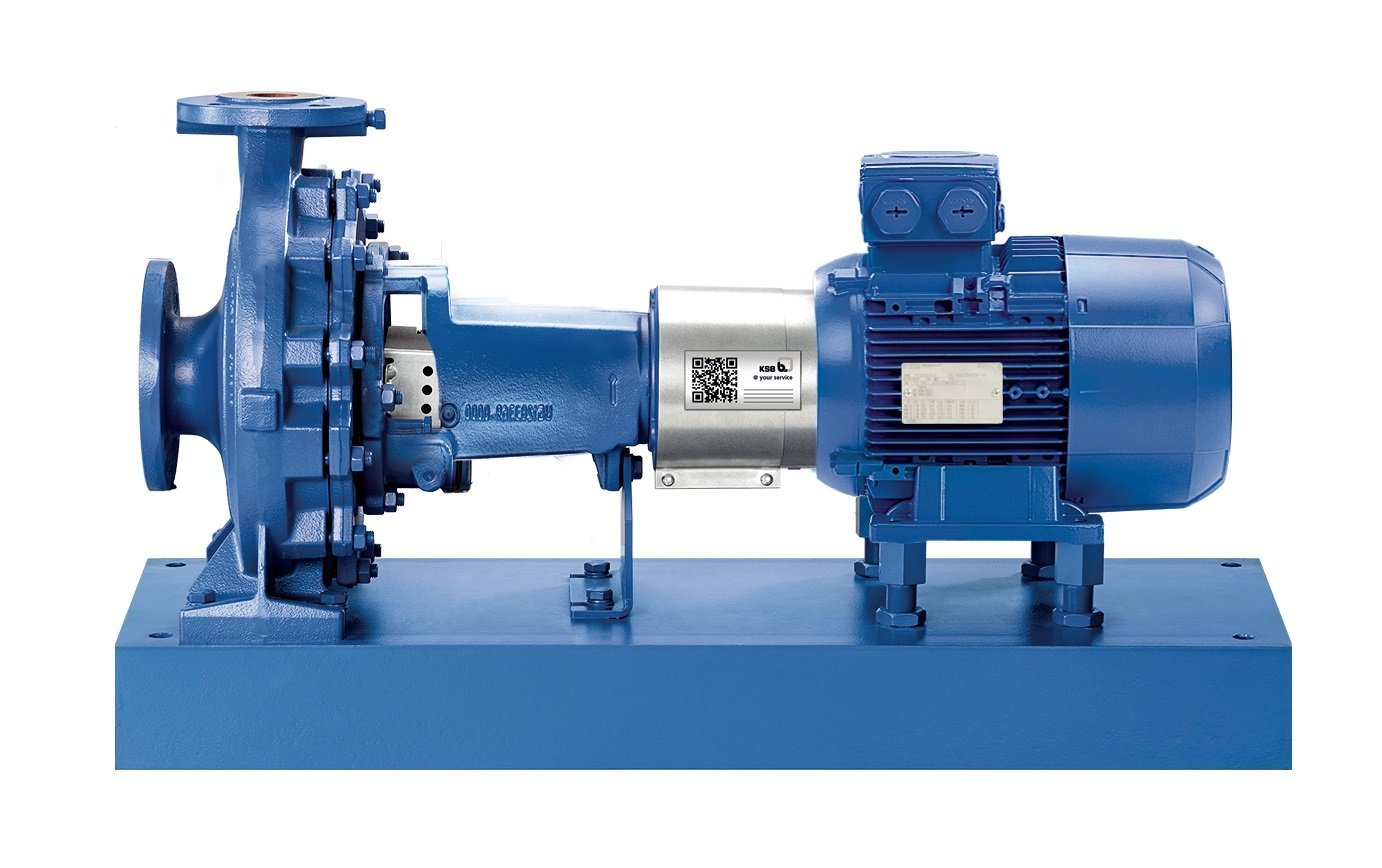

KSB Etanorm 065-040-160 Centrifugal Pump 0,55 kW | 1450 rpm
For businesses looking for compact, efficient and sustainable solutions in industrial liquid transfer, KSB Etanorm 065-040-160/5,54 GG provides both energy saving and safe operation in sensitive processes with its low speed operation. ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş ., offers this Centrifugal Pump model with high quality standards, delivery from stock and expert technical support.
Centrifugal Pump Features:
Model: Etanorm 065-040-160/5.54 GG
Pump Type: Horizontal, single-stage volute casing centrifugal pump
Engine Power: .55 kW
Operating Speed: 0 rpm
Rated Connections: Suction DN65 / Discharge DN
Pump Casing: Grey cast iron JL1
Impeller: Tempered steel E335 / C
Spindle: JL1040 cast iron, replaceable guard sleeve
Sealing: Single mechanical seal (Q1Q1X4GG)
Engine: WEG brand, IE3 energy class, 80M body
Protection Class: IP
Weight: ~88.26 kg
Centrifugal Pump Technical Information:
Fluid Used: Water
Liquid Temperature Range: °C – +110°C
Ambient Temperature: -10°C – +50°C
Maximum Flow Rate (Q): m³/h
Maximum Head (H): .3 mHH
Maximum Working Pressure: bar
MEI Value: ≥ 0.
Supply Voltage: x 380 – 480 V AC (%-15 / +10%)
Maximum Current: .75 A
Speed Range: – 1450 rpm
Centrifugal Pump Advantages:
Back Pull-Out Design: Easy maintenance without dismantling the pipe connection
Low Speed – High Safety: Ideal for sensitive processes with 1450 rpm
IE3 Motor: Energy saving and low operating cost
Long-Lasting Construction: Increased durability with wear rings and shaft protection sleeve
Easy Installation: Delivered as a pump + motor set on the base plate
Centrifugal Pump Usage Areas:
Industrial auxiliary circuits
Low flow process applications
Water softening and purification systems
Laboratory and testing systems
Circulation systems in commercial buildings
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. , KSB offers models of the Etanorm series with all power and speed values, along with pre-sales technical guidance and after-sales support services. It acts with the principle of quality, speed and professionalism.
| Body | : | Iron Casting |
| Strength | : | 0.75 HP - 0.55 KW |
| Transfer | : | 1450 d/d |
