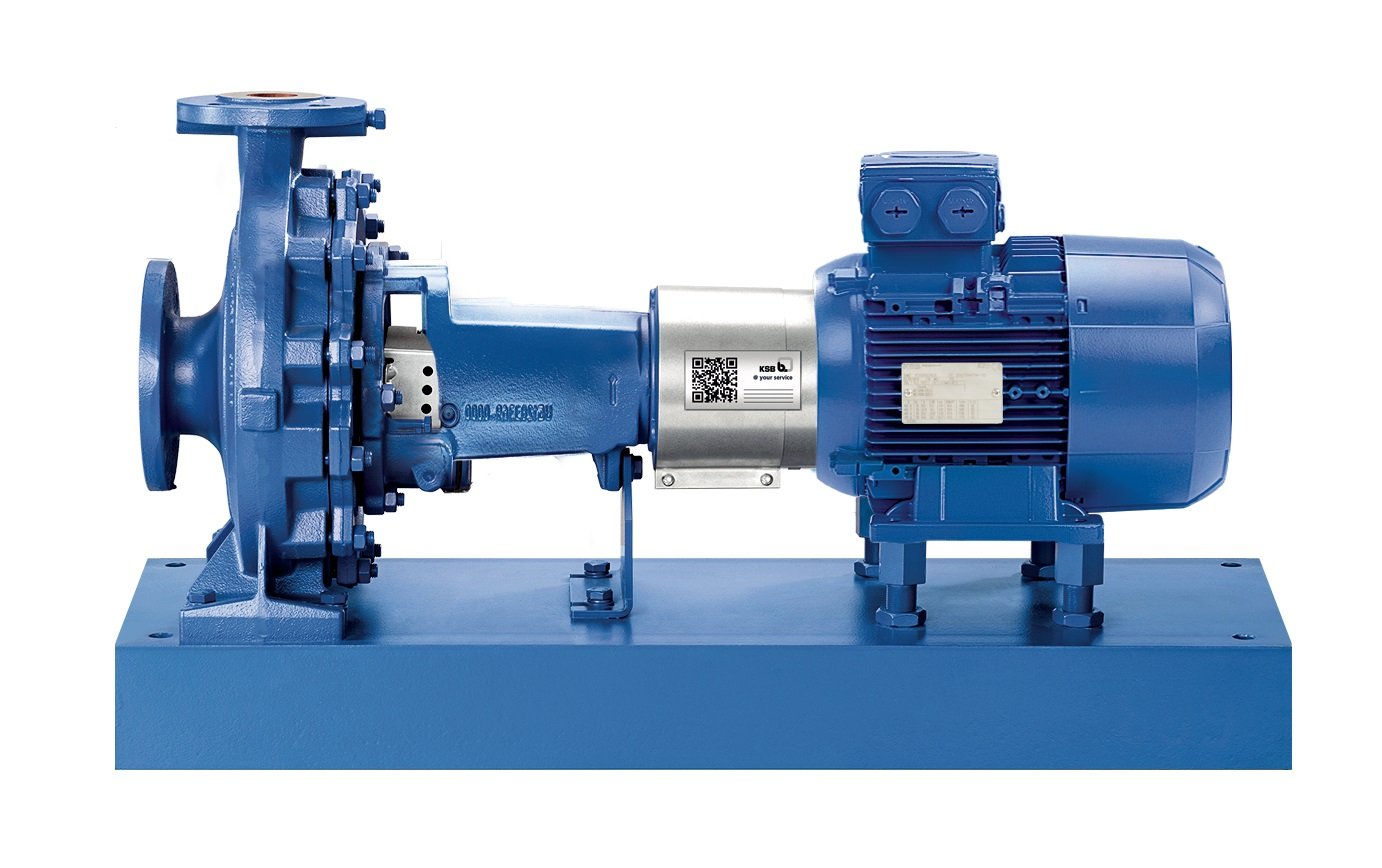

KSB Etanorm 065-040-160 Santrifüj Pompa 7,5 kW 2900 d/d
KSB Etanorm 065-040-160 Centrifugal Pump 7.5 kW | 2900 RPM
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. maintains its leading position in the supply of high quality liquid transfer equipment. The KSB Etanorm 065-040-160/752 GG model in stock is a reliable solution preferred in industrial applications that require high-performance centrifugal pumps. With its long coupling design and back pull-out feature, it provides ease of maintenance and long-lasting use.
Centrifugal Pump Features:
Model: KSB Etanorm 065-040-160/752 GG
Pump Type: Horizontal, single-stage volute casing centrifugal pump
Engine Power: .5 kW
Operating Speed: 0 rpm
Rated Connections: Suction DN65 / Discharge DN
Pump Casing: Grey cast iron (JL1040)
Impeller Material: Tempered steel
Spindle: Grey cast iron JL1040, reinforced with protection sleeve
Sealing: Single mechanical seal (Q1Q1X4GG)
Protection Class: IP
Engine Type: IEC standards KSW engine, 100L frame
Technical Performance:
Transported Fluid: Water
Operating Temperature: °C to +110°C
Ambient Temperature: -10°C to +50°C
Maximum Working Pressure: bar
Maximum Flow Rate (Q): m³/h
Maximum Head (H): mHH
MEI Value: ≥ 0.
Supply Voltage: x 380–480 V AC (%-15 / +10%)
Current: Max. 14.6 A
Weight: ~142.6 kg
Centrifugal Pump Advantages:
EN Compliance with 733 standard
Easy service and maintenance with back pull-out system
Cast iron body and replaceable wear rings
Closed impeller structure with high efficiency
Low energy consumption and quiet operation
Pump + motor set designed for installation on foundation
Centrifugal Pump Usage Areas:
Industrial liquid transfer lines
Heating and cooling circulation systems
Process water applications
Fire systems and building installations
Water purification systems
Food, petrochemical and chemical industry facilities
@ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. offers KSB branded products with technical support and after-sales service advantages and fast delivery from stock. KSB Etanorm series pumps are the ideal solution for professional users looking for performance, reliability and long service life.
| Operating Voltage | : | 380 V AC |
| Body Material | : | Casting |
| RPM | : | 2900 rpm |
| Nominal Diameter (DN) | : | DN 40, DN 80 |
| Maximum Head (H) | : | 36 mSS |
| Flow rate Q : m³/h | : | 64 m³/h |
