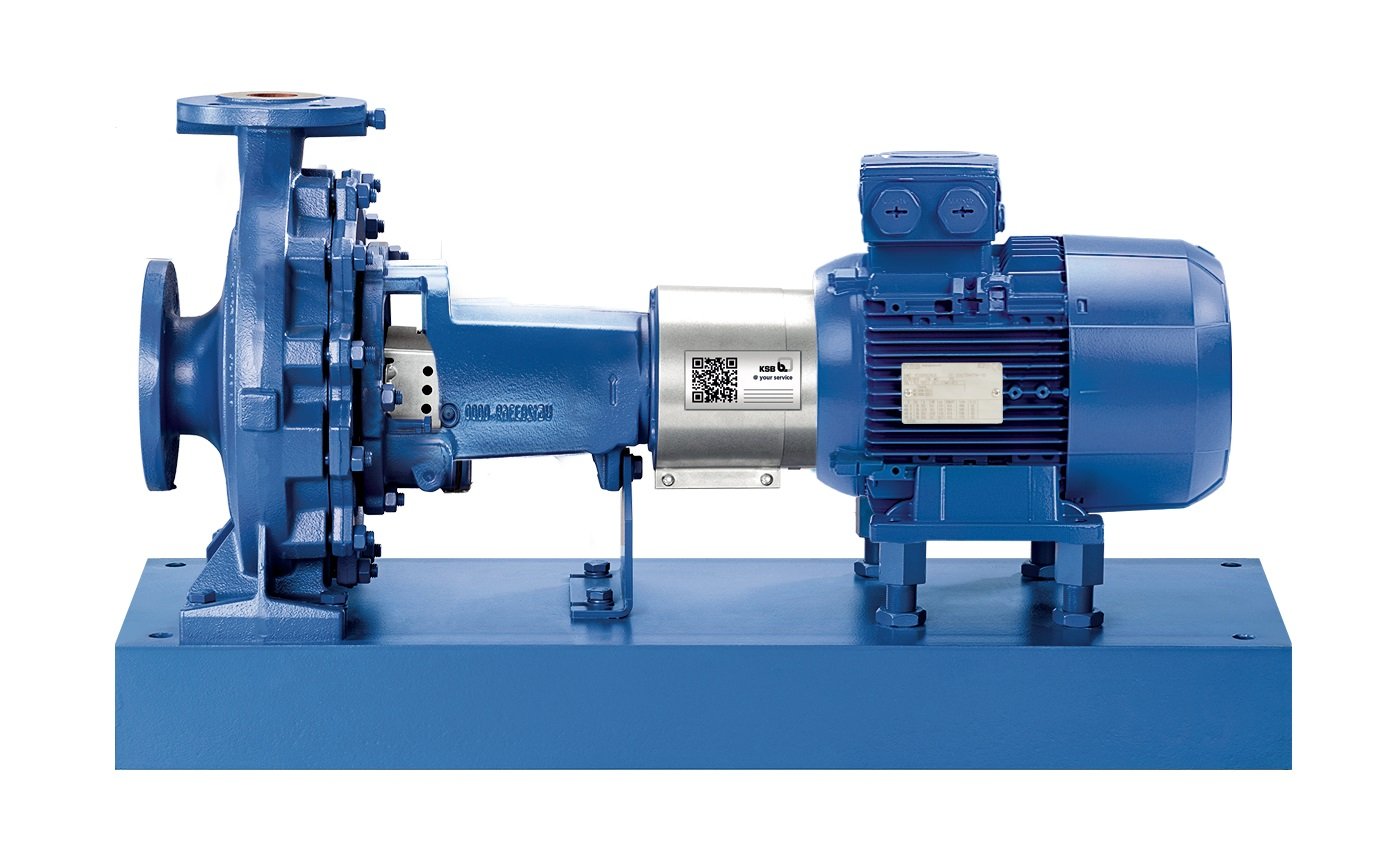

KSB Etanorm 065-040-200 Centrifugal Pump 7.5 kW | 2900 RPM
@ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş . offers the KSB Etanorm 065-040-200/752 GG model centrifugal pump in stock for professionals looking for safe, highly efficient and long-lasting solutions in industrial liquid transfer. EN Designed in accordance with the 733 standard, this horizontal single-stage volute type pump offers a strong and continuous operation structure with its 7.5 kW engine power.
Centrifugal Pump Features:
Model: KSB Etanorm 065-040-200/752 GG
Pump Type: Horizontal, single-stage, volute casing centrifugal pump
Engine Power: .5 kW
Operating Speed: 0 rpm
Suction / Discharge Connections: DN65 / DN
Pump Casing: Gray cast iron JL1
Impeller Material: Steel / tempered steel E335 / C
Spindle Material: JL1040 cast iron with replaceable shaft protection sleeve
Sealing Type: Single mechanical seal (Q1Q1X4GG)
Protection Class: IP
Engine Type: KSW – IEC standard, 132S body
Centrifugal Pump Technical Information:
Fluid: Water
Fluid Temperature: °C to +110°C
Ambient Temperature: -10°C to +50°C
Maximum Working Pressure: bar
Maximum Flow Rate (Q): m³/h
Maximum Head (H): mHH
Operating Voltage: x 380 – 480 V AC (%-15 / +10%)
MEI Value: ≥ 0.
Rated Current: Max. 14.6 A
Weight: ~156.4 kg
Centrifugal Pump Structural Features and Advantages:
Back Pull-Out Design: The motor, bearings and impeller unit can be easily disassembled without removing the pump body from the pipes
High Efficiency Closed Type Impeller: Multi-curved blade structure for maximum hydraulic efficiency
Replaceable Wear Rings: Cast iron / DPAF with sealing plate on suction and discharge sides
Seal Area Shaft Protection Sleeve: Long-lasting sealing and shaft protection
Centrifugal Pump Usage Areas:
Industrial process water transfer
Heating and cooling circuits
Fire pump systems
Food, chemical, petrochemical facilities
Water treatment plants
General building and infrastructure installations
@ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. brings KSB's Etanorm series to your professional projects with the advantages of technical support, after-sales service and fast delivery. Each pump set comes ready for installation with motor and pump combined on the base plate.
| Özellik | Değer | |
|---|---|---|
| Power (P) | : | 10 HP - 7.5 KW |
| Body Material | : | Casting |
| RPM | : | 2900 rpm |
