KSB Etanorm 080-065-250 Centrifugal Pump 4 kW 1450 rpm
0 - Comment / Read Comments

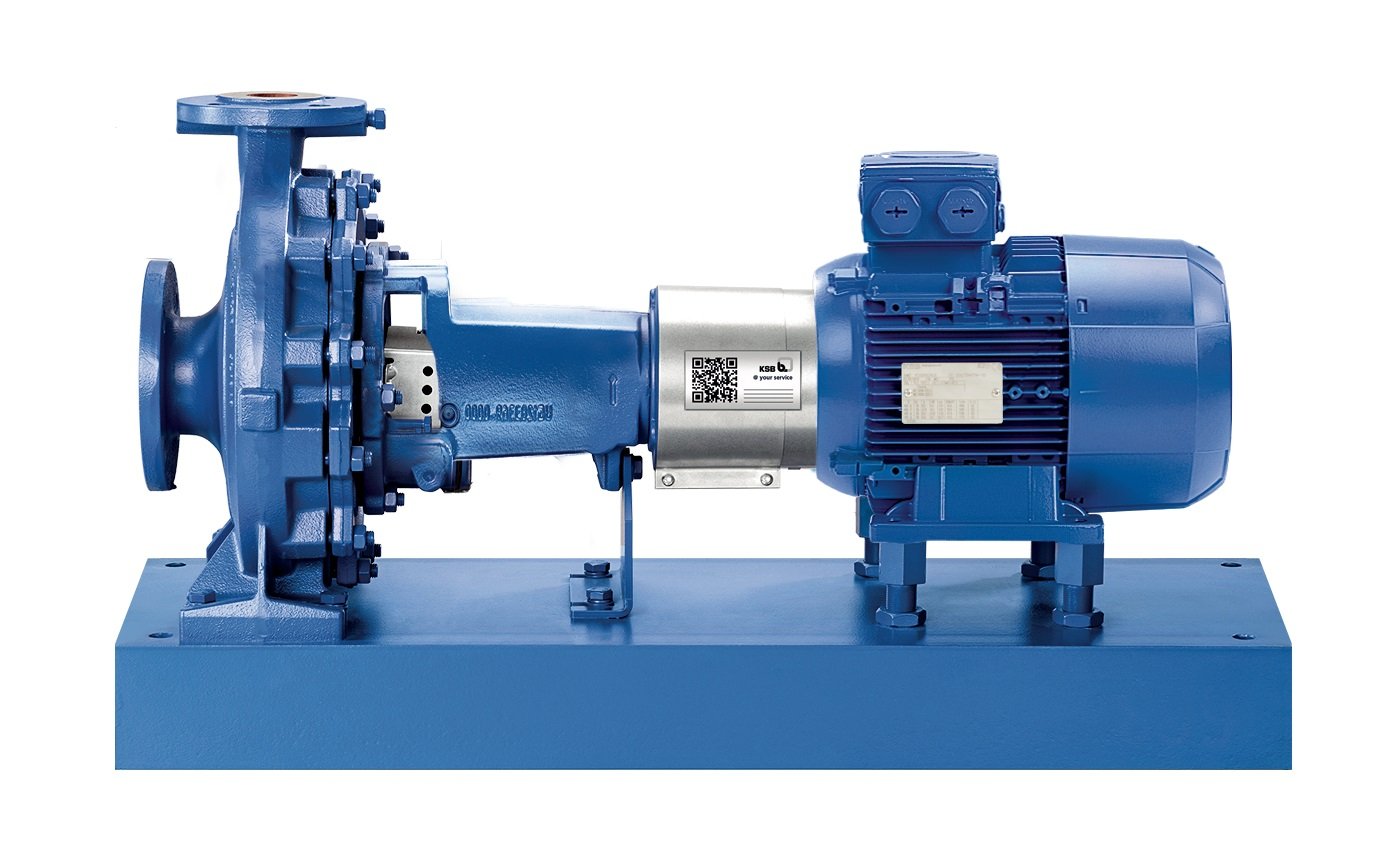

KSB Etanorm 080-065-250/404 GG Centrifugal Pump | 4 kW – 1450 rpm | IP55 – IE3 Engine
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. offers the KSB Etanorm 080-065-250/404 GG Centrifugal Pump model in stock for users looking for high performance and reliability in industrial fluid transfer. This horizontal single-stage centrifugal pump was developed in accordance with the EN733 standard. It stands out in its sector with its quiet operation, high efficiency, easy maintenance and long-lasting structure.
Thanks to the pump's radial split body structure and back pull-out design, the Centrifugal Pump can be maintained without leaving the line. IE3 energy class WEG motor ensures sustainable operations with low energy consumption.
Centrifugal Pump Technical Specifications
Model: Etanorm 080-065-250/404 GG
Manufacturer: KSB
Pump Type: Horizontal, single stage, volute casing
Energy Class: IE
Engine Power: kW
RPM: – 1450 rpm
Maximum Flow Rate (Q): m³/h
Maximum Head (H): mSS
Engine Brand: WEG
Motor Frame: M
Maximum Current: .6 A
Protection Class: IP
Voltage Range: x 380 V AC -15% / 480 V AC +10%
MEI Value: ≥ 0.
Body Material: Gray cast iron JL1
Impeller Material: Steel/hardened steel E335 / C
Shaft Material: JL1
Shaft Protection Sleeve: Replaceable
Seal Type: Conical cover mechanical seal with code Q1Q1X4GG
Wear Rings: Suction – DPAF, Discharge – GG casting
Operating Temperature: °C to +110 °C
Ambient Temperature: -10 °C to +50 °C
Maximum Working Pressure: ≤ 16 bar
Intake Flange: DN
Discharge Flange: DN
Mounting: Centrifugal Pump + motor set with base plate
Approximate Weight: .7 kg
Centrifugal Pump Usage Areas
Industrial water supply
HVAC systems (heating – cooling – ventilation)
Fire extinguishing systems
Agricultural irrigation systems
Water treatment and recovery facilities
Food, chemical, paper and textile industries
Energy and process engineering applications
KSB Etanorm 080-065-250/404 GG Centrifugal Pump is a highly efficient and long-lasting solution for industrial water transfer with its 4 kW power and 1450 rpm speed. Thanks to its gray cast iron body structure, replaceable wear rings and IE3 class energy-saving WEG engine, it can be used safely in many applications from HVAC systems to process lines. It offers the advantage of easy maintenance with its compliance with EN 733 standard and back pull-out design. ORFA It is the ideal choice for safe and sustainable fluid management with industrial assurance.
| Body | : | Iron Casting |
| Strength | : | 5.5 HP - 4 KW |
| Transfer | : | 1450 d/d |
