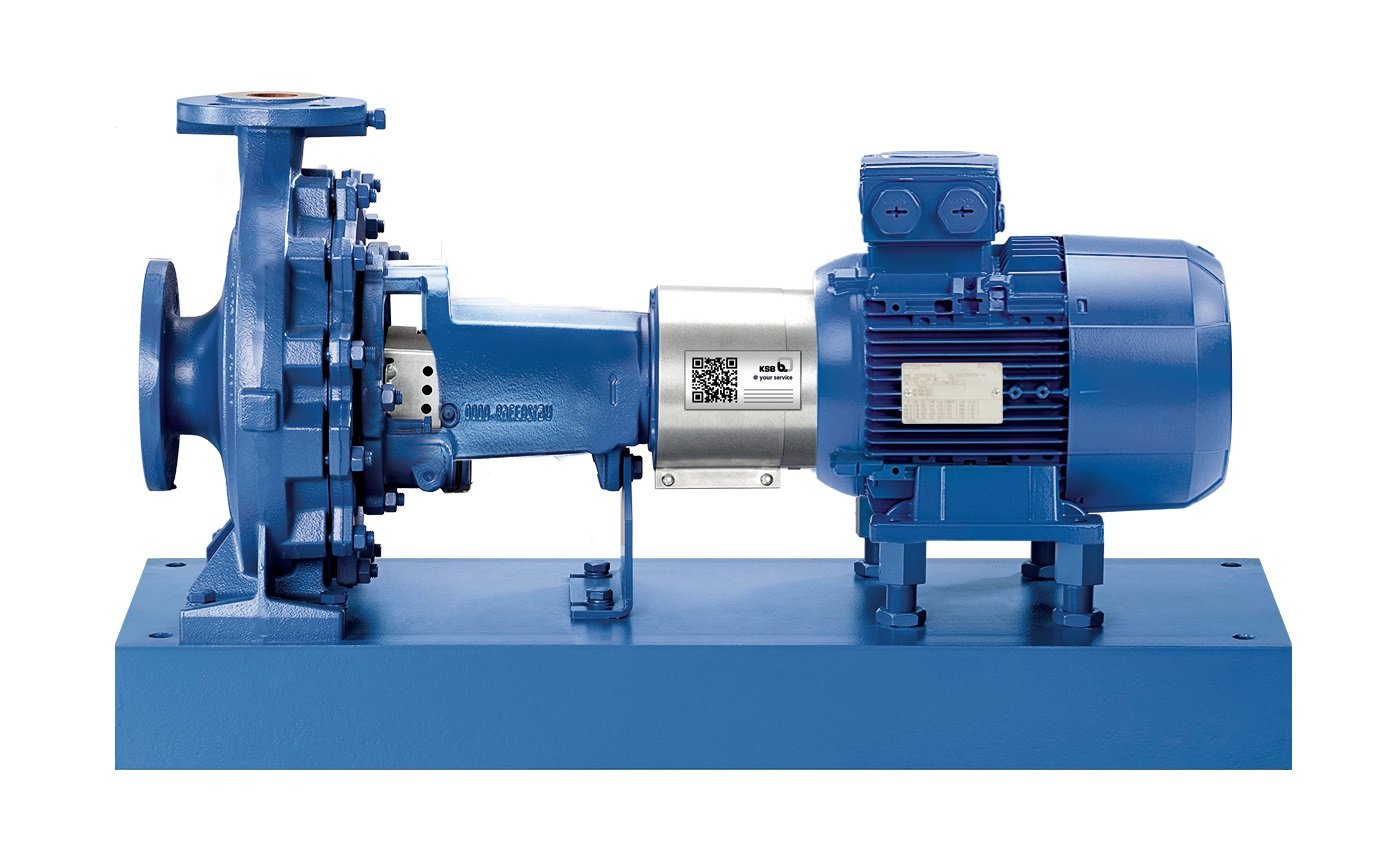

KSB Etanorm 100-080-250 Santrifüj Pompa 37 kW 2900 d/d
KSB Etanorm 100-080-250/3702 GG Centrifugal Pump | 37 kW | 2900 rpm
@ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. keeps the KSB Etanorm 100-080-250/3702 GG Centrifugal Pump model in stock for industrial facilities seeking high efficiency and long life. This powerful centrifugal pump is an ideal solution, especially for water transfer, heating/cooling systems and process applications.
The Etanorm series, which has a horizontal, single-stage volute pump structure, is designed in accordance with the DIN EN 733 standard. Thanks to its retractable (back pull-out) design, maintenance can be performed without removing the pump body from the pipeline. This ensures uninterrupted business continuity.
Specification
Pump Type: Horizontal, single-stage volute pump
Model: KSB Etanorm 100-080-250/3702 GG
Engine Power: kW
Speed Speed: 0 rpm
Maximum Flow Rate (Q): m³/h
Maximum Head (H): mHH
Liquid Type: Water Fluid Temperature: °C – 110 °C
Operating Pressure: ≤ 16 bar
Operating Environment Temperature: -10 °C – +50 °C
Protection Class: IP
Energy Efficiency: MEI ≥ 0.
Motor Voltage: x 380 V AC -15% ~ 480 V AC +10%
Engine Type: KSB IEC 160L
Maximum Current: .7 A
Centrifugal Pump Material Information:
Body: Grey cast iron JL1
Impeller: Steel / Tempered steel E335 / C
Shaft: JL1
Sealing: Single mechanical seal Q1Q1X4GG
Suction and discharge wear rings: GG / DPAF (asbestos-free)
Mounting Type: Full set (pump + motor) on base plate
Weight: Approximately 432.1 kg
Centrifugal Pump Usage Areas
Industrial water transfer systems
Process cooling and heating circuits
Fire fighting systems
Building service systems (HVAC)
Purification and circulation lines
Pressurization stations
KSB Etanorm 100-080-250 Centrifugal Pump makes a difference in industrial liquid transfer solutions with its high efficiency, durability and ease of maintenance. It offers uninterrupted performance even under difficult process conditions with its 37 kW engine and 2900 rpm speed.
Thanks to its retractable (back pull-out) design, it provides quick intervention and easy maintenance during operation. High quality cast body, tempered steel impeller and mechanical seal structure promise long-lasting use. It can be safely preferred in water, process fluid and HVAC applications.
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş . This Centrifugal Pump, offered with assurance, allows you to reach safe, efficient and sustainable pump solutions in your industrial facilities.
| Operating Voltage | : | 380 V AC |
| Body Material | : | Casting |
| RPM | : | 2900 rpm |
| Nominal Diameter (DN) | : | DN 100 |
| Maximum Head (H) | : | 60Mss |
