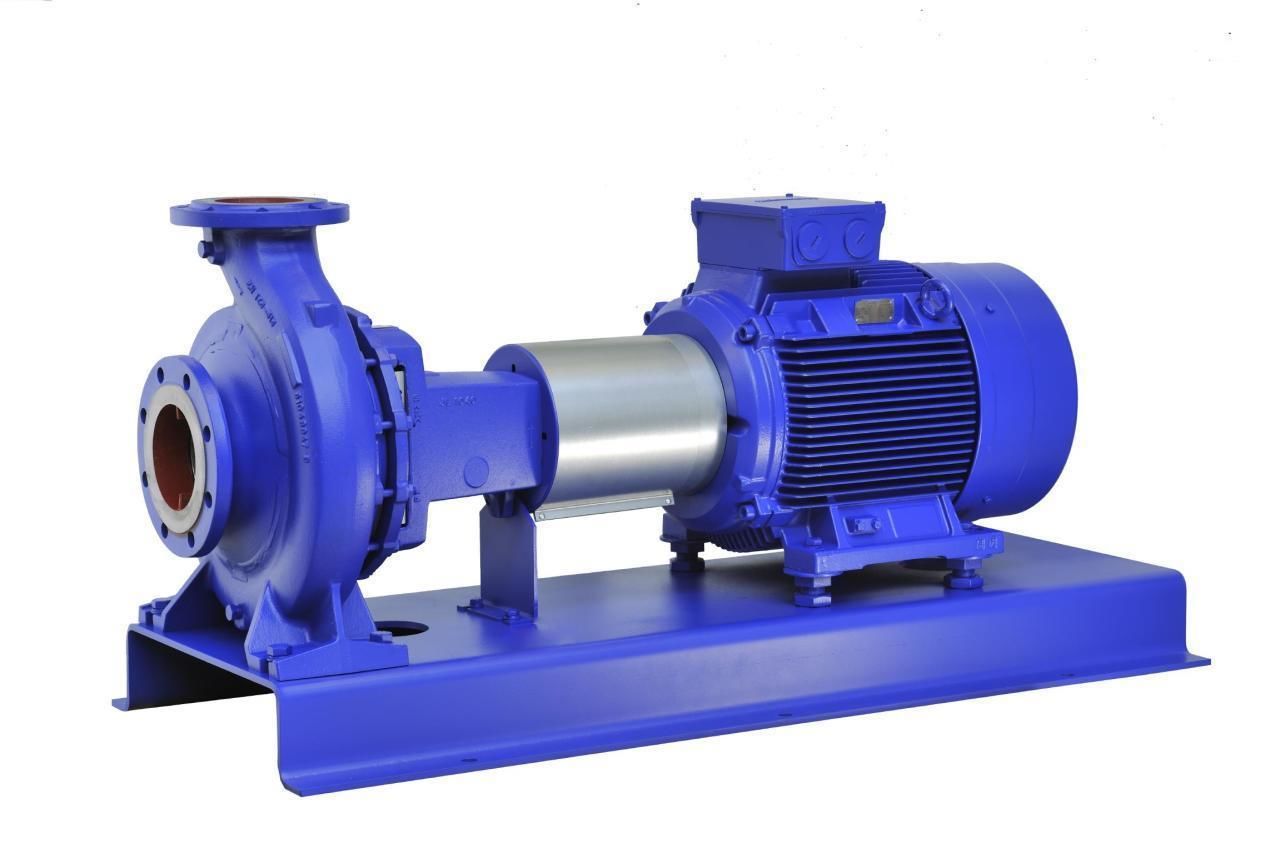

KSB Yatay Santrifüj Pompa Meganorm 80-250 75 KW
%55 Discounted Product
0 - Comment / Read Comments
17.718,20 USD
7.973,19 USD
Category
Brand
Stock Code
02443
Warranty Period
24 Month
Price
14.765,17 USD + VAT
* Installments starting from 1.506,40 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
The KSB Meganorm centrifugal pump is suitable for pumping water and clear or turbid liquids in the following applications:
-Supplying water
- Drainage
- Irrigation
- Sugar and alcohol industry
- Air-conditioned
- Facility installations
- Fire extinguishing
General description
Horizontal application, single stage, simple horizontal suction and tension in vertical position for the upper part.
“Pull-back” construction allows maintenance and repair services for the rear section without the need for shaving or aligning and securing the pipes
Dimensionally made according to DIN 24256 / ISO 2858 and mechanically according to ANSIB73.1.
Operation Data
- Sizes - DN 25 to 150
-Flow rate - up to 700 m³/hour
- Head - at 140 m
- Temperature up to -105 °C
- Speed - up to 3500 rpm
Technical specifications
Body:
- The spiral is horizontal, made of one-piece casting and supported by its own feet. There is a wear ring on the suction side.
rotor:
- Radial type, old and simple suction. There is a wear ring on the pressure side.
Sealing
Safety is achieved by a box or mechanical seal. A pump installed with a mechanical seal should not pump liquids containing suspended solids.
- Environmental speed
- When determining the operating speed of the pump, in addition to the maximum boost pressure, it must always be verified whether the rotor material is sufficient in terms of peripheral speed, observing the following limits:
| Voltage | : | 380 Volt |
| Strength | : | 100 HP - 75 KW |
| Transfer | : | 2900 d/d |
