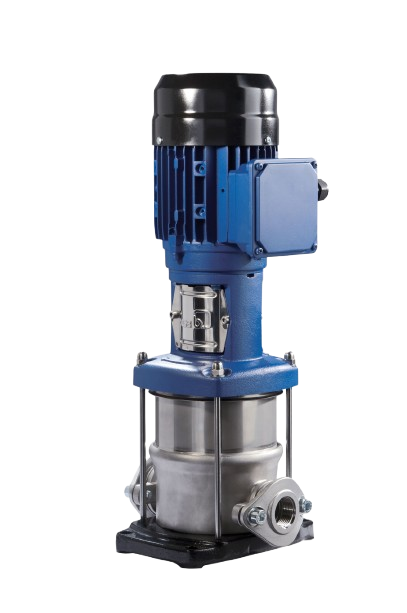

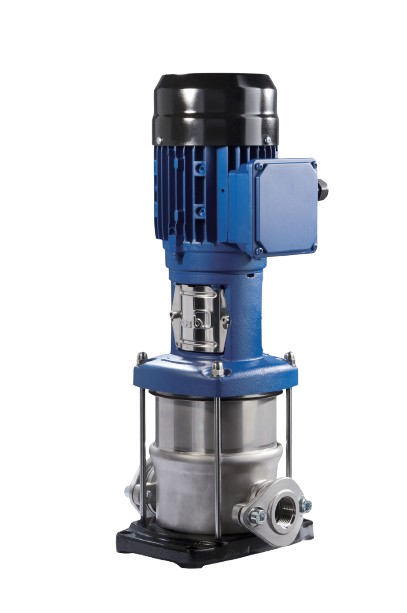

KSB Movitec V 15/9 C Dikey Kademeli Pompa 2900 d/d
KSB Movitec V 15/9 C Vertical Multistage Pump 2900 rpm
High Pressure Compact Pumping Solution with ORFA Industrial Assurance
In industrial applications requiring high discharge head, the preferred vertical multistage pump, this product from the Movitec V 15/9 C model by KSB with reliable engineering can be easily integrated into tight technical spaces thanks to its compact design. Designed with a vertical shaft configuration, this vertical multistage pump delivers maximum pressure without power loss at 2900 rpm, while also playing a leading role in energy efficiency. With a motor power of 11 kW, this vertical multistage pump is widely used for process water transfer, circulation lines, pressure boosting systems, and water treatment plants. Made of stainless steel, the vertical multistage pump exhibits full chemical resistance to liquids carrying chemicals, clean water, and cooling systems with heat exchangers. Equipped with a mechanical seal, the professional vertical multistage pump offers a leak-free and long-lasting operating experience. With a 400/690 Volt three-phase supply, this vertical multistage pump is compatible with standard industrial networks and delivers stable performance at 50 Hz frequency. This vertical multistage pump, available from ORFA Industrial stock, is an ideal and cost-effective solution for low-flow applications requiring high head. Thanks to its multistage design, the vertical multistage pump can achieve discharge heights of 60 meters and more with a single pump unit. Installation of this vertical multistage pump is easy with standard flange connections, and it is used reliably in washing systems, HVAC cycles, and pressure boosting panels. Each individual vertical multistage pump unit undergoes a quality control process in accordance with ISO and EN standards before shipment. When your installation needs high discharge performance, ensure reliable pumping at industrial standards with the KSB Movitec V 15/9 C vertical multistage pump.
Vertical Multistage Pump Technical Specifications Details
Performance Data (Flow / Head)
| Flow (m³/h) | 0.00 | 0.50 | 1.00 | 1.50 | 2.00 | 2.50 |
|---|---|---|---|---|---|---|
| Head (m) | 62 | 60 | 56 | 48 | 36 | 20 |
Key Advantages of Vertical Multistage Pump
- High Head Capacity: Vertical multistage pump providing head over 60 meters thanks to multistage design.
- Compact Design: Vertical multistage pump allowing installation in tight technical spaces with vertical shaft configuration.
- Energy Efficient: Vertical multistage pump with IE3 motor provides significant operational cost savings.
- Stainless Construction: Vertical multistage pump with high corrosion resistance from AISI 304/316 materials.
Application Areas of Vertical Multistage Pump
- Vertical multistage pump for process water transfer and high head circulation lines.
- Industrial vertical multistage pump for pressure boosting systems and hydrofor panels.
- Vertical multistage pump in water treatment, filtration units, and HVAC cycles.
- Vertical multistage pump in chemical process applications and clean water supply systems.
Vertical Multistage Pump Technical Support and Supply
For KSB vertical multistage pump installation, spare parts and technical support, contact the expert team of ORFA Industrial.
Successfully meet high-pressure pumping requirements and maximize industrial efficiency with KSB Movitec V 15/9 C Vertical Multistage Pump solutions.
| Operating Voltage | : | 380 V AC |
| Power (P) | : | 15 HP - 11 KW |
| Body Material | : | Stainless |
| RPM | : | 2900 rpm |
