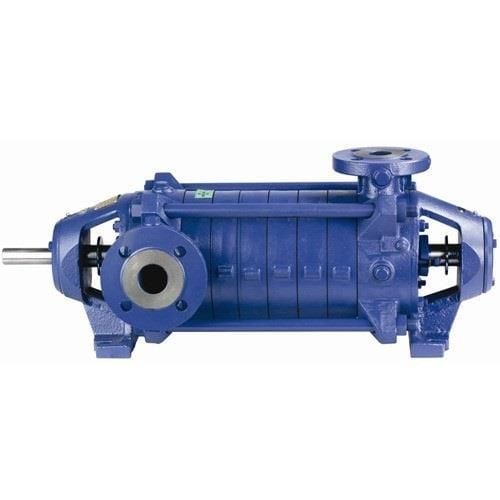

KSB WKL 40/7 Yatay Kademeli Pompa Gövdesi
KSB WKL 40/7 Horizontal Stage Pump Body Ø135mm Impeller Diameter
The KSB WKL 40/7 Horizontal Multistage Pump Body, offered to you with the ORFA Industrial guarantee, is an ideal solution for industrial and commercial applications. Its Ø135mm impeller diameter, high-quality cast steel, and multi-stage design provide high efficiency and performance in water supply, pressure boosting, and HVAC systems. This pump body offers long life, low maintenance, and flexibility for various pressure/capacity requirements.
The KSB WKL 40/7 Horizontal Multistage Pump Body, offered to you with the ORFA Industrial guarantee, is an ideal solution for industrial and commercial applications. Its Ø135mm impeller diameter, high-quality cast steel, and multi-stage design provide high efficiency and performance in water supply, pressure boosting, and HVAC systems. This pump body offers long life, low maintenance, and flexibility for various pressure/capacity requirements.
Horizontal Multistage Pump Features:
- Horizontal, Multistage Design: Horizontal Multistage Pump Compact structure and high efficiency.
- Ø135mm Impeller Diameter: Horizontal Multistage Pump High performance and wide application area.
- High Quality Cast Steel: Horizontal Multistage Pump provides durability and long life.
- Multi-Stage Structure: Horizontal Stage Pump Meets different pressure and capacity needs.
- Wide Application Range: Horizontal Stage Pump Water supply, pressure boosting, HVAC systems and more.
- High Efficiency: Horizontal Stage Pump provides energy savings with its optimized impeller design.
- Flexible Use: Compatible with various fluid types and pressure levels.
- Reduced Maintenance Needs: Long-lasting parts and easy maintenance.
- 7 Stage: Provides high head (up to 185 meters).
- 28.6 m³/h Maximum Flow: High flow capacity.
- DN50 Suction Port / DN40 Discharge Port: Compatible with standard pipelines.
- PN16 Suction Pressure / PN25 Discharge Pressure: Meets different pressure requirements.
- 135mm Impeller Diameter: Designed for optimum performance.
- 2970 rpm Speed: Provides high efficiency.
Advantages:
High Efficiency: Maximum energy efficiency with optimized impeller design.
Flexible Use: Compatible with various fluid types and pressure levels.
Durability: High-quality materials, resistant to heavy-duty use.
Reduced Maintenance Needs: Long-life parts and low maintenance requirements.
Application Areas:
* All types of water supply
* Hot water
* Hot water
* Fire extinguishing
* Cooling water
* Cooling water
* Sprinkler - agriculture
* Sea water
* Sea water
* Boiler feed water
* Pool water
* Pool water
* Drinking water
* Slightly polluted waters
* Slightly polluted waters
Business Information
Suction Mouth Size: 50 mm
Discharge Port Dimension: 40 mm
Design Construction
Horizontal positioned, single or multi-stage in modular sliced structure form
with shaft protection bushes. Settings are made with the input and output housings.
is a piece.
Where to Buy:
You can purchase this KSB WKL 40/7 horizontal multistage bare pump via the website of ORFA Industrial Products Industry and Trade Inc.
| Body Material | : | Cast Steel |
| RPM | : | 2900 rpm |
| Nominal Diameter (DN) | : | DN 40, DN 50 |
| Maximum Head (H) | : | 185 mSS |
