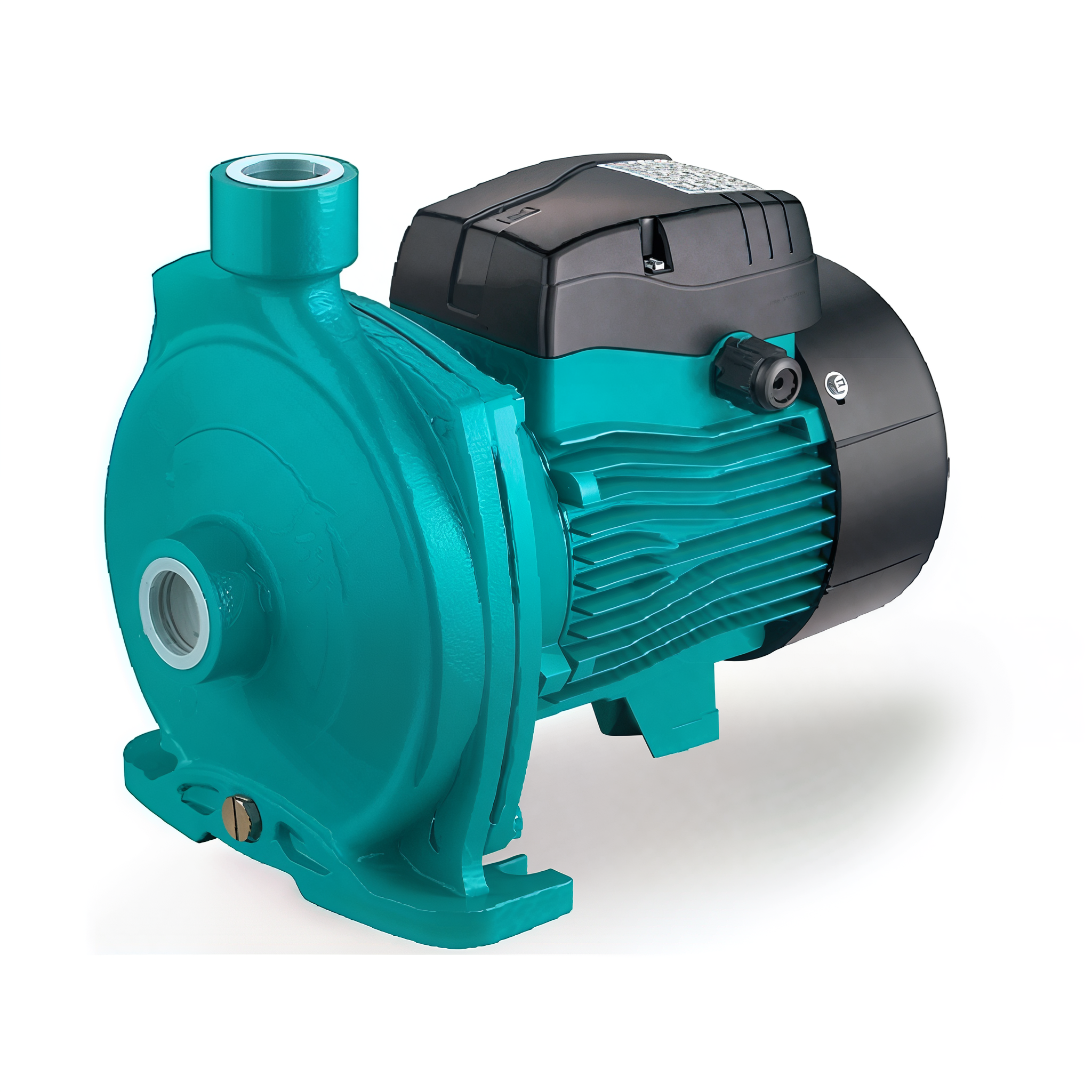

LEO AC110 Casting Body Centrifugal Pump 1.1 KW 1.5 HP

LEO AC110 Casting Body Centrifugal Pump 1.1 KW 1.5 HP

LEO AC110 Cast Body Centrifugal Pump 1.1 kW - 1.5 HP Durable Structure and High Performance Provides long-lasting and reliable water transfer. With its 1.1 kW (1.5 HP) engine power, 20 – 40 m head and 0 – 120 L/min (0 – 7.2 m³/h) flow capacity, it is an ideal solution especially for building water supply systems, irrigation, industrial process lines and booster applications. It shows high performance even in the most challenging conditions thanks to its compact and robust body, ease of maintenance and energy efficiency.

Centrifugal Pump Working Principle Centrifugal pumps provide centrifugal force to the fluid thanks to the impeller rotated by an electric motor. implements. In this way, the fluid is sucked from the inlet and transmitted to the outside at high pressure from the outlet. AC110 model is a pump type suitable for continuous operation with its low noise level and stable performance.

Technical Specifications

Model:

AC

Energy Supply: V / 50Hz (three-phase)

Motor Power: .1 kW (1.5 HP)

Inlet Diameter: .25"

Outlet Diameter: "

Flow Rate (Q) casting Impeller:

Metal alloy Working Environment:

Clean water Cooling:

Air cooled engine Centrifugal Pump Usage Areas

Indoor booster systems Irrigation and agricultural water systems

Industrial process lines Heating and cooling circuits

Water purification and filtration systems Pump stations

LEO AC110 Casting Body Centrifugal Pump

, with its 1.1 kW (1.5 HP) engine power, 20 – 40 m head and 0 – 120 L/min flow capacity, provides a powerful, efficient and durable water transfer in industrial and commercial systems. The solution is (m³/h)

Q (L/min)

H (m)

.

. . .

.	.	.	.	.	.
.	.	Flow Q (m³/h) Head H (m)	0	0	40
			0.6	10	39
			0.9	15	38
			1.2	20	38
			1.8	30	37.5
			2.4	40	37
			3.0	50	36
			3.6	60	35
			4.2	70	33
			4.5	75	32
			4.8	80	31
			5.4	90	29
			6.0	100	26
			6.6	110	23
			7.2	120	20

Debi Q (m³/h) Basma Yüksekliği H (m)

Operating Voltage	:	380 V AC
Power (P)	:	1.5 HP - 1.1 KW
Thread Size	:	1'', 1 1/4''
