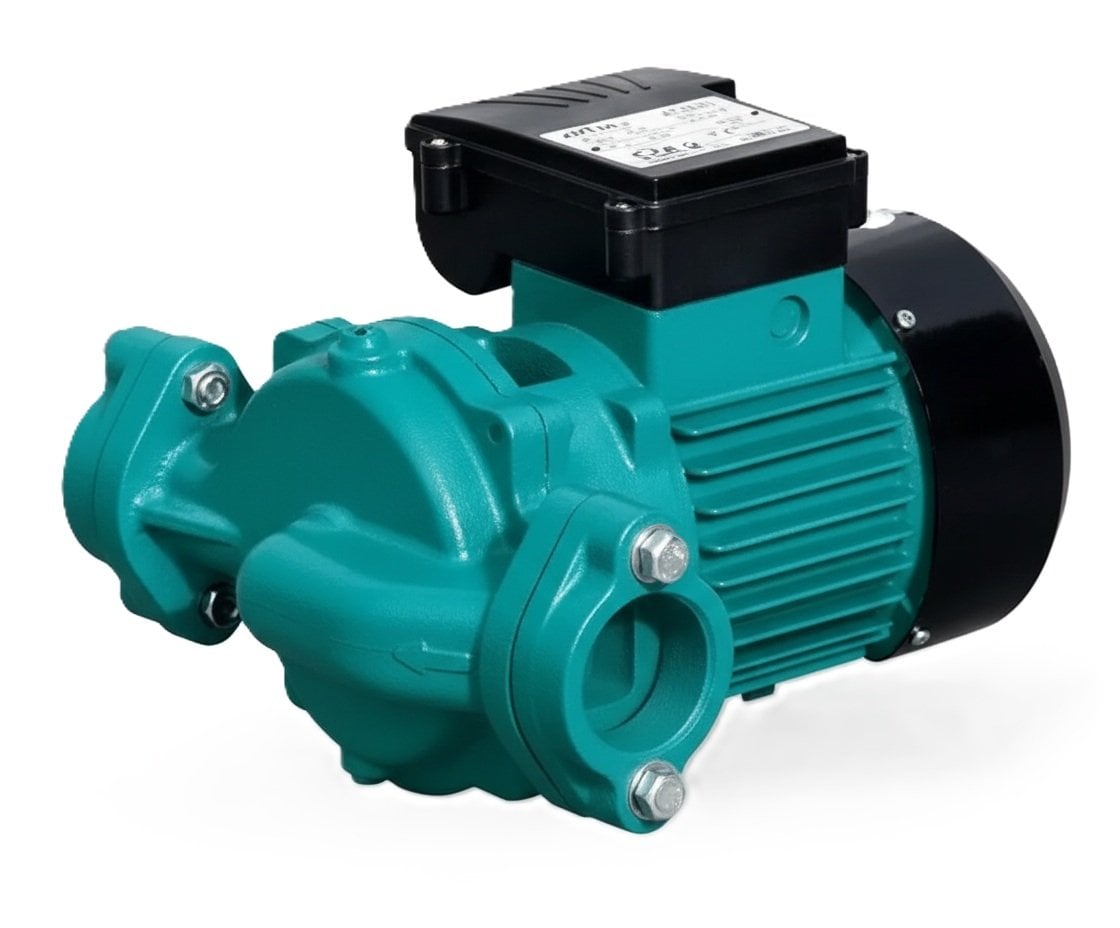

LEO LPM550 Dry Rotor Circulation Pump
Quiet and Efficient Heating Automation with ORFA Industrial Assurance
Located at the heart of modern building systems, the circulation pump plays a critical role in heating, cooling, and HVAC installations. Manufactured with the most advanced technology of the LEO brand, this LPM550 circulation pump operates on the dry rotor principle, with no direct contact between the motor shaft and the pump shaft, ensuring extremely quiet operation. Combining comfort and efficiency, the LPM550 circulation pump has a power of 550 Watts and operates at 220 Volts single-phase, allowing seamless integration into standard electrical systems. With a maximum flow rate of 19.98 cubic meters per hour and a head of 19 meters, this circulation pump is designed for effective management of heating and cooling cycles in medium and large buildings. Manufactured with a cast iron body and a plastic impeller, this circulation pump offers long life and reliable performance. Offered by ORFA Industrial, this circulation pump is a leading product for the installation sector in Turkey. Maximizing energy efficiency, this circulation pump can be used in a wide range of applications—from underfloor heating (radiant systems) to classic heating panel applications. With a standard connection diameter of 2 inches, this circulation pump adapts seamlessly to existing installations. Thanks to its quiet operation, this circulation pump raises the comfort standard in offices, hospitals, hotels, and residential projects, serving cooling units in summer and boiler rooms in winter. With mechanical seal technology, this circulation pump maintains a long service life even when working with high-temperature liquids. By choosing the LEO LPM550 circulation pump for your project, you will reduce energy costs while keeping noise levels under control.
Circulation Pump Technical Specifications
Performance Data (Flow / Head)
| Flow (m³/h) | 0.00 | 5.00 | 9.99 | 14.99 | 19.98 |
|---|---|---|---|---|---|
| Head (m) | 19.0 | 18.5 | 16.2 | 10.8 | 2.0 |
Circulation Pump Key Advantages
- Quiet Operation: Thanks to the dry rotor design, this circulation pump provides noiseless operation below 68 dB.
- High Efficiency: With optimized hydraulic geometry, this circulation pump offers IE2 class energy savings.
- Long Life: Minimizing mechanical wear, this circulation pump offers a service life exceeding 10,000 hours.
- Easy Maintenance: With easy access to the seal system, this circulation pump allows quick periodic maintenance.
Circulation Pump Application Areas
- For central heating systems and boiler rooms, this circulation pump is an ideal solution.
- In radiant (underfloor heating) and HVAC circuits, this circulation pump ensures efficient circulation.
- In cooling towers and chiller systems, this circulation pump maintains constant flow.
- In hotels, hospitals, offices, and residential projects, this circulation pump creates a comfortable environment.
Circulation Pump Technical Support and Supply
For installation, calibration, and spare parts for LEO circulation pump, you can contact the expert team of ORFA Industrial. Technical consultancy and emergency service are available 24/7.
With the LEO LPM550 circulation pump, save energy, create a quiet environment, and guarantee long-lasting system performance.
| Operating Voltage | : | 220 V AC |
| Power (P) | : | 0.75 HP - 0.55 KW |
| Body Material | : | Casting |
| Thread Size | : | 2'' |
| Nominal Diameter (DN) | : | DN 50 |
| Maximum Head (H) | : | 19 mSS |
| Flow rate Q : m³/h | : | 19.98 m³/h |
