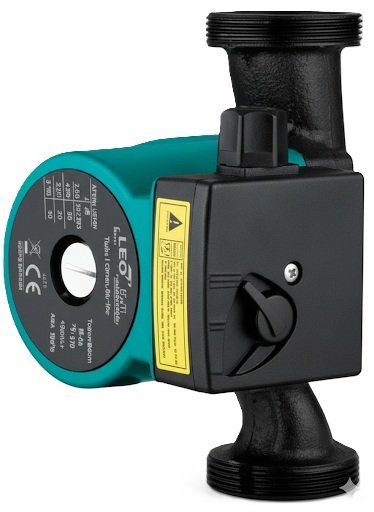

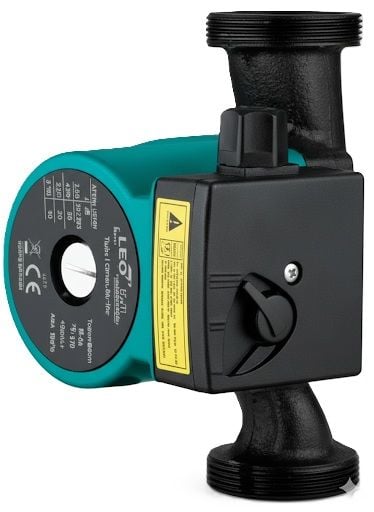

Leo LRP 32-50/180 Circulation Pump

Leo LRP 32-50/180 Circulation Pump: Reliable Circulation in Heating and Cooling Systems

Circulation pumps are used to circulate water within pipelines in heating, cooling, and hot water systems. The Leo LRP 32-50/180 Circulation Pump is a cast-iron, three-speed circulation pump that performs this task with high efficiency and reliability.

What is the Leo LRP 32-50/180 Circulation Pump?

LRP series circulator pumps are wet rotor centrifugal pumps. Wet rotor design means that the motor and rotor are submerged in the pumped liquid and cooled by the liquid itself. This design eliminates the need for an external fan or shaft seal, resulting in extremely quiet and maintenance-free operation.

Circulation Pump Technical Specifications:

• Model: LRP32 50/180

• Voltage/Frequency: 220V/50Hz

• Power: 85W

• Inlet/Outlet Diameter: 32 mm

• Connection Size: 2"

• Maximum Height (Press Height): 4.5 Mss

• Maximum Flow: 3.5 m³/h

• Flow Capacity (lt/min): 60/47/32

Leo LRP 32-50/180 Circulation Pump Features and Advantages:

• Three Speed Levels: The circulation pump can be operated at three different speeds : 60 L/min, 47 L/min, and 32 L/min, using a switch located on the pump. This provides flexibility in adjusting power consumption according to the flow and head requirements of the installation.

• Cast Iron Body: The pump body is made of cast iron , the impeller is made of composite (polypropylene) , and the shaft is made of ceramic . This combination of materials increases the pump's resistance to corrosion, scaling, and abrasion, ensuring long-lasting use.

• Quiet and Maintenance-Free Operation: Thanks to its wet rotor design, it operates extremely quietly and does not require external lubrication or periodic maintenance.

• Easy Installation: Thanks to its flanged connection (DN32), it can be easily integrated into pipelines. The distance between the pump's two flanges (face-to-face measurement) is 180 mm .

• Low Energy Consumption: Provides energy savings thanks to its adjustment levels and 85 W power.

• Durability: It has internal thermal protection.

Leo LRP 32-50/180 Circulation Pump Usage Areas:

• Central Heating Systems: Circulation of hot water to radiators in boiler rooms.

• Individual Heating Systems: Combi boiler or floor heating systems.

• Underfloor Heating Systems: Circulation of water in underfloor heating lines.

• Air Conditioning and Cooling Systems: In closed circuit cooling systems.

• Solar Energy Systems: Circulation of heated water from solar panels.

• Hot Water Circulation Systems: Systems that ensure that hot water reaches the taps instantly in the domestic water lines.
