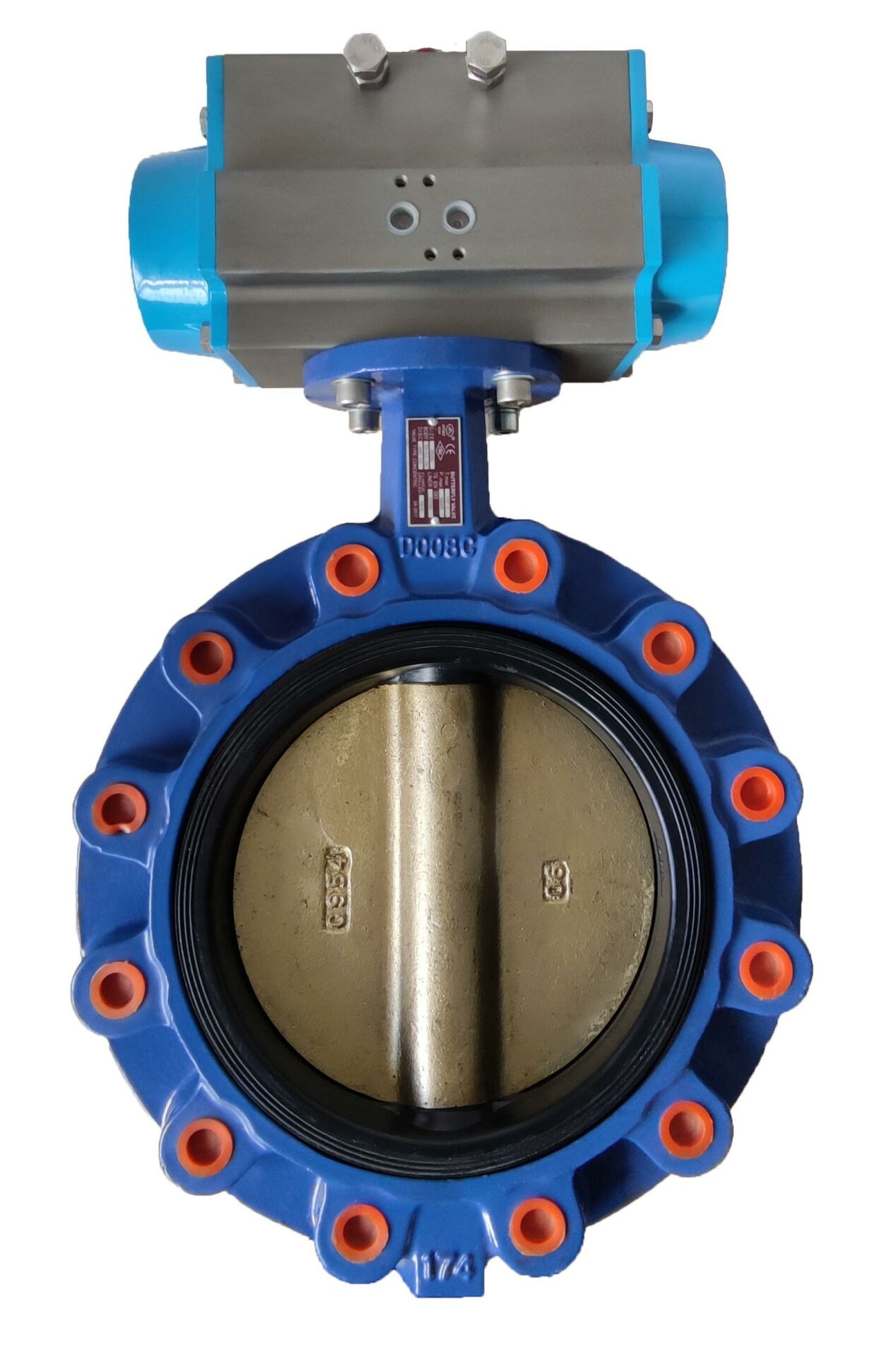

Lug Type Pneumatic Actuated Butterfly Valve KV-18
0 - Comment / Read Comments
Brand
Stock Code
708030522030ÇEA-300
Lug Type Double Acting Pneumatic Actuated Butterfly Valve
At ORFA Industrial Products Industry and Trade Inc. , we are proud to offer our customers our Lug-Type Double-Acting Pneumatic Actuated Butterfly Valves, which offer efficiency and reliability in industrial applications. These butterfly valves help optimize industrial processes with their high-performance shut-off and control functionality.
Lug-type, double-acting, pneumatic-actuated butterfly valves are designed for applications requiring high closing torque and fast opening-closing times. The valves are designed for mounting between DIN-standard flanges and are equipped with a double-acting pneumatic actuator, which operates using air pressure for both opening and closing.
Butterfly Valve Technical Information:
Body: GGG-40.3 Ductile Iron
Valve: Aluminum Bronze
Shaft: AISI 420 Stainless Steel
Gasket: NBR
Max. Operating Temperature: 90 ºC
Working Pressure: PN16 (DN 40-300) / PN10 (DN 350-600)
Flange Pressure Class: PN16
Connections: Lug Type
Working Principle of Lug Type Double Acting Pneumatic Actuated Butterfly Valve
A lug-type, double-acting, pneumatic-actuated butterfly valve is a type of valve designed to control flow in industrial systems. The valve is installed in a pipeline and operates by rotating a disc to regulate the flow of fluid. The disc's rotation is achieved via a spindle mounted in the valve body, which is controlled by a pneumatic actuator.
Butterfly Valve Operating Mechanism
Disc Position: When the valve is in the closed position, the disc completely closes the pipeline, perpendicular to the direction of flow. In the open position, the disc becomes parallel to the direction of flow, allowing fluid to pass freely.
Pneumatic Actuator: A double-acting pneumatic actuator has two separate air chambers where air is applied to the valve stem. One chamber is pressurized, pushing the stem in one direction, while the other is evacuated. When this process is reversed, the stem and the disc to which it is attached move in the opposite direction. This allows the valve to switch between open and closed positions quickly and reliably.
Sealing: The seal between the disc and the valve body is typically achieved with an elastomeric or plastic gasket material. This material maximizes sealing and minimizes friction between the disc and the body, allowing the disc to rotate smoothly.
Lug Connection: The lug-type connection allows the valve body to be easily mounted on flanged pipes. This connection type provides excellent retention, even under high pressure, thanks to the strong connections made by screws on both sides of the valve body.
Butterfly Valve Usage Areas:
Lug Type Double Acting Pneumatic Actuated Butterfly Valves can be used in a wide range of applications and are widely preferred in the following sectors:
Heating, Ventilation and Air Conditioning Systems (HVAC): Ideal for temperature control and flow management.
Water Treatment and Distribution Systems: Offering reliable sealing and long-lasting performance.
Mining Industry: Provides high durability in corrosive and harsh environments.
Shipbuilding and Drilling Facilities: It stands out with its corrosion-resistant structure in marine environments.
Food and Chemical Enterprises: Produced with materials that comply with hygiene and safety standards.
Oil and Gas Processes: Performs reliably under high pressure and temperature.
Fire Extinguishing Systems: Increase fire safety by providing fast and effective shutdown in emergency situations.
ORFA Industrial Products Industry and Trade Inc. offers Lug-Type Double-Acting Pneumatic Actuated Butterfly Valves that perfectly suit the needs of industrial processes. These valves offer the highest standards in durability, performance, and reliability, providing excellent results in a variety of industrial applications.
