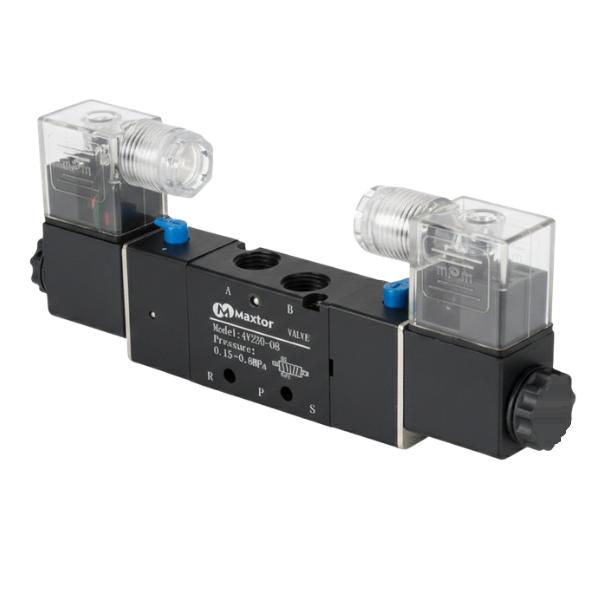

Maxtor 4V220-08-24VDC Double Coil Pneumatic Valve 1/4'' 5/2 24V DC
%30 Discounted Product
0 - Comment / Read Comments
26,08 USD
18,26 USD
Category
Brand
Stock Code
19324V2200824VDC
Warranty Period
24 Month
Price
21,73 USD + VAT
* Installments starting from 18,26 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
Maxtor 4V220-08-24VDC Double Coil Pneumatic Valve
5/2 Way Memory System | 1/4" Connection Size | 1.5 - 8 Bar Operating Range
The Maxtor 4V220-08-24VDC is a high-performance directional control valve used in industrial automation to manage the forward and backward movement of double-acting pneumatic cylinders. Its double-coil (bistable) design allows for a "memory" operation, meaning the valve maintains its last position even if the electrical signal is cut off. This feature not only saves energy but also prevents uncontrolled system movement during power outages, enhancing workplace safety.
TECHNICAL SPECIFICATIONS
Model Code 4V220-08 (Double Coil)
Valve Type / Position 5/2 Way (5 Ports, 2 Positions)
Operating Pressure (MPa) 0.15 - 0.8 MPa (1.5 - 8 Bar)
Coil Voltage 24V DC
Air Inlet/Outlet Size 1/4" BSP
Body Material Aluminum Alloy
5/2 OPERATING SCHEME AND PORT STRUCTURE
Port 1 on the valve is the air inlet, ports 2 and 4 are cylinder connections, and ports 3 and 5 are exhaust outlets. In the double-coil design, when coil A is energized, air flows out of port 4; even if the power is cut, air continues to flow from port 4. To change position, a signal must be sent to coil B.
PRODUCT ADVANTAGES
- Energy Efficiency: Only a short pulse signal is needed to change position, no continuous power consumption.
- Precise Control: Internal spool design ensures low friction and high response speed.
- Manual Control: Manual override buttons available for testing in power-off situations.
- Durable Coil: 24V DC coils are designed for low heat generation and long service life.
APPLICATION AREAS
- Pneumatic Cylinders: Control of double-acting cylinders.
- Packaging Machines: Fast and safe part separation and pushing processes.
- Automation Lines: PLC-controlled production areas.
- Valve Actuators: Management of double-acting pneumatic valve actuators.
