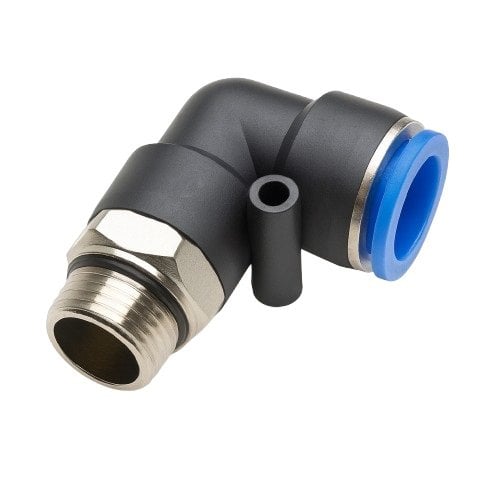

MAXTOR Pneumatic Rotary Elbow 10 mm - 1/8"

MAXTOR Pneumatic Rotary Elbow 10 mm - 1/8"

Flexible and Reliable Connection in Pneumatic Systems with ORFA Industrial

Designed specifically for safe and flexible routing of moving lines in pneumatic systems, the pneumatic rotary elbow with MAXTOR quality is an indispensable connection element in industrial facilities. This 10 mm - 1/8" pneumatic rotary elbow allows hoses to rotate freely 360° without kinking or wear. With a nickel-plated brass body resistant to corrosion, the pneumatic rotary elbow offers long-lasting performance in harsh industrial environments. Thanks to the push-in quick-connect system, installation of the pneumatic rotary elbow is completed in seconds, significantly reducing maintenance costs. The operating pressure of the pneumatic rotary elbow ranges from 0 to 10 bar, and the temperature range is -5°C to +60°C. Each pneumatic rotary elbow is equipped with an NBR seal for leak-proof operation. This pneumatic rotary elbow, available in ORFA Industrial stock, is widely preferred in automotive, robotics, and automation lines. Using a high-quality pneumatic rotary elbow in your system increases efficiency and reduces downtime.

Pneumatic Rotary Elbow Technical Specifications Details

Model Information: MAXTOR Pneumatic Rotary Elbow

Connection Sizes: 10 mm Hose - 1/8" Thread

Rotary Body: 360° Free Rotation

Working Pressure: 0 – 10 Bar

Maximum Pressure: 15 Bar

Operating Temperature: -5°C to +60°C

Body Material: Nickel-Plated Brass

Seal Material: NBR (Nitrile Rubber)

Connection Type: Push-in Quick Connect

Pneumatic Rotary Elbow Key Advantages

Easy Installation: Push-in connection for tool-free setup in seconds.
360° Rotation: Free rotation mechanism prevents hose kinking and wear.
Corrosion Resistance: Nickel-plated brass body withstands harsh environments.
Leak-Proof: NBR seals prevent leakage even at high pressure.

Pneumatic Rotary Elbow Application Areas

Automotive production lines and pneumatic assembly equipment.
Robotic arms and automation systems.
Packaging machines and pneumatic conveying lines.
Industrial pneumatic circuits requiring precise motion.

Discover flexibility, reliability, and long-lasting performance with MAXTOR Pneumatic Rotary Elbow solutions for your pneumatic systems.

Thread Size	:	1/8''
Hose OD - Outside Diameter	:	Ø10mm
