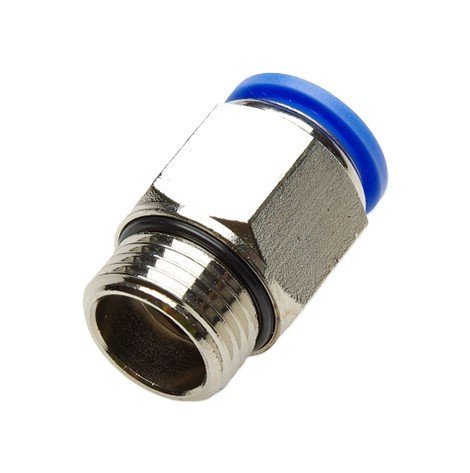

MAXTOR Pnömatik Düz Rakor 1/2'' - 8 mm

MAXTOR Pnömatik Düz Rakor 1/2'' - 8 mm

Name: MAXTOR Pnömatik Düz Rakor 1/2'' - 8 mm
Brand: MAXTOR
SKU: 1932PCG0804
Price: 0.9912 USD
Availability: InStock

MAXTOR Pneumatic Straight Fitting 1/2'' - 8 mm

Compact and Leak-Proof Pneumatic Connection with ORFA Industrial Guarantee

A key component for reliable and leak-proof connections in industrial pneumatic systems, the pneumatic straight fitting offers quick installation and high performance. This 1/2'' threaded pneumatic straight fitting from MAXTOR is ideal for 8 mm outer diameter hoses. With push-in technology, the pneumatic straight fitting enables tool-free installation, while the nickel-plated brass body provides excellent corrosion resistance. Available from ORFA Industrial, this fitting operates at 0-10 bar working pressure and temperatures from -10°C to +60°C. Choosing a quality pneumatic straight fitting prevents air leaks and enhances system efficiency. Extremely easy to mount, this fitting is used in automation lines, machine manufacturing, and more. Each pneumatic straight fitting is manufactured in accordance with ISO 14743 for long-lasting performance.

Pneumatic Straight Fitting Technical Specifications

Connection Type: Male Thread – Push-in

Thread Size: 1/2''

Hose Diameter: 8 mm (outer diameter)

Body Material: Nickel-plated brass

Seal Material: NBR

Working Pressure: 0 – 10 bar

Working Temperature: -10°C to +60°C

Suitable Fluids: Compressed air, vacuum

Mounting: Tool-free, quick connection

Standards: ISO 14743 compliant

Key Advantages of Pneumatic Straight Fitting

Pneumatic straight fitting saves time with tool-free installation.
Pneumatic straight fitting resists corrosion thanks to nickel-plated brass.
Pneumatic straight fitting ensures leak-proof sealing with NBR O-rings.
Pneumatic straight fitting provides safe operation up to 10 bar.

Application Areas of Pneumatic Straight Fitting

Pneumatic systems and automation lines
Machine manufacturing and process lines
Assembly and production lines
Packaging and filling machines

Discover safe and long-lasting connections in your air piping system with MAXTOR pneumatic straight fitting solutions.

Thread Size	:	1/2''
Hose OD - Outside Diameter	:	Ø8mm
