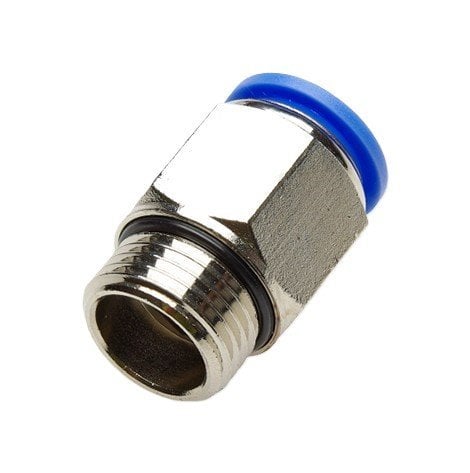

MAXTOR Pnömatik Düz Rakor M5 - 6 mm

MAXTOR Pneumatic Straight Fitting M5 - 6 mm

Reliable Pneumatic Connection with ORFA Industrial Assurance

Designed to provide reliable and leak-proof connections in industrial pneumatic systems, the pneumatic straight fitting manufactured with MAXTOR quality offers high performance. Suitable for M5 male threaded connection and 6 mm outer diameter hose, the pneumatic straight fitting features a nickel-plated brass body providing excellent corrosion resistance. Each pneumatic straight fitting utilizes push-in connection technology for tool-free installation, significantly reducing setup time. Suitable for operating pressure from 0 to 10 bar and temperature range from -10°C to +60°C, the pneumatic straight fitting can be safely used in compressed air and vacuum systems. Widely preferred in industrial automation and machine building, the pneumatic straight fitting meets the highest sealing standards. Offered with ORFA Industrial assurance, this pneumatic straight fitting minimizes air leakage in the installation, ensuring energy efficiency. Thanks to its compact design, the pneumatic straight fitting can be easily used even in tight spaces, providing long service life without maintenance. The correct choice of pneumatic straight fitting in your project directly affects the overall system performance. Manufactured with the engineering quality of the MAXTOR brand, the pneumatic straight fitting is an ideal solution for your industrial installation. Compliant with ISO 14743 standard, the pneumatic straight fitting is supported by international quality certificates.

Pneumatic Straight Fitting — Technical Specifications

Model: MAXTOR Pneumatic Straight Fitting

Connection Type: M5 Male Thread — Push-in

Hose Diameter: 6 mm (Outer)

Body Material: Nickel-Plated Brass

Seal Material: NBR

Operating Pressure: 0 - 10 bar

Operating Temperature: -10°C to +60°C

Suitable Fluids: Compressed Air, Vacuum

Installation: Tool-free, Quick Connection

Standard: ISO 14743

Pneumatic Straight Fitting — Key Advantages

Easy Installation: Tool-free push-in connection in seconds.
High Sealing: NBR seals minimize air leakage.
Corrosion Resistance: Nickel-plated brass body ensures long life.
Wide Application: Operates at 0-10 bar and wide temperature range.

Pneumatic Straight Fitting — Application Areas

Pneumatic systems and automation lines.
Machine building and process industry.
Assembly and production lines.
Packaging and filling machines.

Discover safe and efficient connections for your pneumatic systems with MAXTOR Pneumatic Straight Fitting.

Hortum Çapı

Ø6mm
