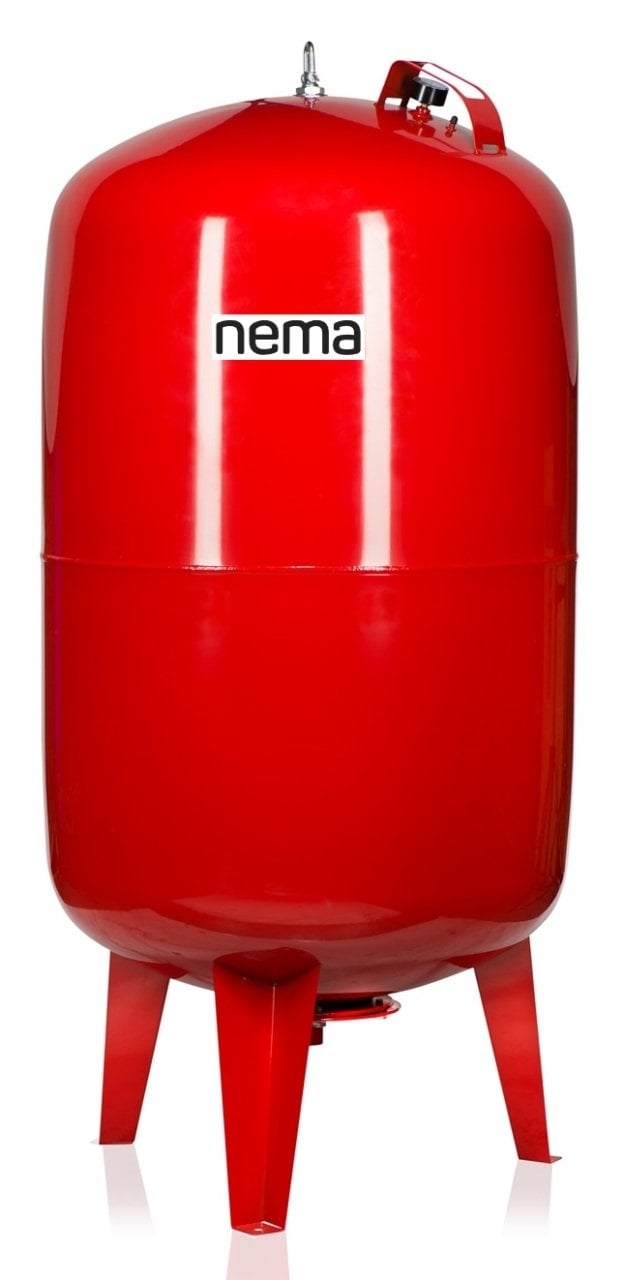

NEMA NEX Expansion Tank Vertical Type 300 LT PN10
Brand
Stock Code
8.00300.110110
Warranty Period
24 Month
Price
545,98 USD + VAT
%40
327,59 USD
545,98 USD
Installments starting from 327,59 USD!
NEMA NEX Expansion Tank Vertical Type
ORFA With the assurance of Endüstri Mamüller Sanayi ve Ticaret A.Ş The offered NEMA NEX Expansion Tank Vertical Type 300 LT PN is designed to safely manage pressure balancing and water volume changes in high capacity systems. It plays a critical role in heating, cooling and solar energy systems as well as pressurized booster systems in modern installations. Thanks to its aesthetic design, durable body structure and long-lasting membrane, it fits perfectly into industrial use. It works thanks to a high-quality membrane that separates the gas chamber. As the volume of water in the system changes, pressure changes in the gas chamber allow water to return to the system or be stored. Thus, the system pressure is always kept stable and possible damage caused by expansion is prevented. Using the fill valve at the top of the tank, the pressure in the gas chamber can be easily adjusted to achieve optimum performance. No additional energy source, pump or compressor is required; It is a completely passive and smart solution.
Technical Specifications
Standards:
4/68/EU Pressure Equipment Directive and TS-EN Compliant with 13831 standards
Membrane: DIN Can be changed according to 4807-3 norms, EPDM or optionally Butyl material
Coating: Electrostatic powder paint
Membrane operating temperature: -10 °C / +70 °C
Instantaneous maximum operating temperature: +110 °C (to expansion tank return line must be connected)
Suitable liquids: Water and water-glycol mixtures (max. 50% glycol, Fluid Group 2 according to Directive 2014/68/EU)
Equipment: For models from 100 liters and above manometer
Nominal volume: liters
Nominal pressure: PN
Dimensions Diameter Ø (mm); ISO 228-1):
1/4"
Weight (kg): .
Preliminarygaspressure (bar): Expansion Tank Usage Areas
Heating systems (heater, hot water boilers) Cooling and air conditioning installations
Solar energy systems Pressure booster systems
Industrial process lines Water storage and transfer systems
Fire extinguishing and hydrant supply lines NEMA NEX Expansion Tank Vertical Type 300 LT PN
, superior performance, long life and maximum in high volume applications offers reliability.
ORFA This tank, included in the wide product range of Endüstri Mamüller Sanayi ve Ticaret A.Ş
, was developed to provide solutions to the most challenging needs in the sector. It makes a difference in your installations thanks to its strong structure and user-friendly design.
Güneş enerjisi sistemleri
Basınçlı booster sistemleri
Endüstriyel proses hatları
Su depolama ve transfer sistemleri
Yangın söndürme ve hidrant besleme hatları
NEMA NEX Genleşme Tankı Dikey Tip 300 LT PN10 , yüksek hacimli uygulamalarda üstün performans, uzun ömür ve maksimum güvenilirlik sunar. ORFA Endüstriyel Mamüller Sanayi ve Ticaret A.Ş ’nin geniş ürün yelpazesinde yer alan bu tank, sektördeki en zorlu ihtiyaçlara çözüm üretmek için geliştirilmiştir. Güçlü yapısı ve kullanıcı dostu tasarımı sayesinde tesisatlarınızda fark yaratır.
| Pressure Class (PN) | : | PN 10 |
| Thread Size | : | 1 1/4'' |
| Capacity (Liters) | : | 300 LT |
