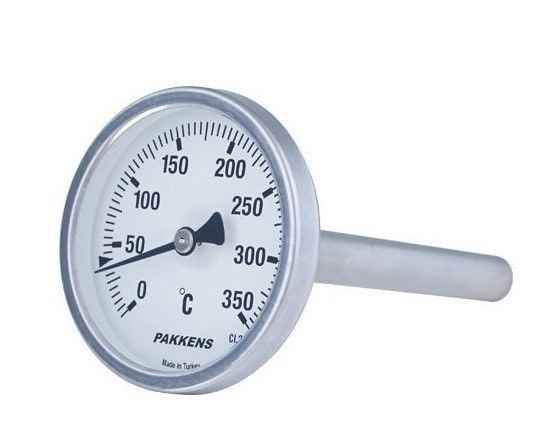

Pakkens Arka Bağlantılı Bi-Metal Termometre Ø100mm 350°C 1/2'' 30cm CL 2,0
%10 Discounted Product
0 - Comment / Read Comments
24,16 USD
21,74 USD
Category
Brand
Stock Code
1004020610
Warranty Period
24 Month
Price
20,13 USD + VAT
* Installments starting from 21,74 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
Rear Outlet Bi-Metal Thermometer
5
ORFA Rear Outlet Bi-Metal Thermometer offered by Endüstri Mamüller Sanayi ve Ticaret A.Ş . offers high precision and reliability in temperature measurement. This thermometer is specially designed for industrial applications and provides long-lasting use with its stainless steel body and durable structure. This product, which can be used in a wide range of applications from HVAC systems to heating and cooling applications, stands out with its measurement accuracy and reliability.
Product Features Body Diameter:
Ø100 mm
Temperature Range: up to 350°C
Immersion Length:
30 cm
Sensitivity:
±2% (KL2.0)
Operating Range: Full scale
Industry Sector:
Machine manufacturers, heating and air conditioning machines, boiler manufacturers
Structural Features Mounting Type:
Rear mounted Body:
Stainless AISI-430
Cover:
AISI-430
Dial: Aluminium
Temperature Element: Bi-Metal
Link:
Gear
Standards and Certifications
5
Compliance:
EN Complies with 13190 standards.
Sensitivity Class:
KL It is in the 2.0 sensitivity class.
Protection Class:
It is resistant to dust and water with IP51 protection class.
Maximum Pressure:
Provides pressure resistance up to 16 Bar.
Technical Information
Rear Output Bi-Metal Thermometer is widely used in areas such as HVAC systems, heating and cooling applications. The thermometer's modular design allows it to have different combinations of nominal sizes, body lengths and scale ranges. These features enable flexible use of the thermometer in various industrial applications. It can be mounted to processes with screwable thermowells and thus changes can be made without the need to stop the systems. 6
Rear Outlet Bi-Metal Thermometer Working Principle 5 6
5
| Tooth Measurement | : | 1/2'' |
| Connection Type | : | Rear Mounted |
| Screen Diameter Measurement | : | Ø100 mm |
| Calibration Class | : | Cl.2,0 |
| Immersion Length | : | 30 cm |
