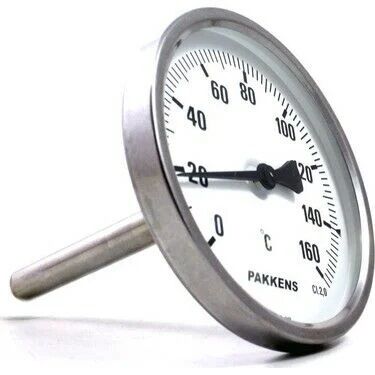

Pakkens Bi-Metal Thermometer with Rear Connection Ø100 160°C 25cm KL2.0
%10 Discounted Product
0 - Comment / Read Comments
18,96 EUR
17,06 EUR
Brand
Stock Code
1004020506
Warranty Period
24 Month
Price
15,80 EUR + VAT
* Installments starting from 17,06 EUR!
Add to Cart
Rear Exit Bi-Metal Thermometer
The Rear-Exit Bi-Metal Thermometer, offered by ORFA Industrial Products Industry and Trade Inc. , offers high precision and reliability in temperature measurement. Designed specifically for industrial applications, this thermometer's stainless steel casing and durable construction ensure long-lasting use. Suitable for a wide range of applications, from HVAC systems to heating and cooling, this product stands out for its measurement accuracy and reliability.
Product Features
Body Diameter: Ø100 mm
Temperature Range: Up to 160°C
Immersion Length: 25 cm
Accuracy: ±2% (KL 2.0)
Working Range: Full scale
Industry Sector: Machinery manufacturers, heating and air conditioning machines, boiler manufacturers
Structural Features
Mounting Type: Rear mounting
Body: Stainless AISI-430
Cover: AISI-430
Dial: Aluminum
Temperature Element: Bi-Metal
Connection: Threaded
Standards and Certificates
Compliance: Complies with EN 13190 standards.
Sensitivity Class: KL is in 2.0 sensitivity class.
Protection Class: Resistant to dust and water with IP51 protection class.
Technical Information
The Rear-Exit Bi-Metal Thermometer is widely used in applications such as HVAC systems and heating and cooling systems. Its modular design allows for different combinations of nominal sizes, stem lengths, and scale ranges. These features allow for flexible use in a variety of industrial applications. It can be mounted in processes using screw-in thermowells, allowing for changes without requiring system shutdown.
Rear Output Bi-Metal Thermometer Working Principle
Bi-Metal Technology
Bi-metal thermometers consist of two different metals that react to temperature changes. These two metals have different coefficients of thermal expansion and, when combined, bend or twist with temperature changes. This bending is directly proportional to temperature, allowing for temperature measurement. The bi-metal strip used in the Rear Output Bi-Metal Thermometer is made of durable and reliable metals such as stainless steel.
Thermal Expansion:
A bimetal strip bends when the temperature changes due to the different expansion rates of the two metals. This bending is proportional to the temperature increase or decrease. For example, as the temperature increases, the metal with the higher coefficient of expansion expands more, causing the strip to bend.
Twisting Movement:
The bending movement of the bi-metal strip is read by a mechanism connected to the thermometer's dial. This mechanism precisely displays the amount of bending on the dial. The Rear Output Bi-Metal Thermometer accurately and precisely transmits this movement, providing clear and reliable temperature readings.
Display Mechanism:
Bending the bimetallic strip moves the needle on the thermometer's dial through a mechanical linkage. The needle moves along the scale displayed as the temperature. This movement allows the user to easily read the current temperature.
Areas of Use
Air Conditioning and Cooling Systems: Temperature control and monitoring in HVAC systems
Heating Systems: Temperature regulation and monitoring
Ventilation Systems: Control of air temperature
Hot Water Tanks: Temperature measurement in hot water systems
Solar Collectors: Temperature monitoring in solar energy systems
The Rear-Exit Bi-Metal Thermometer, offered by ORFA Industrial Products Industry and Trade Inc. , offers excellent performance and durability in industrial temperature measurement. Its advanced features and superior structural design enable reliable and accurate monitoring of industrial processes.
