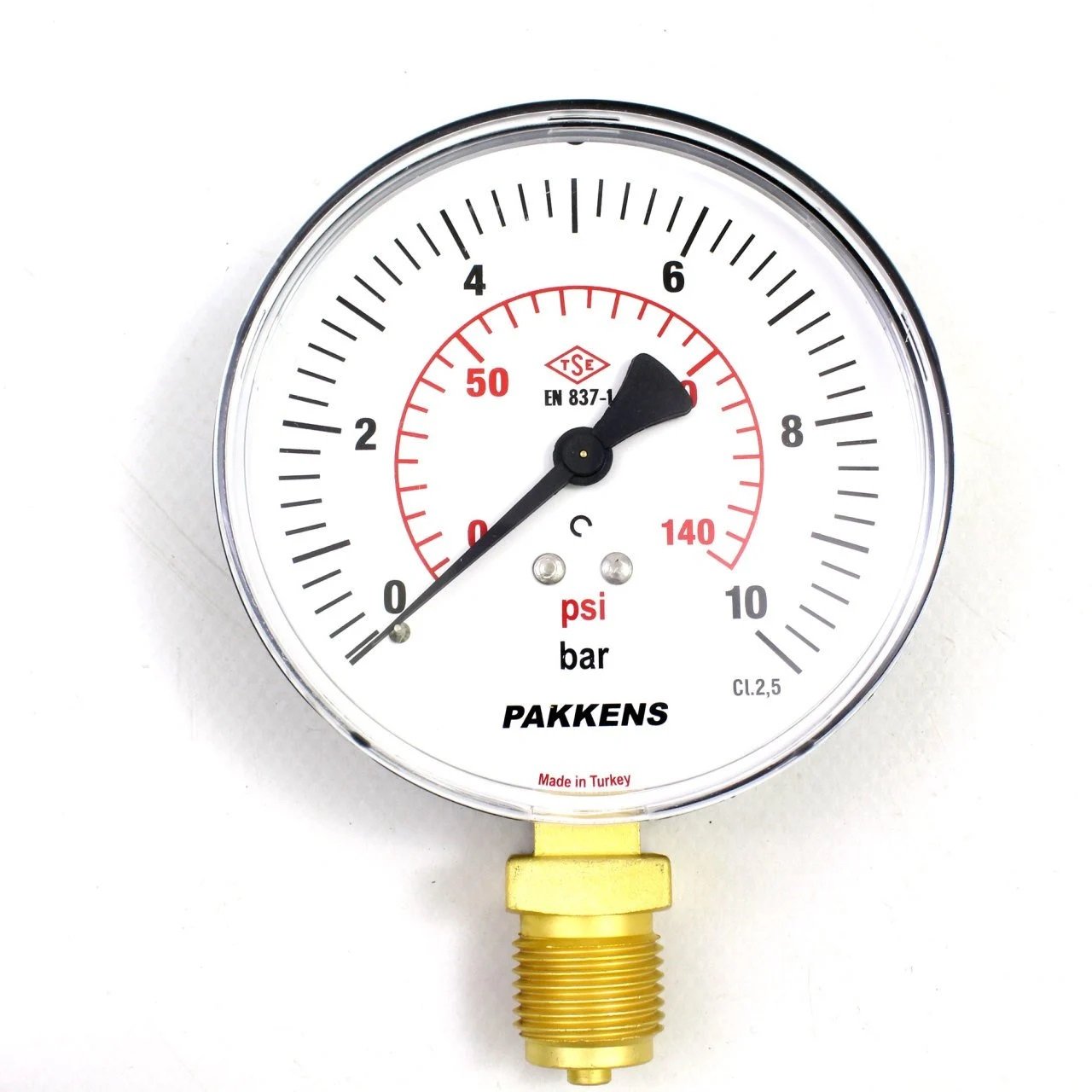

Pakkens Bottom Connection Dry Type Manometer
ORFA Pakkens Bottom Connection Dry Type Manometer, offered by Endüstri Mamüller Sanayi ve Ticaret A.Ş. , is a pressure measurement device that is widely used in various industrial applications and offers high reliability and durability. These manometers provide accurate and reliable pressure measurement where high measurement accuracy is not critical. It is ideal for use in pressure measurements of liquids and gases that do not corrode copper alloys. Offering versatile usage with its different body designs and wide pressure measurement range, this device stands out with its long-lasting performance and easy installation features.
Product Features
Sensitivity: Provides reliable performance in applications that do not require high measurement precision.
Compatibility: Used for pressure measurements of various liquids and gases that are not corrosive to copper alloys.
Mounting: Sub bracket mounting allows the device to be easily integrated into a variety of systems.
Durability: Provides long-lasting use thanks to the steel body and pirinç mechanism.
Visibility: Polycarbonate plate and aluminum dial provide clear reading of pressure.
Technical Information
Model: Dry Type
Mounting Type: Bottom Mount
Body Diameter: mm
Pressure Range: Bar
Sensitivity Class: CL 2.
Precise Measurement Range: % of Full Scale Value
Process Connection: /4"
Fluid Temperature: Maximum +60 °C
IP Protection Class: IP
Body Material: Plastic
Mechanism: Pirinç
View Plate: Polycarbonate
Pressure Body: Copper Alloy
Dial and Hand: Aluminum
Joint Weld : Solder
Standard Availability: EN 837-
Working Principle
Pressure Detection:
Dry Type Manometer with Bottom Connection detects the pressure of the process fluid through the connection point at the bottom. This fluid transmits the pressure in the pipe or line connected to the manometer to the pressure organ inside the manometer.
Deformation of Bourdon Tube:
There is usually a Bourdon tube inside the manometer. This tube is a metal tube of oval cross-section with a circular shape. Process pressure acts on the inner surface of this tube. As the pressure increases, the circular shape of the tube begins to flatten and this deformation is transmitted to the internal mechanism of the manometer. This deformation of the tube translates into a linear motion.
Movement of the Mechanism:
Deformation of the Bourdon tube activates a gear mechanism attached to the tube. This gear mechanism converts the linear motion of the tube into a rotary motion. The rotary movement moves the needle on the dial of the manometer.
Pressure Display:
The needle moves on the dial of the manometer and shows the current pressure. The dial is marked according to pressure units, and the value shown by the needle informs the user how much the process pressure is. In dry type manometers, the indication on the dial remains accurate and stable without being affected by vibrations.
Sensitivity and Reliability:
Ideal for applications that do not require high measurement accuracy, but where reliability and durability are at the forefront. Being a dry type, it eliminates the risks of leakage or contamination that can be seen in liquid-filled manometers, thus providing a long-term and low-maintenance solution.
Areas of Use
Air Conditioners: Monitoring and control of ideal pressure levels.
Compressed Air Lines: Safe and stable air pressure measurement.
Healthcare Devices: Pressure control in medical equipment.
Hydraulic Systems: Precise measurement of fluid pressure.
Heating Installations: Pressure monitoring in heating systems.
Water Pumps and Circulation Systems : Monitoring and control of water pressure.
Industry Sector
It is preferred in a wide range of applications, from water treatment plants to machinery manufacturers, from heating and air conditioning systems to pumps and compressors. It can be used safely in many sectors such as hydraulic systems and pressurized lines.
Pakkens Bottom Connection Dry Type Manometer is an ideal solution to meet the pressure measurement needs of your business with its ease of use and reliable performance.
| Tooth Measurement | : | 1/4'' |
| Connection Type | : | Sub-Linked |
| Screen Diameter Measurement | : | Ø63 mm |
| Manometer Type | : | Dry Type |
| Cover Material | : | Plastic |
| Calibration Class | : | Cl.2,5 |
