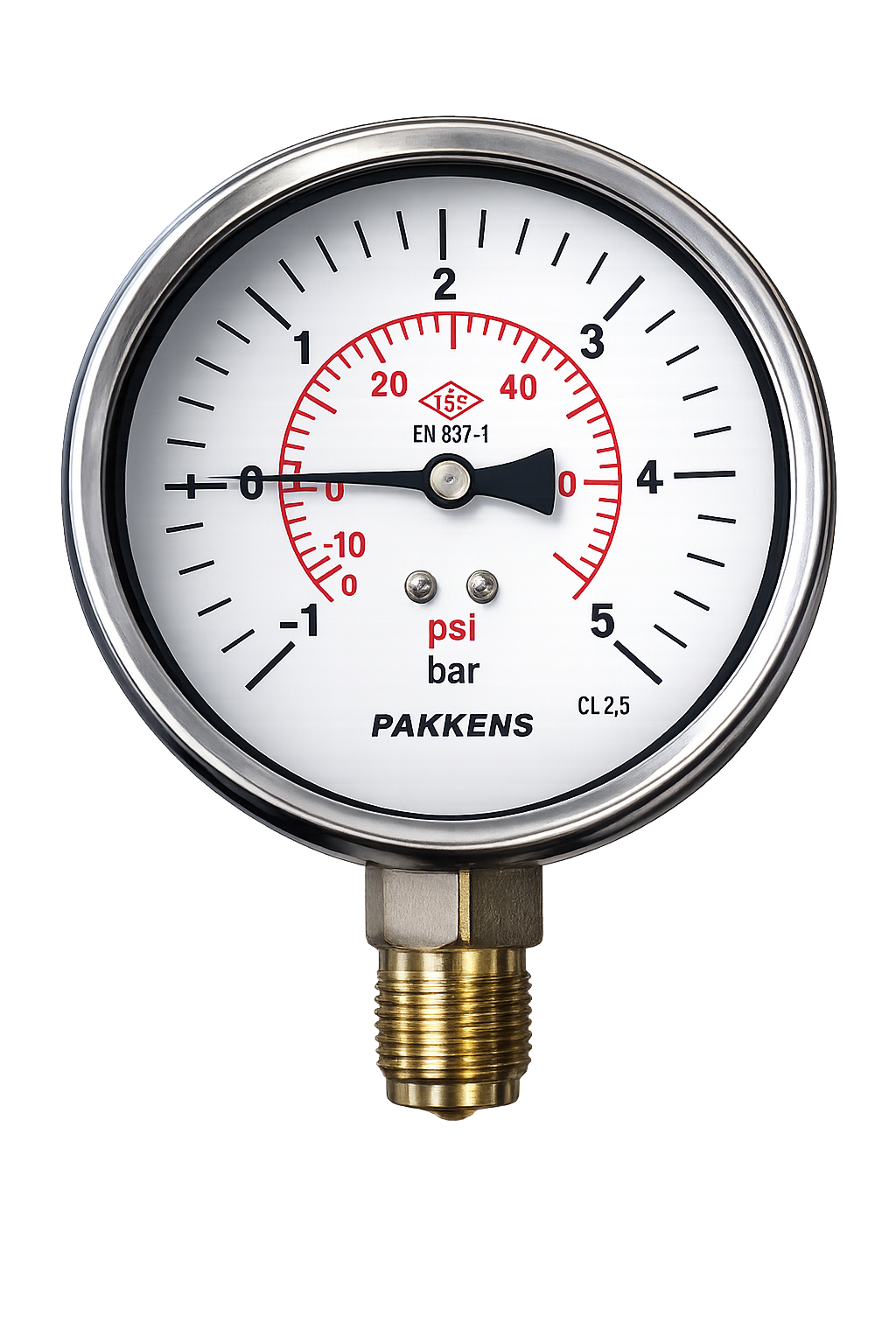

Pakkens Alt Bağlantılı Gliserinli Tip Manovakummetre Ø100 mm -1+5 Bar 1/2''
%10 Discounted Product
0 - Comment / Read Comments
34,62 USD
31,16 USD
Category
Brand
Stock Code
1002001106
Warranty Period
24 Month
Price
28,85 USD + VAT
* Installments starting from 31,16 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
Manovakummetre – Precise Pressure and Vacuum Measuring Device
The Manovakummetre is a highly accurate device developed for vacuum and negative pressure measurements. Offered by ORFA Industrial Products Industry and Trade Inc. , this Manovakummetre plays a crucial role in ensuring critical pressure control in industrial systems. It provides an excellent solution for vacuum-operated machines, pump systems, and any application requiring negative pressure management. Its robust construction, durable materials, and high accuracy allow users to continuously and reliably monitor pressure levels.
Technical Specifications
Model: Glycerin Type - Manovacummeter
Mounting Type: Bottom Mount
Body Diameter: 100 mm
Pressure Range: -1/+5 Bar
Sensitivity Class: CL 2.5
Precision Measurement Range : 75% of the full scale.
Process Connection: 1/2"
Fluid Temperature: Maximum +60 °C
IP Protection Class: IP41
Body Material: Steel
Mechanism: Brass
Appearance Sheet: Polycarbonate
Pressure Element: Copper Alloy
Dial and Hands: Aluminum
Joining Source: Solder
Standard Compliance: EN 837-1
Basic Working Principle of a Manovacuum Gauge
A manovaccumulator is designed to monitor negative pressure values within a closed system. The device determines the vacuum level by measuring how much lower the pressure within the system is compared to atmospheric pressure. This process is generally accomplished through the following main components:
Pressure Element (Bourdon Tube): The Bourdon tube, the most important component of the manovacuummeter, consists of a flexible metal tube sensitive to pressure changes. The tube is fixed at one end and connected to the system at the other. As the negative pressure within the system increases, the tube stretches outwards. Conversely, if the pressure within the system increases in the positive direction, the tube contracts.
Mechanism and Dial: The stretching motion of the Bourdon tube is transmitted to a mechanical system inside the manovacuum gauge. The deformation of the tube moves the needle on the dial via a gear system inside the manovacuum gauge. This mechanical movement displays the measured pressure value on the dial.
Vacuum and Negative Pressure Monitoring: The Manovacuummeter determines the vacuum level by comparing the pressure inside the system to the measured atmospheric pressure. Since negative pressure is lower than atmospheric pressure, the Manovacuummeter detects this difference and displays it as a measurement result. The device provides the user with important information by accurately monitoring the pressure levels in the system.
Accuracy and Calibration
ORFA 's Manovakummetre boasts a high accuracy class, providing the most accurate measurements across 75% of the full scale. This is a significant advantage, particularly in industrial systems where precise pressure adjustments are critical. Manufactured in accordance with EN 837-1, the device guarantees compliance with internationally accepted safety and performance standards.
The manovakummetre also offers the user the option of manual calibration. Even if the sensitivity of the device decreases over time, with proper calibration, the device can again measure with high accuracy.
Areas of Application
Air Conditioning Systems: Indispensable for monitoring and managing ideal pressure levels in airflow.
Compressed Air Lines: Preferred in environments where a constant and reliable air pressure must be maintained.
Healthcare Equipment: Provides precise pressure monitoring and control capabilities in medical devices.
Hydraulic Systems: Enable precise monitoring of pressure levels of hydraulic fluids.
Central Heating and Heating Systems: Ensures efficient operation in heating systems through reliable pressure monitoring.
Water Pumps and Circulation Systems: Monitor water pressure levels to ensure the system operates at optimum performance.
ORFA Industrial 's Manovakummetre (Manova Vacuum Gauge) combines durability and performance in its design, making it ideal for meeting pressure and vacuum measurement needs in many different sectors. Thanks to its easy mounting, high accuracy, and durable material construction, it offers a reliable solution for many years.
| Thread Size | : | 1/2'' |
| Connection Type | : | Radial Connection |
| Nominal Diameter (of the gauge) | : | Ø100 mm |
| Gauge Type | : | Glycerine Filled Type |
| Cover Material | : | Metal |
| Accuracy Class | : | Cl.2,5 |
