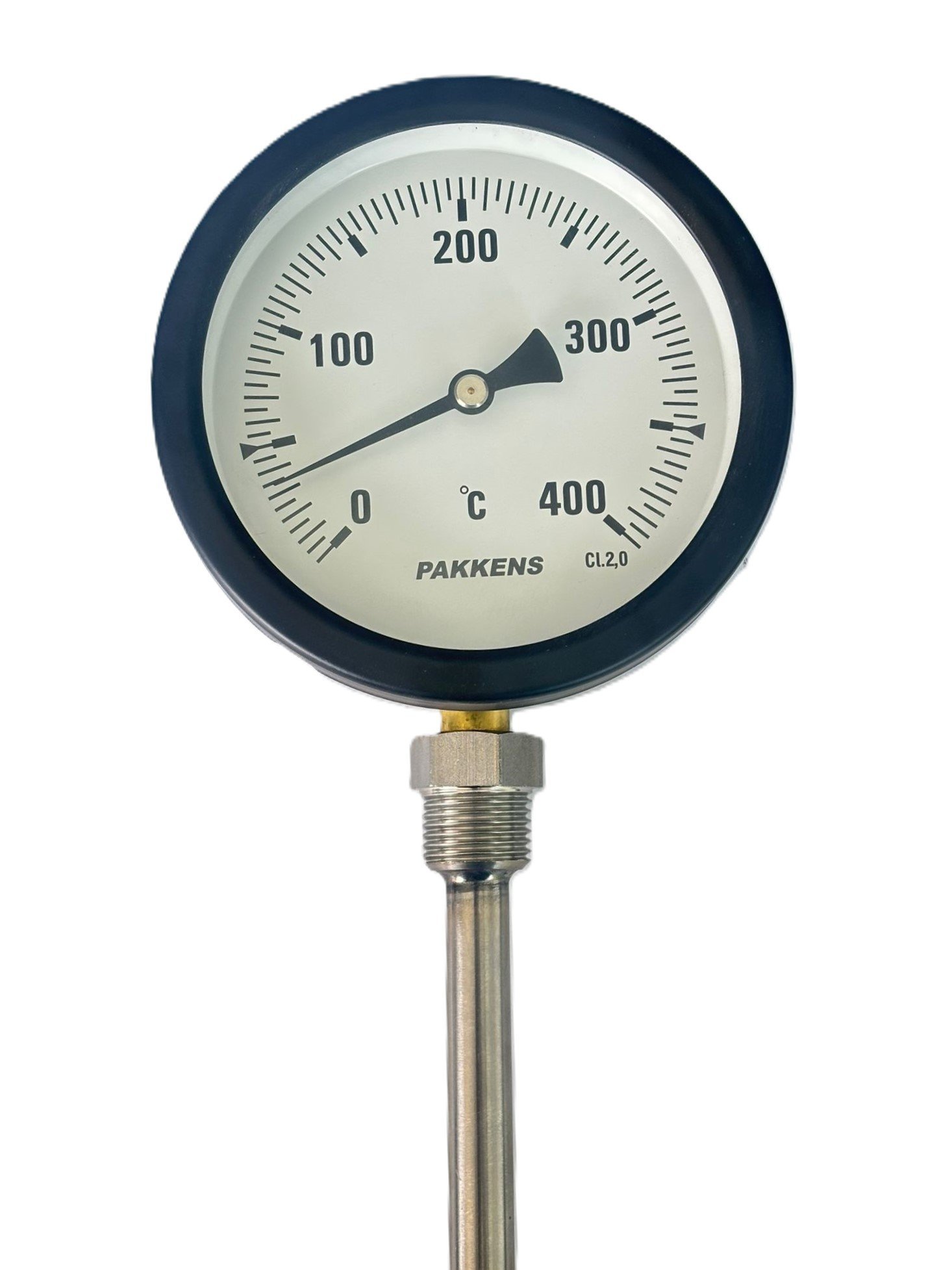

Pakkens Bottom Connection Thermometer Ø100mm 400°C 10cm 1/2'' CL 2.0
%10 Discounted Product
0 - Comment / Read Comments
17,16 EUR
15,44 EUR
Category
Brand
Stock Code
1004010211
Warranty Period
24 Month
Price
14,30 EUR + VAT
* Installments starting from 15,44 EUR!
Add to Cart
Pakkens Bottom Mount Thermometer
The Pakkens Bottom Mount Thermometer , offered by ORFA Industrial Products Industry and Trade Inc. , offers high precision and reliability in temperature measurement. Designed specifically for industrial applications, this thermometer's steel casing and durable construction ensure long-lasting use. Suitable for a wide range of applications, from HVAC systems to heating and cooling applications, this product stands out for its measurement accuracy and reliability.
The Pakkens Bottom Mount Thermometer , offered by ORFA Industrial Products Industry and Trade Inc. , offers high precision and reliability in temperature measurement. Designed specifically for industrial applications, this thermometer's steel casing and durable construction ensure long-lasting use. Suitable for a wide range of applications, from HVAC systems to heating and cooling applications, this product stands out for its measurement accuracy and reliability.
Product Features
Bi-Metal Technology: A coil spring, formed by combining two different metal strips, rotates around an axis during heat detection, providing precise temperature measurement. This system transfers temperature information to the dial by rotating the central drive shaft.
Bi-Metal Technology: A coil spring, formed by combining two different metal strips, rotates around an axis during heat detection, providing precise temperature measurement. This system transfers temperature information to the dial by rotating the central drive shaft.
High Accuracy: Designed for use in applications requiring high measurement accuracy.
Stainless Steel Construction: Stainless steel material provides excellent performance in temperature measurements of non-corrosive liquids and gases.
Technical Specifications
Body Diameter: Ø100 mm
Temperature Range: 400°C
Immersion Length: 10 cm
Accuracy: ±2% (KL 2.0)
Working Range: Full scale
Industry Sectors: Oil refineries, chemical plants, machinery manufacturers, heating and air conditioning equipment, boiler manufacturers
Structural Features
Mounting Type: Bottom Mount
Body Material: Steel
Cover Material: Sheet Metal
Dial: Aluminum
View Plate: Glass
Thermowell: Stainless AISI-316L
Temperature Element: Bi-Metal
Connection: 1/2''
Standards and Certificates
Compliance: Complies with EN 13190 standards.
Sensitivity Class: It is in the KL 2.0 sensitivity class.
Protection Class: Resistant to dust and water with IP51 protection class.
Maximum Pressure Resistance: Provides pressure resistance up to 25 Bar.
Working Principle
Bi-Metal Technology
Bi-Metal Strips: Bi-metal strips, the core components of thermometers, are formed by combining two metals with different coefficients of expansion. These metals are typically selected from special alloys that are resistant to high temperature changes.
Coil Spring Mechanism: Bi-metal strips are wound into a helix. When the temperature changes, the coil spring opens or closes based on the different expansion rates of the two metals. This mechanical movement sensitively senses temperature changes.
Drive Shaft and Dial Hands: The drive shaft, located at the center of the coil spring mechanism, rotates in response to temperature changes. This rotation is transmitted to the needle attached to the thermometer's dial. The needle indicates the temperature change on the dial.
Installation and Thermowell Use
Bottom Mount Mounting: The Pakkens Bottom Mount Thermometer easily installs into systems thanks to its bottom mount. This mounting type ensures accurate and reliable temperature measurements.
Thermowell Usage: A thermowell is a casing that protects the measuring part of a thermometer. Made of stainless steel (AISI-316L), the thermowell protects the measuring device from the effects of non-corrosive liquids and gases. Furthermore, the thermowell allows for thermometer replacement or maintenance without shutting down the system.
Application Areas
Air Conditioning and Cooling Systems
Heating Systems
Ventilation Systems
Hot Water Tanks
Solar Collectors
This thermometer, with its high performance and reliability, is an indispensable tool for industrial applications. Backed by ORFA Industrial Products Industry and Trade Inc. , the Pakkens Bottom Mount Thermometer ensures the most accurate temperature measurements.
| Tooth Measurement | : | 1/2'' |
| Connection Type | : | Sub-Linked |
| Screen Diameter Measurement | : | Ø100 mm |
| Calibration Class | : | Cl.2,0 |
| Immersion Length | : | 10 cm |
