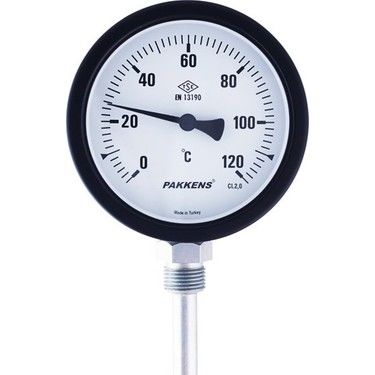

Pakkens Bottom Connection Thermometer
ORFA Industrial Mamüller Sanayi ve Ticaret A.Ş Pakkens Bottom Connection offered by Thermometer offers high precision and reliability in temperature measurement. This thermometer is specially designed for industrial applications and provides long-lasting use with its steel body and durable structure. This product, which can be used in a wide range of applications from HVAC systems to heating and cooling applications, stands out with its measurement accuracy and reliability. Product Features
ORFA Industrial Mamüller Sanayi ve Ticaret A.Ş Pakkens Bottom Connection offered by Thermometer offers high precision and reliability in temperature measurement. This thermometer is specially designed for industrial applications and provides long-lasting use with its steel body and durable structure. This product, which can be used in a wide range of applications from HVAC systems to heating and cooling applications, stands out with its measurement accuracy and reliability. Product Features
Bi-Metal Technology:
The coil spring, created by the combination of two different metal strips, rotates around its axis during heat detection and provides precise temperature measurement. This system transfers temperature information to the dial by rotating the movement shaft in the center. High Precision:
The coil spring, created by the combination of two different metal strips, rotates around its axis during heat detection and provides precise temperature measurement. This system transfers temperature information to the dial by rotating the movement shaft in the center. High Precision:
Designed for use in applications requiring high measurement precision. Stainless Steel Construction:
Stainless steel material shows excellent performance in temperature measurements of non-corrosive liquids and gases. Technical Specifications
Body Diameter:
Ø160 mm Temperature Range:
°C Immersion Length:
cm Sensitivity:
±2% (KL2.0) Operating Range:
Full scale Industry Sectors:
Oil refineries, chemical plants, machinery manufacturers, heating and air conditioning devices, boiler manufacturers Structural Features
Mounting Type:
Bottom Mounted Body Material:
Steel Cap Material:
Hair Dial:
Aluminium View Plate:
Glass Thermowell:
Stainless AISI-316L Temperature Element:
Bi-Metal Connection:
/2'' Standards and Certifications
Compliance:
Conforms to EN13190 standards. Sensitivity Class:
KL It is in the 2.0 sensitivity class. Protection Class:
It is resistant to dust and water with IP51 protection class. Maximum Pressure Resistance:
Provides pressure resistance up to 25 Bar. Working Principle
Bi-Metal Technology
Bi-Metal Strips:
A key component of the thermometer, bi-metal strips are created by combining two metals with different coefficients of expansion. These metals are usually selected from special alloys that are resistant to high temperature changes. Coil Spring Mechanism:
Bi-metal strips are wound in a spiral shape. When the temperature changes, the coil spring opens or closes depending on the different expansion rates of both metals. This mechanical movement sensitively detects temperature changes. Drive Shaft and Dial Hands:
The drive shaft, placed in the center of the coil spring mechanism, rotates depending on temperature changes. This rotational movement is transmitted to the needle attached to the dial of the thermometer. The needle shows the temperature change on the dial. Assembly and Thermowell Usage
Bottom Mounting:
Pakkens Bottom Mounted Thermometer is easily mounted on systems thanks to its bottom connection point. This type of mounting allows the thermometer to provide accurate and reliable temperature measurements. Usage of Thermowell:
Thermowell is a sheath that protects the measuring part of the thermometer. Made of stainless steel (AISI-316L), the thermowell protects the measuring device from the effects of non-corrosive liquids and gases. Additionally, thanks to the thermowell, the thermometer can be replaced or maintained without stopping the system. Application Areas
Air Conditioning and Cooling Systems
Heating Systems
Ventilation Systems
Hot Water Tanks
Solar Collectors
This thermometer is an indispensable tool in industrial applications with its high performance and reliability.
ORFA With the assurance of Endüstri Mamüller Sanayi ve Ticaret A.Ş. , Pakkens Bottom Connection Thermometer allows you to obtain the most accurate results in your temperature measurements. güvencesi ile Pakkens Alt Bağlantılı Termometre, sıcaklık ölçümlerinizde en doğru sonuçları elde etmenizi sağlar.
| Tooth Measurement | : | 1/2'' |
| Connection Type | : | Sub-Linked |
| Screen Diameter Measurement | : | Ø160 mm |
| Calibration Class | : | Cl.2,0 |
| Immersion Length | : | 10 cm |
