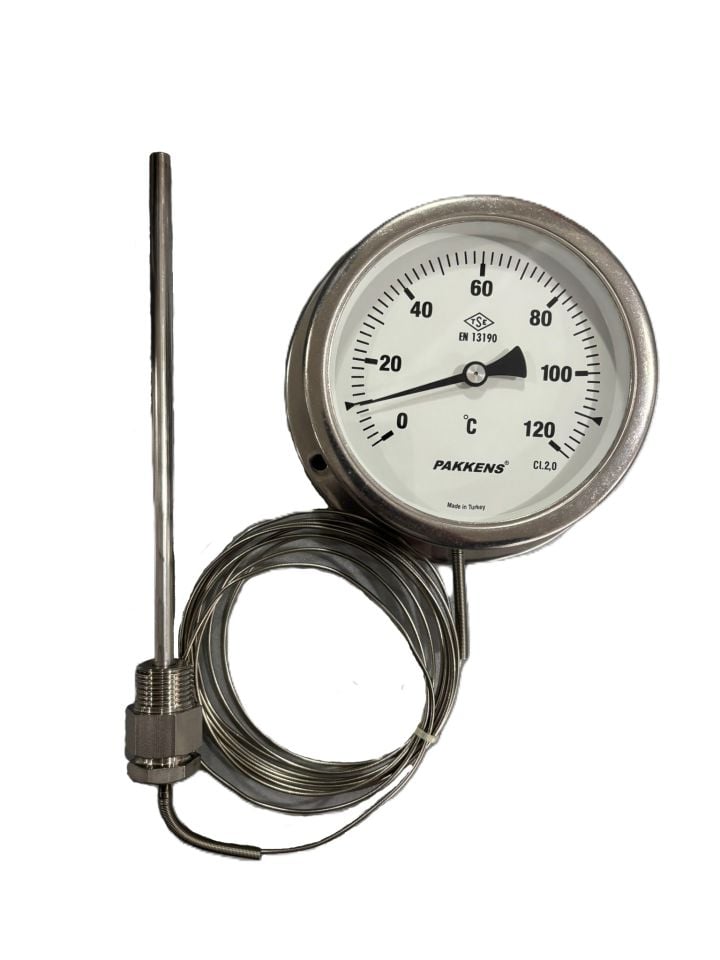

Pakkens Gas Filled Thermometer with Bottom Connection Ø100mm 120°C 3 MT
%10 Discounted Product
0 - Comment / Read Comments
90,00 EUR
81,00 EUR
Category
Brand
Stock Code
1005111505
Warranty Period
24 Month
Price
75,00 EUR + VAT
* Installments starting from 81,00 EUR!
Add to Cart
Pakkens Lower Connection Gas Thermometer Ø100 120°C 3 MT KL2.0
The Pakkens Thermometer with Lower Connection, Gas, Ø100 120°C 3 MT KL2.0, offered by ORFA Industrial Products, Inc., is a high-performance device designed in accordance with the EN 13190 standard and is particularly suitable for measuring the temperature of non-corrosive fluids such as copper alloys and other process industries. This thermometer operates on the principle of temperature-dependent change in volume of the thermometric gas within the capillary tube. The capillary tube's flexible structure allows it to be safely mounted at a different location away from the heat source, increasing both flexibility and reliability.
This thermometer, distinguished by its modular design, offers custom solutions with various combinations of nominal size, body length, diameter, and scale ranges. This makes a difference with its precision and durability in various industrial applications.
Product Features
Applications that do not require high measurement accuracy: These thermometers offer ideal solutions for situations where precision is not critical.
Compatible with fluids that do not attack copper alloys: Can be used safely for temperature measurements of non-corrosive liquids and gases.
Flexible installation: Thanks to the capillary tube, the temperature indicator can be mounted at a point away from the heat source, ensuring ease of placement and use.
Technical Information
Body Diameter : Ø100 mm
Temperature Range : -30°C to +120°C
Immersion Length : Maximum 3 meters
Precision : ±2% (CL 2.0)
Working Range: Full scale
Industrial Sector : Machinery manufacturers, heating and air conditioning systems, boiler manufacturers
Structural Features
Mounting Type : Bottom Mount
Body Material: Stainless AISI-304
Cover Material: Stainless AISI-304 steel ensures long-lasting use.
Dial: Aluminum
Temperature Element: Gas Filled
Connection: Threaded connection ensures quick and secure installation.
Standards and Certificates
Compliance: Fully compliant with EN 13190 standards.
Sensitivity Class: CL 2.0
Protection Class: IP41 protection class makes the device resistant to dust and water.
Working Principle
Gas Filling and Expansion: A thermometer contains a thermometric gas in a closed system connected by capillary tubes. This gas is sensitive to changes in the surrounding temperature. As the ambient temperature increases, the gas molecules gain more energy, causing the gas to expand. Similarly, when the temperature decreases, the gas contracts.
Pressure and Volume Change: The expansion or contraction of a gas changes the pressure inside a thermometer. This pressure change propagates through the capillary tube, resulting in mechanical movement on the thermometer's dial. This mechanical movement causes the pointer on the dial to indicate a specific temperature.
Capillary Tube and Mounting Flexibility: Because gas thermometers operate via a capillary tube, the temperature sensor and display can be located at different locations. This feature allows the thermometer to be mounted away from the heat source and within easy reach of the user. This allows the temperature measurement point and the viewing point of the measurement result to be independent of each other, providing flexibility and safety in use.
Accuracy and Measuring Range: Gas-Filled Thermometers with a Lower Connection have an accuracy class of ±2% (CL 2.0). This ensures accurate and reliable measurements over a wide temperature range. The accuracy of gas-filled thermometers is particularly important in areas where temperature fluctuations are constantly monitored, such as the process industry.
Application Areas
The Pakkens Gas Thermometer with Bottom Connection Ø100 120°C 3 MT KL2.0 is used in a wide range of applications, from the process industry to the food and beverage industry. It offers a reliable solution for temperature measurement, particularly in sectors such as heating and air conditioning systems, refrigeration systems, and machine manufacturing.
This thermometer stands out in ORFA Industrial Products Industry and Trade Inc. 's portfolio with its robust construction, reliable performance, and modular design. It's ideal for users seeking a durable, precise, and flexible solution for industrial temperature measurement.
| Tooth Measurement | : | 1/2'' |
| Connection Type | : | Sub-Linked |
| Screen Diameter Measurement | : | Ø100 mm |
| Calibration Class | : | Cl.2,0 |
| Immersion Length | : | 300 cm |
