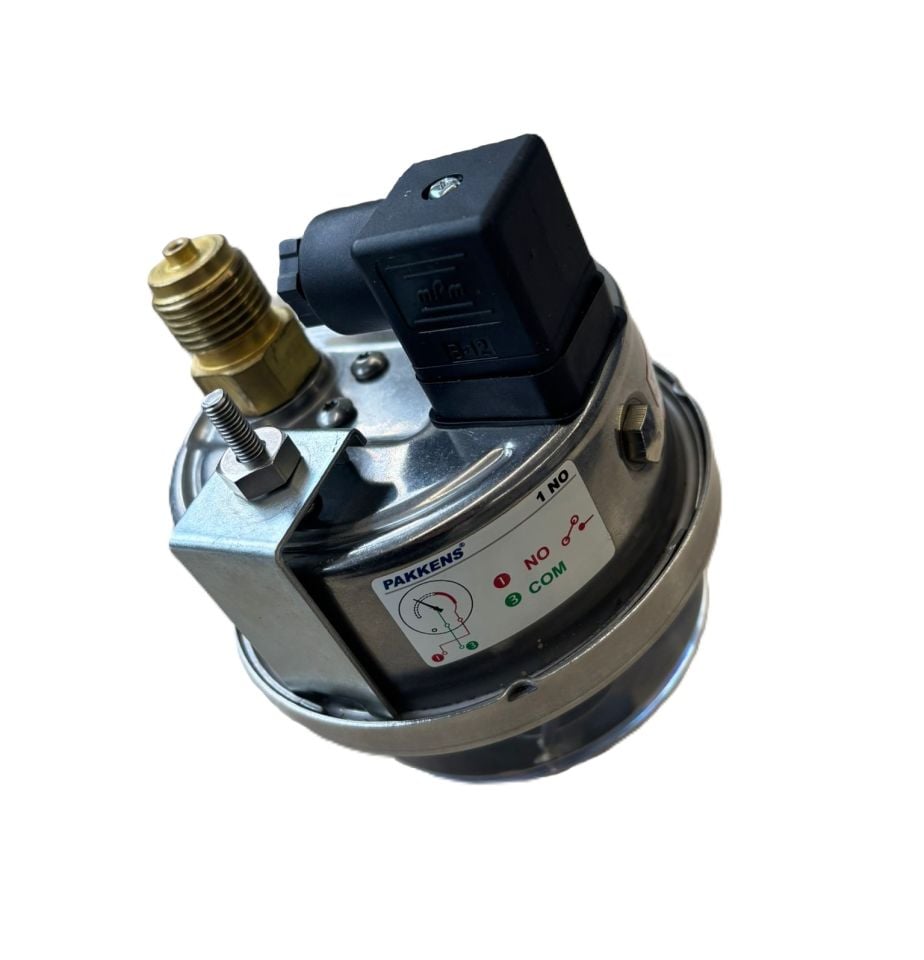

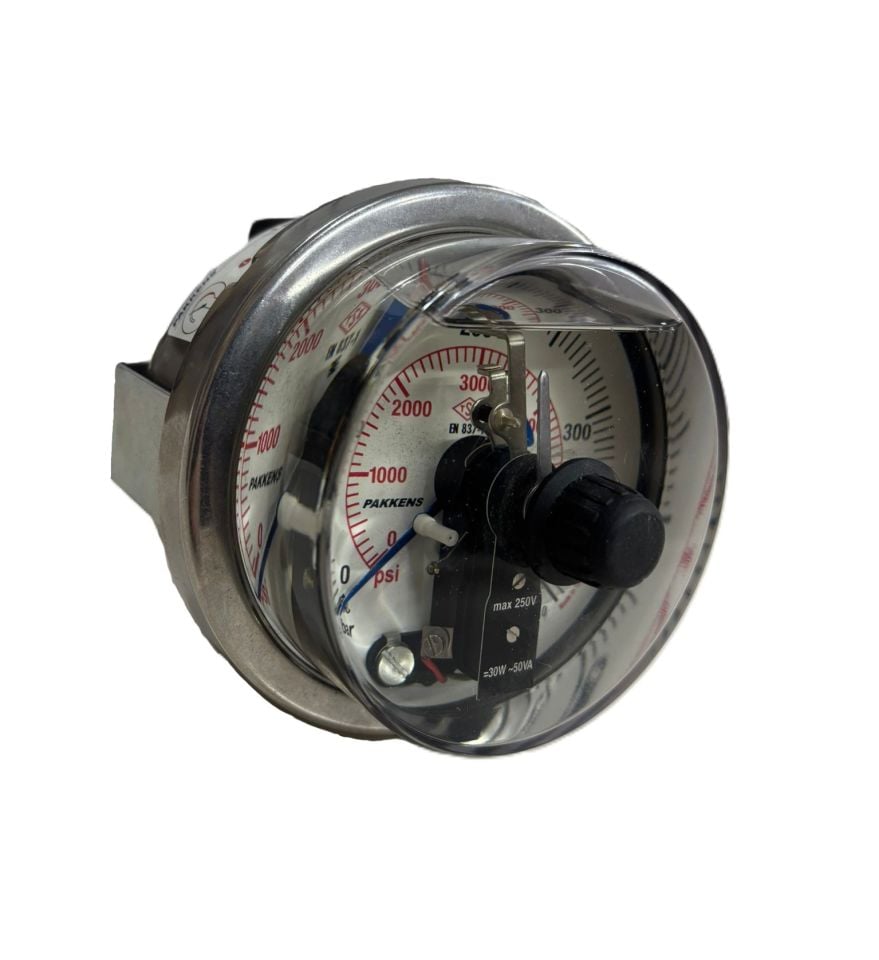

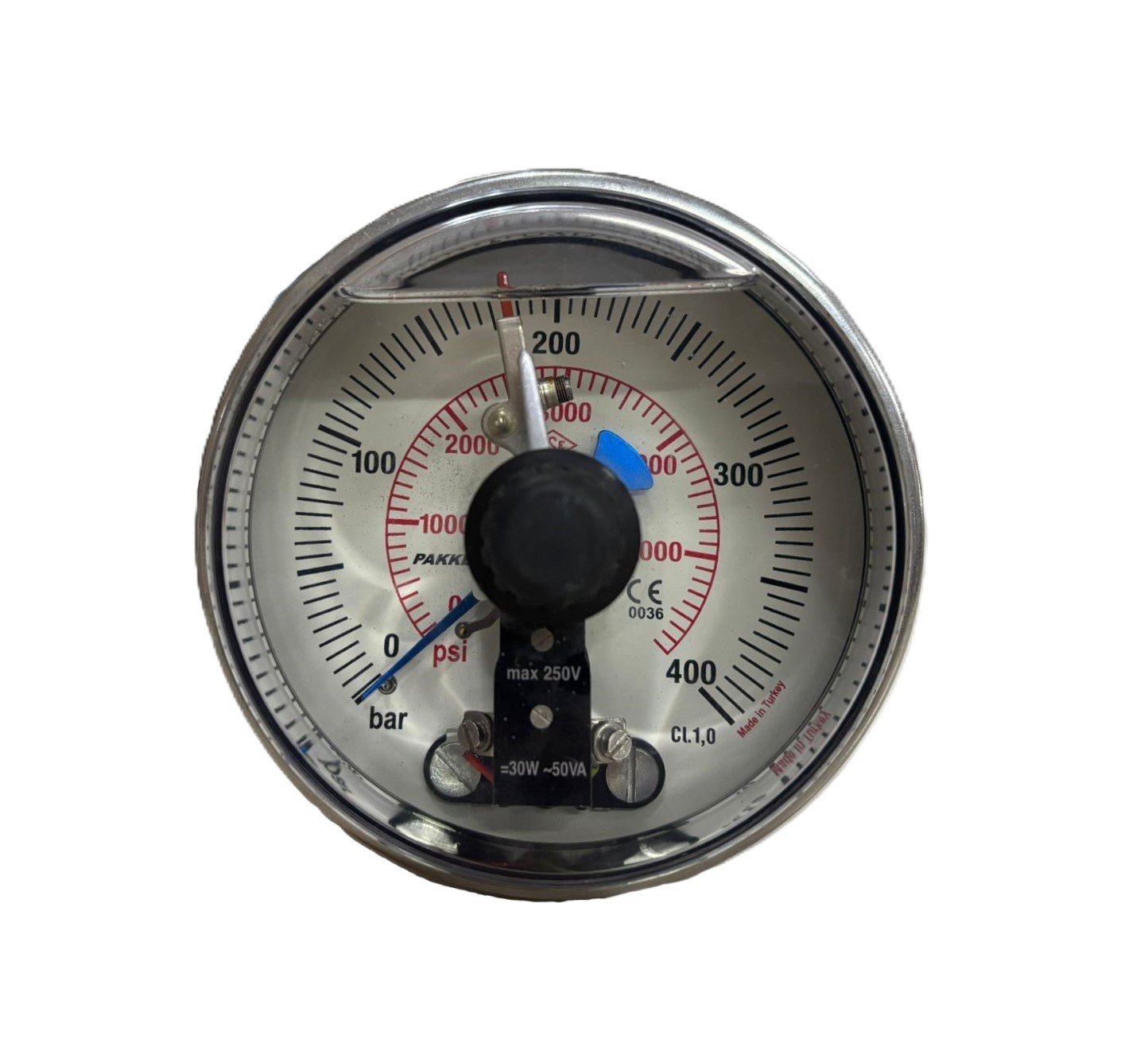

Pakkens Panel Type Contact Glycerin Manometer 400 Bar

Pakkens Panel Type Contact Glycerin Manometer: Precise Measurement and Automatic Control at High Pressure

Pakkens is one of Türkiye's leading manufacturers of pressure measuring devices. Pakkens Panel Type Contact Glycerin Manometer is a multifunctional device designed to both visually monitor and provide automatic control of the pressure of fluids in industrial installations, hydraulic systems, pressure vessels and pipelines.

This Panel Type Contact Glycerin Manometer, while offers easy readability with its 100 mm diameter , makes measurements in a high pressure range such as bar and .0 sensitivity class . Features such as "Contact" and "panel type" distinguish it from standard manometers.

What is a Panel Type Contact Glycerin Manometer and What Does It Do?

Panel Type Contact Glycerin Manometer is a control device that, in addition to its basic pressure measurement function, has contacts (switches) that open and close the electrical circuit when the set pressure limits are reached. The "NO Contact" (Normally Open Contact) in this model opens when the pressure falls below the set level and closes when it rises above it. In this way, a pump, valve or alarm system can be controlled automatically.

Main Features and Advantages of Panel Type Contact Glycerin Manometer:

• Dual Function: It both monitors the pressure visually and provides automatic control at certain pressure values.

• High Pressure Range (400 Bar): Suitable for hydraulic presses, high pressure pumps and other heavy-duty applications.

• Panel Type and Off-Axis Connection: It allows the manometer to be easily mounted on the control panel and the reading direction can be adjusted.

• Glycerin Structure: The glycerin liquid inside the dial prevents the hand from shaking, especially in vibrating environments, and provides more stable and accurate readings. It also prolongs the life of the manometer by protecting the internal mechanism from corrosion.

• High Precision (Cl. 1.0): Meets industrial measurement standards with an error tolerance of 1.0%.

• Durable Construction: Stainless steel body, glass and pirinç connection parts increase the resistance of the manometer against corrosion and harsh conditions.

• Standard Connection: Provides easy integration into the installation with 1/2'' threaded connection.

Panel Type Contact Glycerin Manometer Usage Areas:

• Hydraulic Systems: Hydraulic presses and power units.

• Boilers and Pressure Vessels: Monitoring boiler pressure and alarming at critical limits.

• Industrial Machines: All kinds of industrial machines working with high pressure.

• Pump Systems: Pressure control at the outlets of high pressure pumps.

• Automation Panels: As pressure sensor and switch integrated into control panels.
