Pedrollo 4PDm / 1.5 Deep Well Submersible Pump Motor 1.1 kW - 1.5 HP 220V
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.

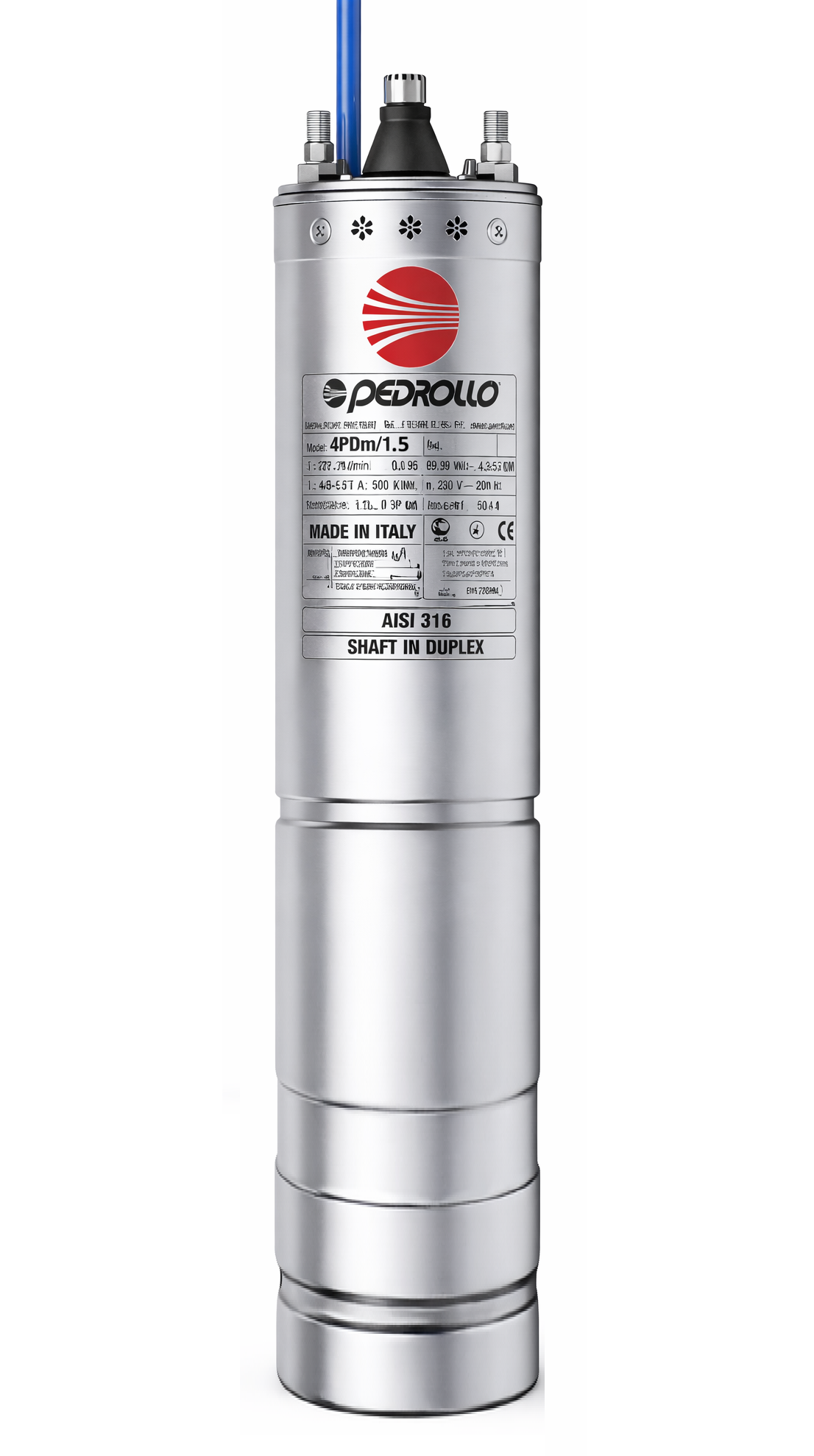

Pedrollo 4PDm / 1.5 Deep Well Submersible Pump Motor
1.1 kW - 1.5 HP Single-Phase: Italian Engineering and Power in Deep Wells
The Pedrollo 4PDm / 1.5 Submersible Pump Motor is a high-efficiency, oil-cooled motor specifically designed for 4-inch diameter deep well drilling. With 1.1 kW (1.5 HP) of power, it offers uninterrupted performance in agricultural irrigation, domestic water supply, and industrial applications.
Manufactured entirely with AISI 316 stainless steel housing and duplex stainless steel shaft technology, this motor exhibits extreme resistance to corrosion and can be safely used up to a submersion depth of 200 meters.
Durability and Cooling Technology
The motor's internal components are cooled with a special food-grade oil. This system minimizes friction while maintaining the motor's thermal balance, maximizing its service life. IP 68 protection class guarantees complete watertightness.
Technical Specifications
Business Standards
- Temperature Tolerance: Works flawlessly up to water temperatures of 35°C.
- Voltage Flexibility: Resistant to mains fluctuations with a voltage tolerance of ±10%.
- Restart: Optimized number of starts per year/hour for engine health in hourly cycles.
- Minimum Flow: To allow the motor to cool, it is recommended that water flows around the motor at a speed of at least 8 cm/sec.
Application Areas
- Drilling wells 4 inches and deeper.
- Garden and field irrigation systems.
- Water supply for detached houses and villas.
- Booster pump systems and pressurization lines.
Why Pedrollo 4PDm Series?
– Italian Quality: Global reliability and spare parts availability.
– Oil-cooled system: Its rewindable structure makes it repairable and ensures a long lifespan.
– Superior Material: AISI 316 and Duplex steel eliminate the risk of rust.
– High Efficiency: Maximum torque output with low energy consumption.
– Secure Design: Completely leak-proof under high pressure at a depth of 200 meters.
| Operating Voltage | : | 220 V AC |
| Power (P) | : | 1.5 HP - 1.1 KW |
