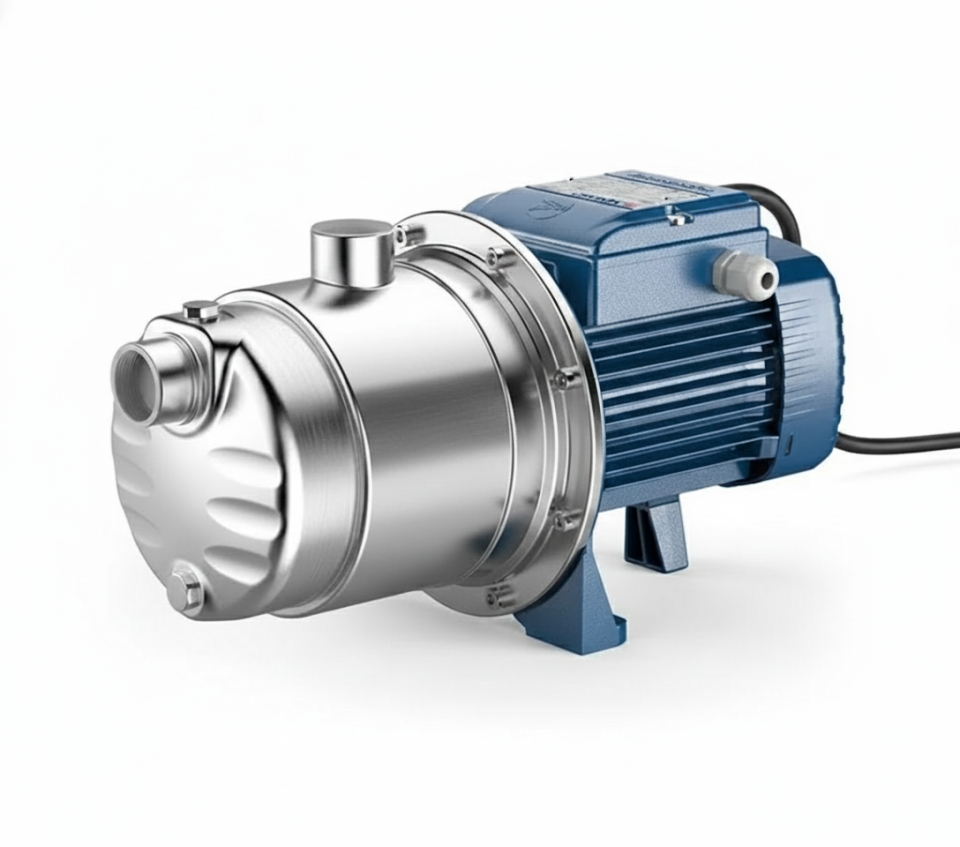

PEDROLLO JCRm 2C Stainless Body Jet Pump 0.75 kW - 1 HP 220V
PEDROLLO JCRm 2C Stainless Jet Pumpprovides long-lasting and reliable water transfer with its durable AISI 304 stainless steel body. Thanks to its self-priming structure, it offers stable performance even in systems with air mixture. It is preferred in domestic hydrophore systems, garden irrigation and clean water applications.
The pump operates with high efficiency even in low suction conditions, thanks to the special injector diffuser system. Its thermally protected motor ensures safe operation by automatically stopping the pump in case of overheating.
Brand / Model:
Brand / Model:
PEDROLLO JCRm 2C
Engine Power: 0.75 kW (1 HP)
Voltage:
220V (single phase)
Input / Output: 1” – 1”
Maximum Head:
50 m
Maximum Flow: 4.2 m³/h
Maximum Suction Depth:
9 m
Maximum Pressure: 6 bar
Transferred Fluid Temperature:
-10°C to +40°C
Ambient Temperature: Max. +40°C
Protection Class:
IP44 Insulation Class:
F class
Pump Body: AISI 304 stainless steel
Fan:
AISI 304 stainless steel
Motor Shaft:
Stainless steel Diffuser:
Stainless steel Diffuser:
Noryl material
Domestic water supply and booster systems
| Mechanical Seal: | Carbon-ceramic | Weight: | 11.5 kg | 10 | Jet Pump Usage Areas 10 |
|---|
| Operating Voltage | : | 220 V AC |
| Power (P) | : | 1 HP - 0.75 KW |
| Body Material | : | Stainless |
| Thread Size | : | 1'' |
