PEDROLLO VXm 15/35-ST Sewage Submersible Pump 1.5 HP 220V | ORFA Industrial
Brand
Stock Code
1205248059580650390831352
Warranty Period
24 Month
Price
1.178,42 USD + VAT
%32
801,32 USD
1.178,42 USD
Installments starting from 83,20 USD!

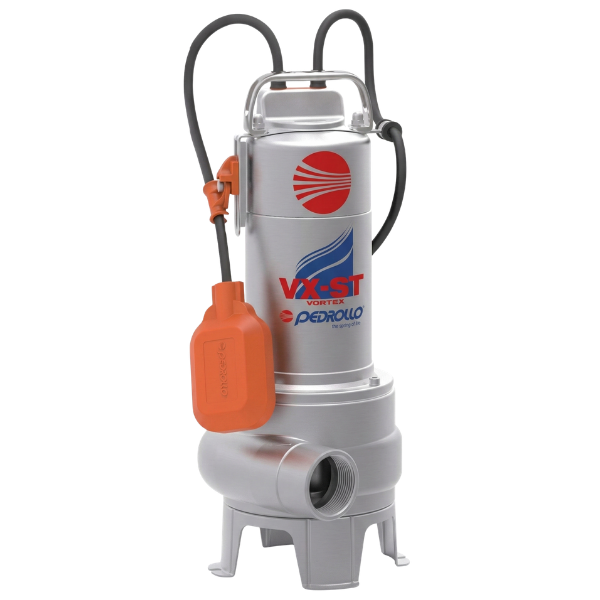

PEDROLLO VXm 15/35-ST Sewage Submersible Pump 1.5 HP 220V
Reliable Solution for Wastewater Drainage with ORFA Industrial Assurance
At the critical point of industrial and domestic wastewater management, the sewage submersible pump provides safe and efficient drainage of dirty water. Manufactured with Pedrollo quality, this sewage submersible pump operates with 1.5 HP (1.1 kW) motor power and 220V single-phase voltage. With AISI 304 stainless steel body and impeller, the sewage submersible pump offers excellent corrosion resistance. Using Vortex technology, it passes solid particles up to 40 mm diameter without clogging. With a maximum flow rate of 30 m³/h and a maximum head of 15 meters, this sewage submersible pump covers a wide range of applications. The integrated float switch enables automatic operation, preventing dry running and extending motor life. Equipped with thermal protection, the sewage submersible pump cuts off the circuit under overload conditions, enhancing safety. Designed with Italian engineering, the sewage submersible pump features a 5-meter cable and provides watertight sealing up to 5 meters submersion depth. With carbon-ceramic seal and oil seal for long life, the sewage submersible pump promises uninterrupted operation in demanding sewage and wastewater lines. Using a sewage submersible pump in your installation minimizes the risks of overflow and clogging.
Sewage Submersible Pump Technical Specifications
Performance Data (Flow / Head)
| Q (m³/h) | 0 | 3 | 6 | 12 | 18 | 21 | 24 | 27 | 30 | 39 |
|---|---|---|---|---|---|---|---|---|---|---|
| H (meters) | 15 | 14 | 13.5 | 11.5 | 9 | 7.5 | 6 | 4 | 2 | - |
Key Advantages of Sewage Submersible Pump
- Vortex Technology: The sewage submersible pump passes solid particles up to 40 mm without clogging.
- Corrosion Resistance: AISI 304 stainless steel ensures long life of the sewage submersible pump.
- Automatic Control: Integrated float switch for level-sensitive operation of the sewage submersible pump.
- Thermal Protection: Motor winding overload protection in the sewage submersible pump.
Sewage Submersible Pump Application Areas
- Septic tanks and sewage lines.
- Construction drainage and stormwater removal.
- Industrial wastewater collection pits.
- Agricultural drainage and groundwater dewatering.
Sewage Submersible Pump Technical Support and Supply
Contact the ORFA Industrial expert team for Pedrollo sewage submersible pump installation and spare parts support.Discover reliable performance with Pedrollo sewage submersible pump solutions for your wastewater management.
| Operating Voltage | : | 220 V AC |
| Power (P) | : | 1.5 HP - 1.1 KW |
| Body Material | : | Stainless |
| Thread Size | : | 1 1/2'' |
| Maximum Head (H) | : | 15 mSS |
| Flow rate Q : m³/h | : | 30 m³/h |
