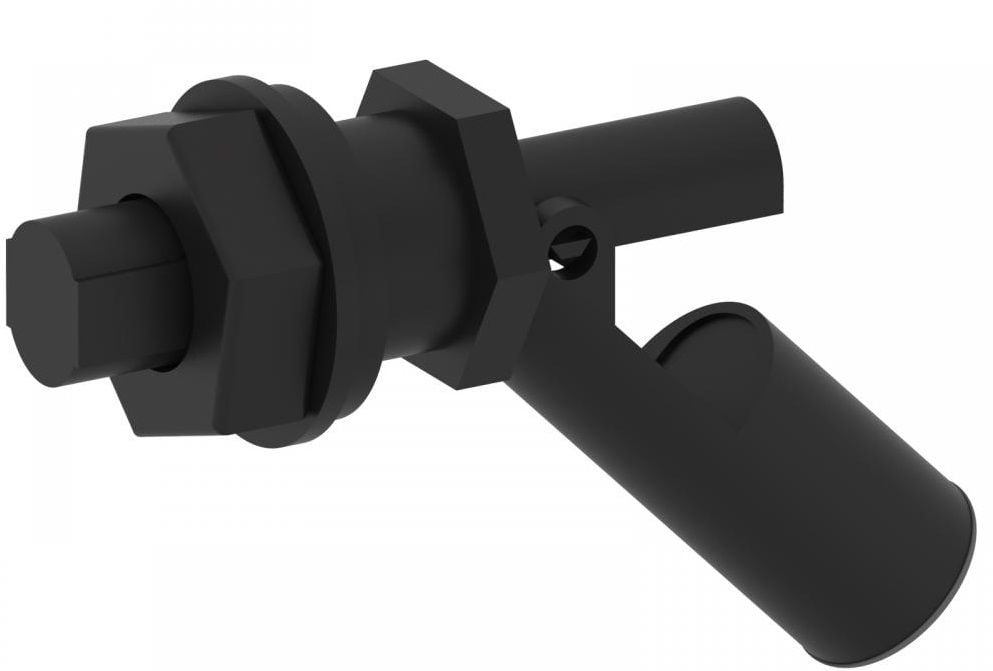

Plastic Level Switch (ELP Series)
The ELP series of Plastic Level Switches, offered by ORFA Industrial Products Industry and Trade Inc. , combines high performance and reliability in industrial tank and machinery applications. Their compact design saves space, and their plastic housing ensures trouble-free operation even in environments containing aggressive fluids. Their economical and user-friendly design offers an ideal solution for machine manufacturers and industrial applications.
Working Principle
The Plastic Level Switch operates through the collaboration of a float and a magnetic sensor. The magnet inside the float moves in response to the liquid level, and this movement affects the reed sensor inside the tube, opening or closing the electrical circuit. When the float is removed from the magnetic field, the sensor returns to its original position. This simple yet effective mechanism provides reliable monitoring of the liquid level within the tank or machine via a relay circuit.
Advantages
Economical and Efficient: It does not compromise on performance while providing cost-effective solutions.
Easy Installation: Thanks to its practical design, it provides quick and effortless installation.
Fast Delivery: Fast availability from stock accelerates your projects.
Durable Structure: Made entirely of Delrin material, it has high chemical resistance.
Technical Specifications
Float Material: PP
Wet Part Material: PP
Float Type: P10
Operating Temperature: -20 °C to +80 °C
Mechanical Connection: M16
Maximum Pressure: 4 bar
Minimum Density: 0.75 g/cm³
Electrical Connection: Cable
Number of Floats: 1 (Standard)
Number of Contacts: 1 x SPST - NA
Contact Current: 1 A
Maximum Contact Power: 10 W / VA
Maximum Supply Voltage: 200 VDC / 140 VAC
Areas of Use
Areas of Use
Plastic Level Switches offer a wide range of applications. Primary applications include level measurement in machinery, industrial tanks, boilers, and gaseous and liquid media. They can also be safely selected for specialized applications such as surface measurements and ambient temperature monitoring.
This compact and durable level switch performs exceptionally well, especially in confined spaces and environments where aggressive fluids are used. Offered with the quality and assurance of ORFA Industrial Products Industry and Trade Inc. , this product will help you achieve the best results in your industrial applications.
