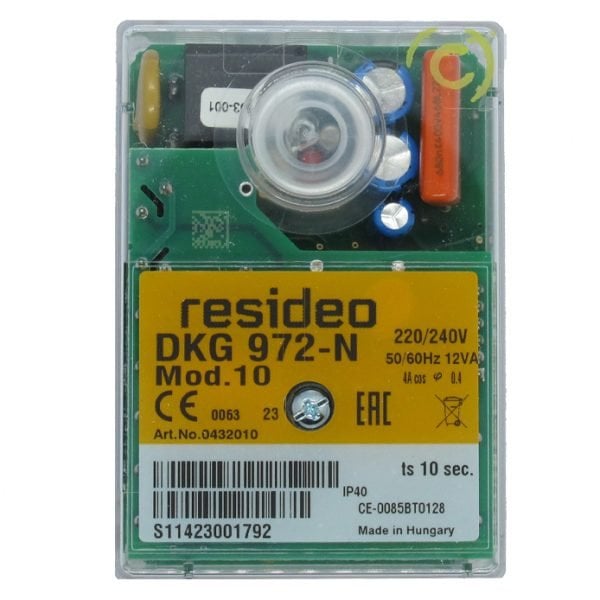

Satronic DKG 972-N MOD.10 Burner Automatic 0432010

Satronic DKG 972-N MOD.10 Burner Automatic is an advanced burner control unit designed to control and monitor two-stage atmospheric gas burners. Approved and certified in accordance with European standards and regulations, this device ensures reliable and safe operation. Microprocessor-based programming sequence delivers extremely stable timings regardless of voltage fluctuations, ambient temperature and on-off cycles.

Burner Automatic Highlights:

• Reliable Control: Ensures safe and efficient operation of gas burners.
• Microprocessor Based: Provides stable timings and advanced control functions.
• Information System: Continuously monitors the operating status of the burner and In case of a possible lockout, it notifies the reason.
• Low Voltage Protection: It ensures system safety by stopping operation when the voltage drops.
• Flame Detection: Ionization probe, infrared flame detector or UV flame It monitors the presence of flame with its sensor.
• Easy Installation: Provides easy installation with flexible cable entry points and spare terminals.
• Manual Reset: For manual reset and locking setting from the locking state button.

Burner Automatic Application Areas:

• Two-stage atmospheric gas burners
• Heating systems
• Industrial furnaces
• Boilers

Burner Automation Technical Specifications:

• Model: DKG 972-N MOD.
• Operating Voltage: /240V AC, 50Hz or 110/120V AC, 60Hz
• Power Consumption: Approx. 12 VA
• Flame Detectors: Ionization probe, IRD1020.1, UVD
• Protection Class: IP
• Ambient Temperature: -20°C ... +60°C (operating), -20°C ... +80°C (storage)
• Approvals: EN 298, EN
