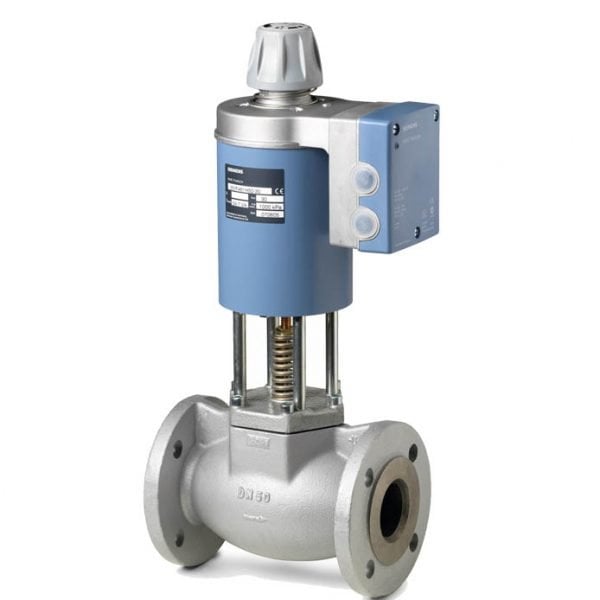

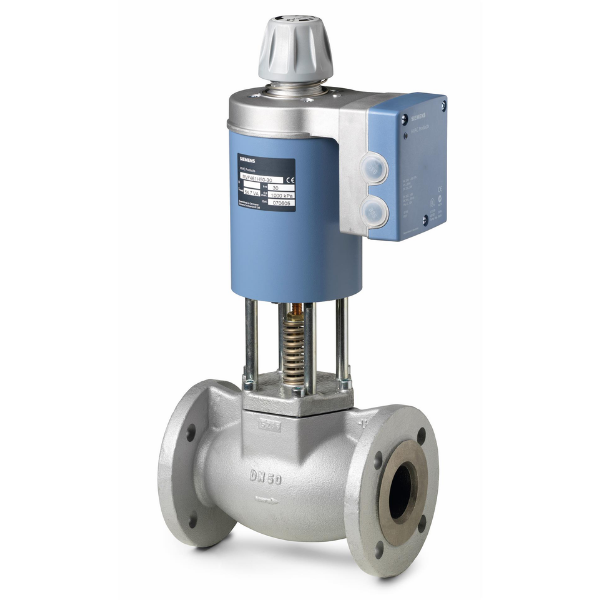

SIEMENS MVF461H50-30 Magnetic Control Valve DN50 PN16

Siemens MVF461H50-30 Magnetic Control Valve is a high performance Magnetic Control Valve that provides precise and efficient flow control in steam, superheated water and hot water, applications. With a nominal diameter of DN50 (2") and pressure class PN16, this valve is equipped with advanced features such as magnetic actuator, position control and position feedback.

Magnetic Control Valve Highlights:

• Fast Positioning: Responds quickly with positioning time of less than 2 seconds.
• Selectable Valve Characteristic: Provides equal percentage or linear characteristic option.
• Standard Interface: Compatible with 0/2 - 10 Vdc or 0/4 - 20 mA control signals.
• High Resolution: Provides precise control with a resolution of more than 1:1000.
• Wide Application Range: Can adapt to different flow requirements.
• Wear-Free Stroke Measurement: Provides long-lasting and reliable operation with inductive stroke measurement.
• Spring Return: When the power is cut off, the valve control path A → AB is closed.
• Position Control and Feedback: Provides precise control and monitoring.
• Low Friction: Efficient and energy-saving operation.
• No Maintenance Required: Long-lasting and trouble-free use.

Magnetic Control Valve Application Areas:

• District heating stations
• High temperature hot water applications
• Steam systems
• HVAC systems
• Industrial process control

Magnetic Control Valve Technical Specifications:

• Model: MVF461H50-
• Nominal Diameter: DN50 (2")
• Pressure Class: PN
• Operating Voltage: Vac or 24 Vdc
• Control Signal: /2 - 10 Vdc or 0/4 - 20 mA
• Cv Value: Material:
• Valve Body: Cast iron with globe graphite
  • Cover Flange: graphite cast iron
  • Saddle/Inner Valve: Stainless steel
  • Protection Class:
• IP Operating Ambient Temperature:
• -5°C ... +45°C -5°C ... +45°C
