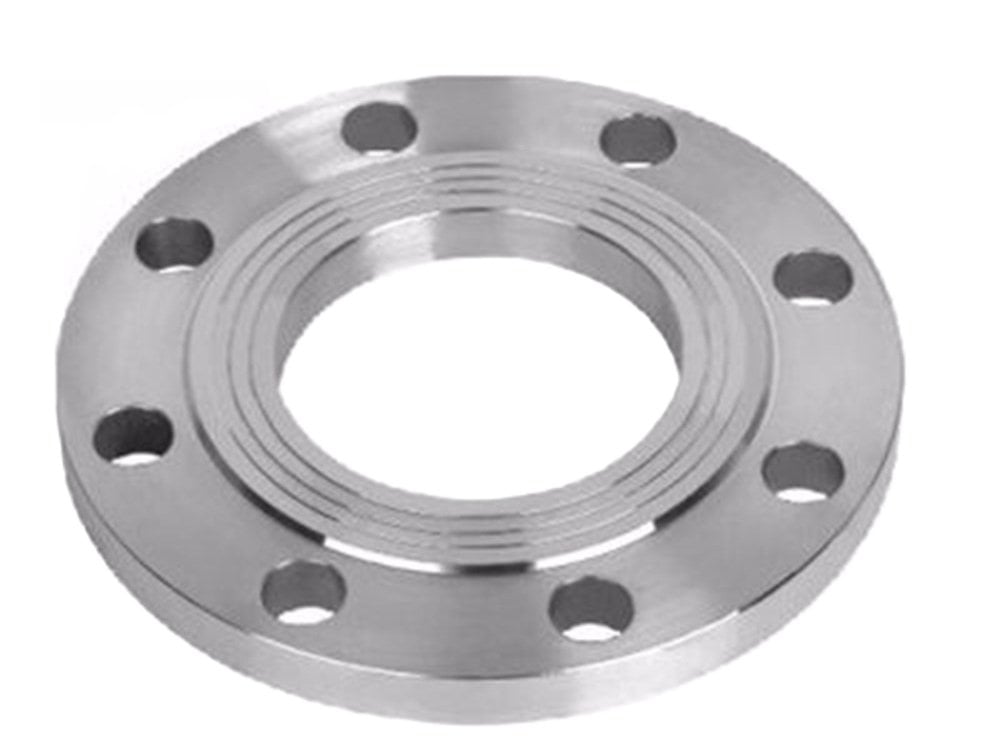

STAINLESS 304 GRADE FLAT FLANGE DN450 PN10

Corrosion Resistant Piping Connection Solution with ORFA Industrial Assurance

Used to provide reliable connections in industrial piping systems, the flat flange is manufactured from AISI304 stainless steel. Offered with a nominal diameter of DN450 and pressure rating PN10, this flat flange exhibits high resistance to corrosion. This flat flange, available from ORFA Industrial stock, is preferred in many sectors such as chemical, food, pharmaceutical, energy, and shipbuilding. Produced to high quality standards, the flat flange stands out for its ease of installation and sealing performance. Each flat flange unit can be safely used in liquid and gas lines. This flat flange, which you choose for your project, provides long-lasting performance. Securely connect your pipelines with the flat flange enhancing system safety. Thanks to the durability provided by AISI304 material, the flat flange maintains its reliability even in harsh conditions. Obtain a professional solution for your pipelines with the flat flange offered with ORFA assurance.

Flat Flange Technical Specification Details

Model Information: Stainless 304 Grade Flat Flange

Material: AISI304 Stainless Steel

Nominal Diameter (DN): DN450

Pressure Rating (PN): PN10

Type: Flat Flange (Raised Face - RF)

Corrosion Resistance: High (Resistant to acidic and basic environments)

Maximum Operating Temperature: 400°C (Passive state)

Standards: EN 1092-1, DIN 2576, BS 4504

Surface Finish: Acid Pickling and Passivation

Key Advantages of Flat Flange

Easy Installation: This flat flange has standard dimensions and can be installed quickly.
High Durability: Thanks to its AISI304 structure, the flat flange is resistant to corrosion and mechanical loads.
Leak Tightness: With its gasket surface, the flat flange provides a secure connection.
Wide Usage: This flat flange can be used in many industrial applications.

Application Areas of Flat Flange

Chemical and petrochemical piping systems.
Food and beverage industry process lines.
Pharmaceutical and biotechnology clean piping systems.
Water treatment plants, power plants, and shipbuilding.

Discover reliable and long-lasting solutions for your piping connections with Stainless 304 Grade Flat Flange.

Body Material	:	Stainless
Nominal Diameter (DN)	:	DN 450
