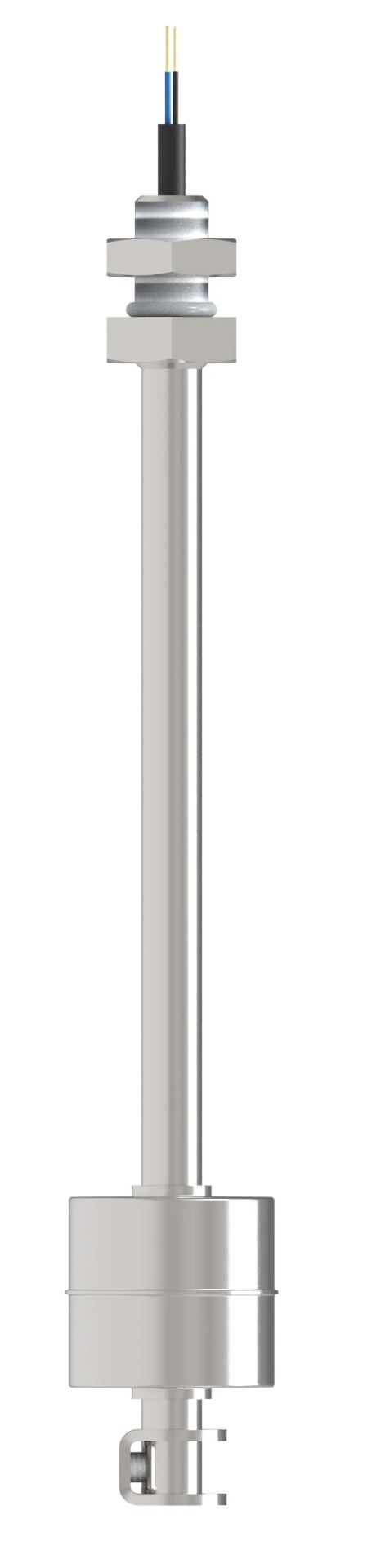

Stainless Steel Float Level Switch ELSm
Stainless Steel Float Level Switch (ELSm Series)
The Stainless Steel Float Level Switch (ELSm Series), offered by ORFA Industrial Products Industry and Trade Inc. , is a solution that provides high precision and reliability in liquid level measurement and control. Equipped with advanced magnetic float technology, this switch seamlessly opens and closes circuits based on liquid level. Available with a variety of housing connection and material options to suit different application needs, the ELSm Series stands out with its user-friendly design and flexible applications.
Working Principle:
The ELSm Series Float Level Switch operates by using a magnetic field generated by the magnet inside the float, which moves along the tube according to the liquid level. This magnetic field interacts with the reed sensor, opening or closing the electrical circuit. This process generates level information through the circuit, which then transmits alarm or control signals via relay circuits or control devices. The enclosure of the relay output ensures long-lasting and reliable operation.
Product Advantages:
High Material Compatibility: It is offered in different material options such as 304 stainless steel depending on the fluid properties, thus providing a wide range of usage areas.
Different Contact Options: Various electrical contact options are offered depending on needs.
Flexible Application Areas: With its wide range of applications, it can be used in many different areas from industrial facilities to the maritime sector.
Technical Specifications:
Float Material: 304 Stainless Steel (Standard)
Wet Part Material: 304 Stainless Steel (Standard)
Pipe Material: 304 Stainless Steel (Standard)
Float Type: S1Y (Standard)
Operating Temperature: Maximum 125°C
Mechanical Connection: R 1/8'' + Nut (Standard)
Electrical Connection: Wired
Number of Buoys: 1 (Standard)
Immersion Length: Maximum 150 mm
Number of Contacts: 1 x SPST - NA (Standard)
Contact Current: 1 Ampere (Standard)
Maximum Pressure: 10 bar
Density: 0.80 g/cm³
Maximum Contact Power: 10 W / VA
Maximum Supply Voltage: 200 VDC / 140 VAC (Standard)
Areas of Use:
Industrial Tank Level Control: Monitoring and controlling the liquid level of tanks in factories and industrial facilities.
Boiler and Tank Level Control: Level measurement and safety control of liquid steam boilers and storage tanks.
Marine Applications: Used to control the level of clean water and waste water tanks on yachts.
Hydraulic Oil Tanks: Measuring and monitoring the level of oil tanks used in hydraulic systems.
Stainless Steel Float Level Switch (ELSm Series) is a reliable and long-lasting solution for your industrial level measurement needs with its durability, wide application areas and customizable structure.
