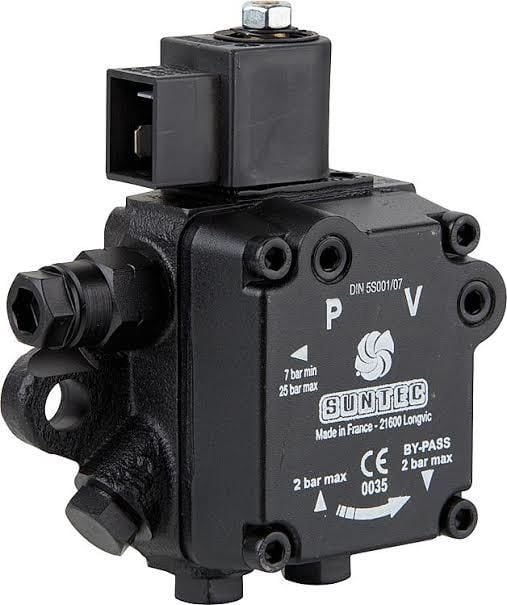

Suntec Diesel Fuel Pump AP 57 C
%50 Discounted Product
0 - Comment / Read Comments
321,89 EUR
160,94 EUR
Category
Brand
Stock Code
01.05.02.007.302.02
Warranty Period
24 Month
Price
268,24 EUR + VAT
* Installments starting from 160,94 EUR!
Add to Cart
Suntec Diesel Fuel Pump: Reliable Performance and Superior Efficiency
ORFA Industrial Products Industry and Trade Inc. offers the Suntec AP57C Diesel Fuel Pump. This high-performance fuel pump is designed to best meet the needs of the industrial sector. The Suntec AP57C stands out with its reliability, easy installation, and low noise level, increasing your business's efficiency.
Technical Specifications
Mounting: Flange or hub mounting in accordance with EN 225 standard
Connection Threads: Cylindrical according to ISO 228/1 standard
Inlet and Return: G 1/4 (Surface seal on Revision 6 models)
Nozzle Outlet : G 1/8
Pressure Gauge Output: G 1/8
Vacuum Gauge Output: G 1/8
Valve Function: Pressure regulation
Filter: Open area: 6 cm² - Aperture size: 150 µm
Shaft: Ø 8 mm according to EN 225
By-pass Plug: Must be installed for two-pipe system; must be removed with a 4 mm Allen wrench for single-pipe system.
Hydraulic Data
Pressure Range (For Diesel): 10/28 Bar
Capacity: 57/24 kg/h
Working Viscosity: 2-12 mm²/s (cSt)
Oil Temperature: Maximum 60°C inside the pump
Inlet Pressure: Maximum 2 bar
Internal Pressure: Maximum 0.45 bar, to prevent oil from separating from air
Rotation Speed : Maximum 3600 rpm
Torque: 0.1 Nm
Solenoid Valve Features
Voltage: 220-240 V
Consumption: Maximum 9 W
Maximum Pressure: 28 bar
Protection Class: IP 54 according to EN 60529 standard (when used with Suntec connector cable)
Dimensions
Dimensions
Revision 6 Pumps: Inlet, outlet and internal bypass plug
Revision 4 Pumps: Return connection and seal surface
Pump Example: "C" indicates rotation and nozzle output
Areas of Use
Areas of Use
The Suntec AP57C Diesel Fuel Pump delivers reliable and efficient performance in a wide range of applications. Key applications include:
Industrial Boilers: Reliably meet high heating needs.
Industrial Furnaces and Furnaces: Provides efficient and continuous fuel supply.
Heating Systems: It is an ideal solution with its energy efficiency and low noise level.
Drying Systems: Increases operational efficiency with constant and reliable fuel supply.
At ORFA Industrial Products Industry and Trade Inc. , we are ready to best meet your business needs with the superior features and reliable performance of the Suntec AP57C Diesel Fuel Pump. For more information and to place an order, please contact us.
