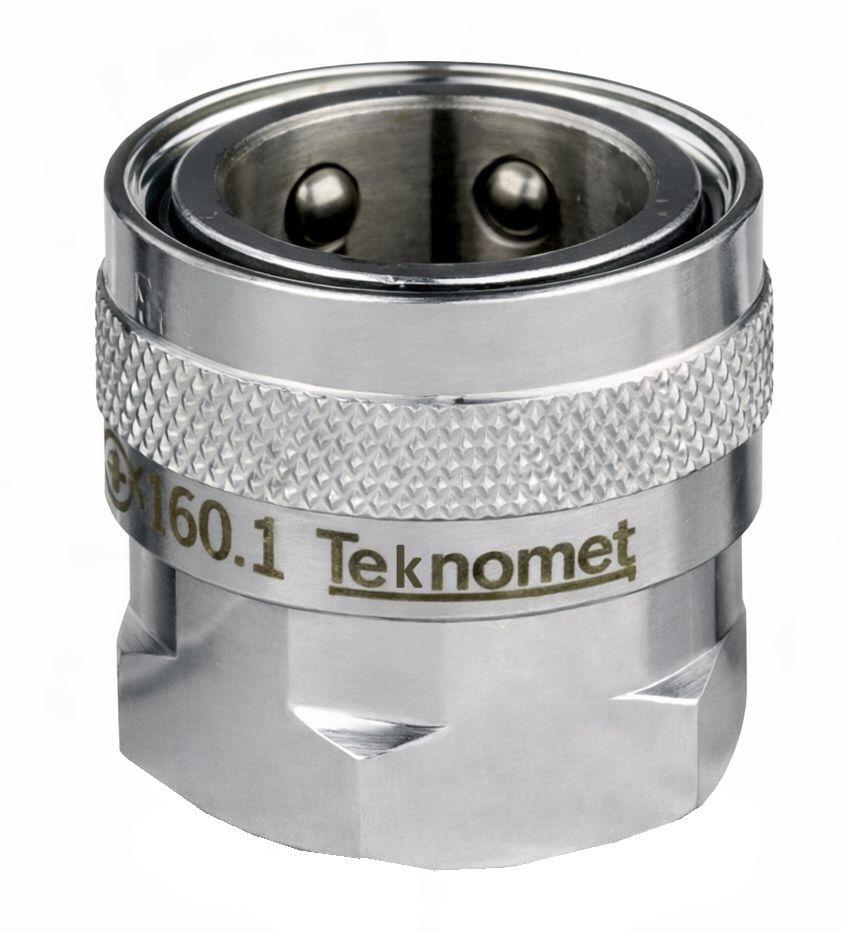

TEKNO-MET T160 Series Quick Coupling Female Body 3/4''

The TEKNO-MET T160 Series Quick Coupling Female Body BSP 3/4'' is an internally threaded (female thread) quick coupling body designed to provide fast, safe, and leak-proof connections in industrial water systems. With its high flow capacity and low pressure drop, it offers reliable performance under continuous operation conditions.

Fully interchangeable with DYROS 2000 and NITO 3/4” (5360) systems, the T160 series offers the advantage of brand-independent use in existing installations. Thanks to its chrome-plated brass body structure, it is resistant to corrosion and offers a long service life.

Working Principle

When the female quick coupling body is connected to the male coupling end, it automatically locks thanks to stainless steel balls and a spring mechanism. The elastomer seal used in the internal structure ensures a complete seal at the connection point. Thanks to the optimized internal flow channel, minimum pressure loss occurs even at high flow rates.

Technical Specifications

Material Structure (Standard Version)

Gasket and Temperature Range

• Nitrile (N): -20 °C / +100 °C
• EPDM: -40 °C / +150 °C
• FPM (Viton): -20 °C / +180 °C

Areas of Application

• Industrial water installations
• Machine and equipment cooling systems
• Washing and cleaning lines
• Production facilities
• High-flow water applications
