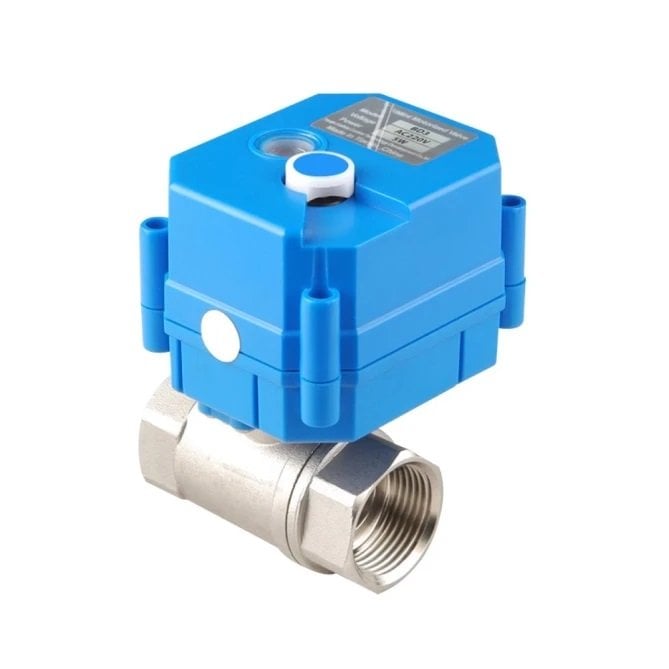

TORK RMEA-015 Mini Elektrik Aktüatörlü Vana - 220VAC
%40 Discounted Product
0 - Comment / Read Comments
269,87 USD
161,92 USD
Category
Brand
Stock Code
RMEA-015-220VAC-01
Warranty Period
24 Month
Price
224,89 USD + VAT
* Installments starting from 161,92 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
Tork Mini Electric Actuated Valve - Superior Performance and Compact Design
ORFA Mini Electric Actuated Valve, which we offer as Endüstri Mamüller Sanayi ve Ticaret A.Ş. , is ideal for small-scale industrial applications with its compact structure and high performance. Despite its small size, this valve has been developed to provide high precision flow control. Powered by an electric motor, this valve reliably controls the liquid flow in the pipeline by opening and closing the ball-shaped element. Drawing attention with its high durability and long service life, Mini Electric Actuated Valve meets modern industrial needs.
Mini Electric Actuated Valve Features:
Mini Size Dimensions: Compact design that fits perfectly into small equipment.
Mini Size Dimensions: Compact design that fits perfectly into small equipment.
Patented Technology: High sealing and durability thanks to the sliding seal structure.
Long Service Life: Trouble-free operating capacity between 70,000 and 100,000 cycles.
Low Operating Current: It works with low power consumption by providing energy efficiency.
Manual Usage Possibility: Safe and easy manual use feature in emergency situations.
IP67 Protection Class: With its dust-proof and water-resistant structure, it can be used safely even in harsh conditions.
High Humidity Resistance : Reliable performance in environments with humidity below 95%.
Mini Electric Actuated Valve Technical Information:
Dimension: /2"
Body Material: Stainless Steel
Valve Ball: Stainless Steel
Ball Gasket: PTFE Provides superior sealing with (Teflon) material.
O-ring Material: NBR
Number of Paths: -way
Operating Temperature: -20°C < t < 45°C
Operating Voltage: V AC
Maximum Power: W
Maximum Pressure: Bar
Maximum Torque: Nm
On-Off Time: - 7 seconds
Protection Class: IP
Protection Class: IP
Mini Electric Actuated Valve Working Principle
Mini Electric Actuated Valve is a compact valve designed to control liquid flow and works with the help of an actuator that converts electrical energy into mechanical movement. This principle of operation allows the valve to open and close the flow of liquid in the pipeline. The basic components of the valve include the actuator, valve body, ball (ball element), seal system, and control electronics.
Role of Electric Motor and Actuator
The main working principle of the actuator valve is based on the conversion of the energy provided by the electric motor into mechanical movement through the actuator. When the electric motor is started, the rotary motion of the motor is transmitted to the actuator. This movement causes the ball-shaped element inside the valve to rotate. The ball is the key element that controls the opening or closing of the valve.
Operation of Valve Mechanism
The ball element inside the Mini Electric Actuated Valve contains a hole (port) to allow the passage of fluid. When the electric motor drives the actuator, the spherical element rotates around its axis. This rotation ensures that the hole in the spherical element is aligned with the pipeline, thus ensuring fluid flow. When the spherical element rotates 90 degrees, the hole is in a perpendicular position to the pipeline and the liquid flow is interrupted. In this way, the valve performs the function of opening and closing.
Slide Seal Structure and Sealing
Mini Electric Actuated Valve is equipped with a patented sliding seal structure. This seal system prevents liquid leakage by closing the gaps between the ball and valve body when the valve is closed. The gasket made of PTFE (Teflon) material provides excellent sealing even under high temperature and pressure. Additionally, NBR O-rings provide additional sealing at the valve's mounting points.
Automatic and Manual Control
Mini Electric Actuated Valve offers manual operation as well as automatic control. In cases such as a power outage, the valve can be opened and closed with the help of a manual lever. This increases security, especially in critical applications.
Flow Control and Performance
The low operating current technology used in the Mini Electric Actuated Valve saves energy and contributes to the long service life of the valve. The opening and closing time of the valve varies between 5-7 seconds, providing fast and precise flow control. It offers a reliable solution in various industrial applications with its pressure resistance up to 10 Bar and 2 Nm maximum torque capacity.
Usage Areas of Mini Electric Actuated Valve
HVAC Systems: Provides precise flow control in heating, ventilation and air conditioning systems.
Water Treatment Plants: Used to process water safely and effectively.
Chemical Processing: Ideal for safe and precise dosing and transportation of chemicals.
Automatic Control Systems: Optimizes industrial processes by providing automatic control of small equipment.
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. 's Mini Electric Actuated Valve is a perfect solution for modern industrial applications, designed to achieve big jobs with its small dimensions. This long-lasting, durable and energy-efficient valve will be your most reliable partner in your projects that require high performance.
