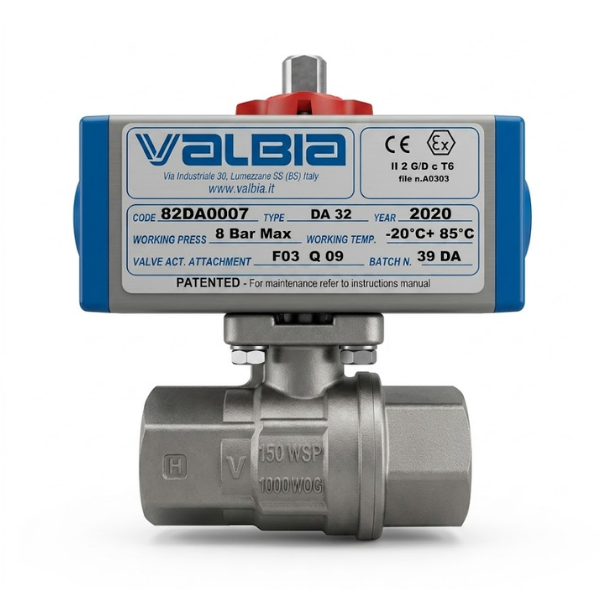

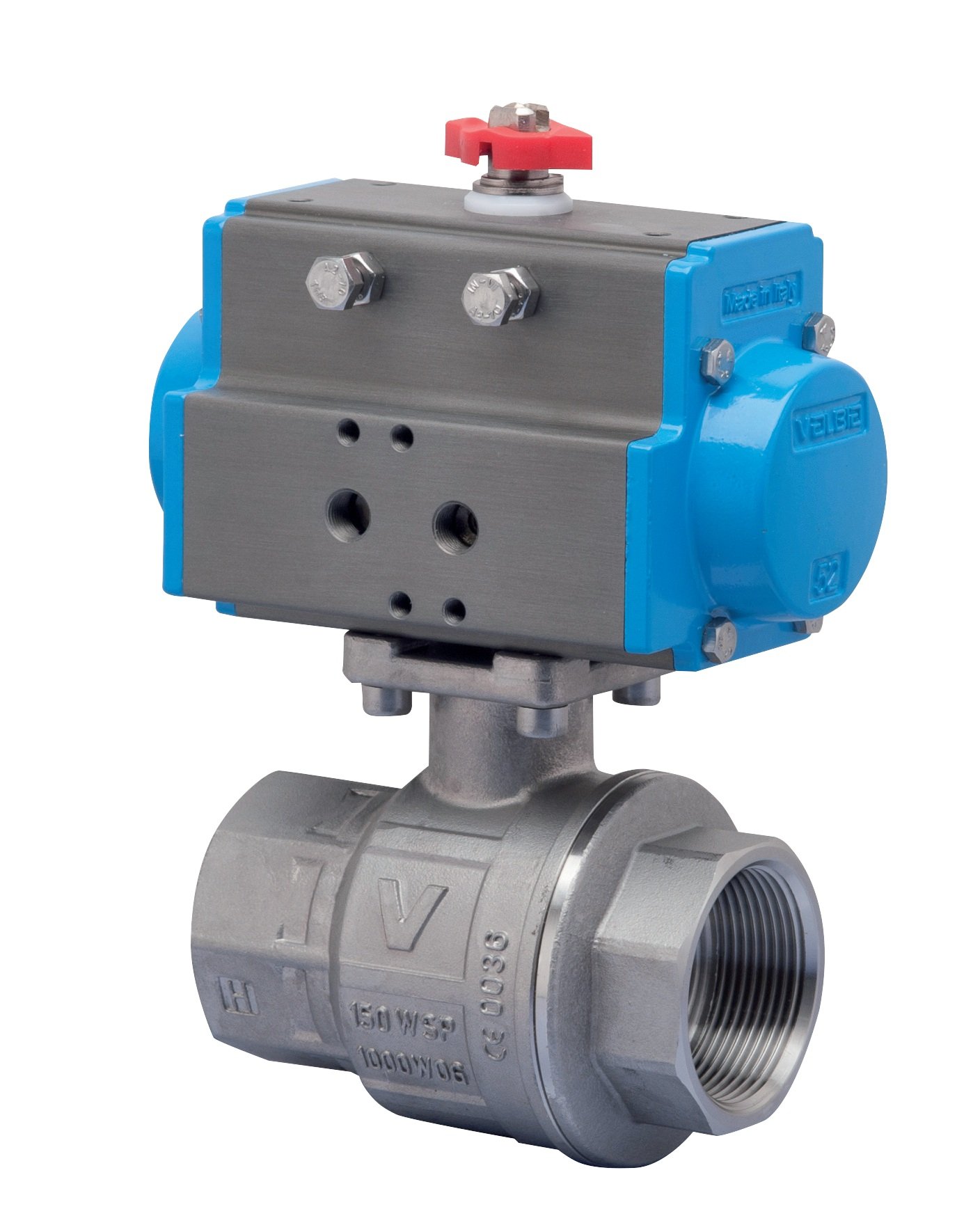

Valbia 8P00030008 AISI 316 Stainless Ball Valve with Pneumatic Actuator 11/2'' PN64

Valbia 8P00030008 AISI 316 Stainless Ball Valve with Pneumatic Actuator 1 1/2" PN

ORFA Industrial Products Industry and Trade Inc. As, we offer high quality valve solutions that provide superior performance and durability in your industrial processes. Valbia brand's AISI316 Stainless Ball Valve with Pneumatic Actuator, code 8P00030008, offers a reliable solution in your demanding applications with its 1 1/2" (DN40) size and PN64 pressure class.

This AISI316 Stainless Ball Valve with Pneumatic Actuator is a combination of Valpres 703000 ball valve and Valbia DA52 double acting pneumatic actuator.

AISI 316 Stainless Ball Valve with Pneumatic Actuator Product Features:

• Valpres 703000 Ball Valve:
  • AISI 316 (CF8M) stainless steel body: Corrosion resistance and durability.
  • Full bore design: Low pressure loss and high flow capacity.
  • F/F Female thread connection: Easy installation.
  • -20°C to +160°C Operating temperature: Wide range of applications.
  • ISO compliance with standards.
• Valbia DA52 Pneumatic Actuator:
  • Double-action operation: Fast and precise control.
  • Hard anodized aluminum body: Lightness and durability.
  • Visual position indicator: Easy monitoring.
  • /8" BSP pneumatic connections: Standard compatibility.
  • Bi-directional on/off travel stops: Safe operation.
  • NBR gaskets: -20°C to +85°C operating temperature.
  • Bar g maximum air supply pressure.
  • ATEX II 2GD T6 compatibility: Safe use in explosive atmospheres.
  • ISO 5211 and DIN 3337 compatible mounting.
  • Adjustable stroke movement.
  • NAMUR standard solenoid valve and device assembly.
  • Pre-lubricated for life.
  • Optional VITON and SILICONE gaskets.
  • Antistatic device.

Pneumatic Actuated AISI 316 Stainless Ball Valve Usage Areas:

• Chemical and petrochemical industry
• Food and pharmaceutical industry
• Water and wastewater treatment
• Energy production
• HVAC systems
• Automation systems
• Marine
• Control of aggressive fluids

Valbia Pneumatic Actuated Stainless Ball Valve

• High Performance: Precise control, high flow capacity and reliable operation.
• Durability: Corrosion-resistant stainless steel body and robust actuator.
• Safety: Safe use in explosive environments with ATEX certification.
• Efficiency: Low pressure loss and energy saving.
• Versatility: Wide temperature range and compatibility with different fluids.

ORFA As Industrial Products, you can contact us to get detailed information about Valbia 8P00030008 Pneumatic Actuated AISI 316 Stainless Ball Valve and our other industrial valve solutions. Our expert team will be pleased to offer the most suitable solutions for your needs.
