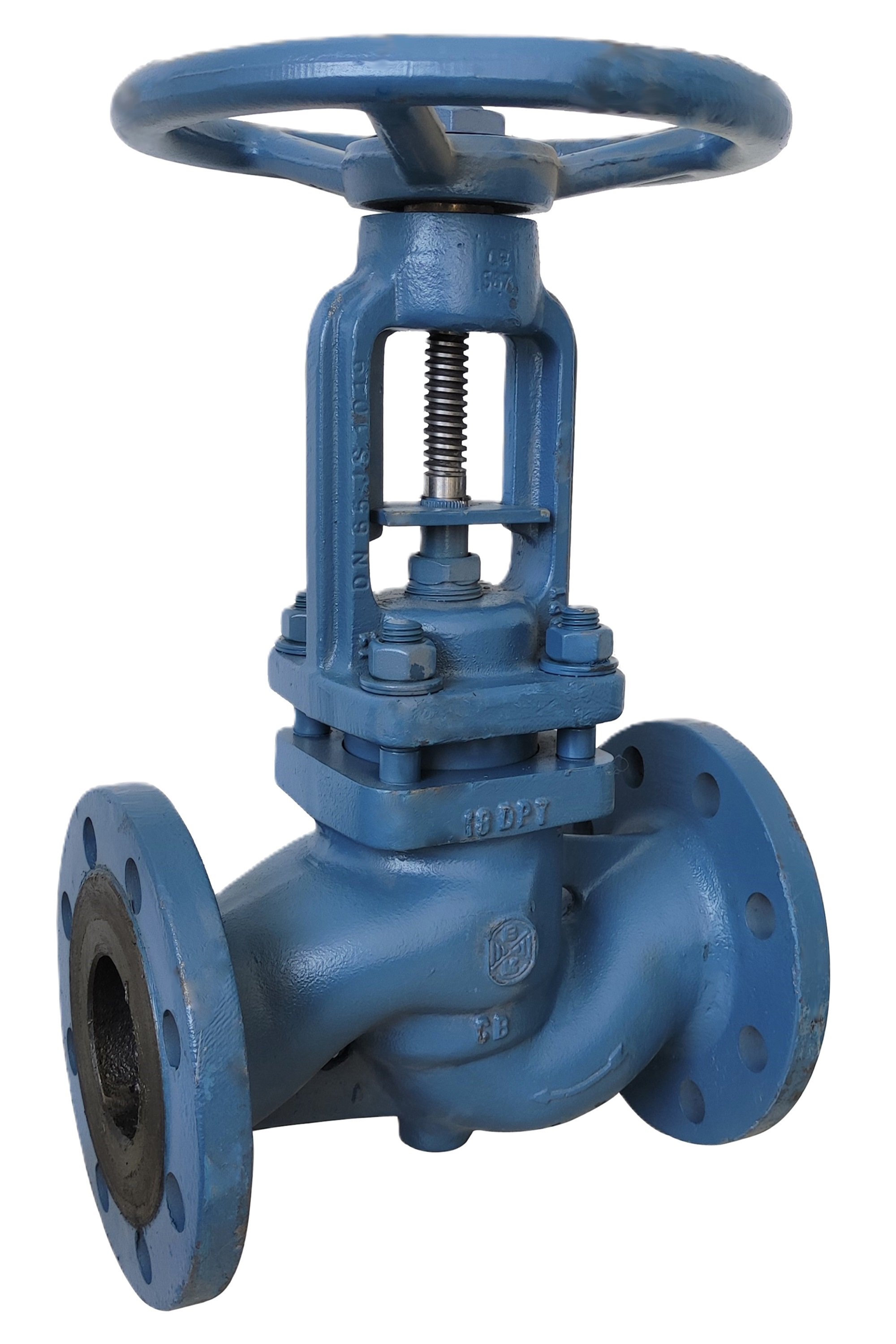

VALFTEK Denge Pistonlu Vana DN200 PN40
VALFTEK Balanced Piston Valve DN200 PN40
Precision Flow Control at High Pressure with ORFA Industrial Assurance
Designed to safely manage high pressure and temperature conditions in critical industrial applications, the balanced piston valve provides balanced and controlled fluid passage in process lines. Manufactured by VALFTEK, this DN200 PN40 balanced piston valve offers significantly more precise flow balancing, resistance to high pressure, and excellent sealing compared to conventional ball and butterfly valves. By balancing the differential pressure on the piston, this balanced piston valve exhibits stable behavior during opening and closing operations, absorbing surges and fluctuations from the system, thereby protecting equipment. Available in ORFA Industrial stocks to meet the need for safe valve solutions in refineries, energy production, petrochemical, and heating-cooling sectors, this balanced piston valve with nominal diameter DN200 and pressure class PN40 delivers optimal performance in medium to large capacity lines. Thanks to the GGG40 ductile iron body combining mechanical strength and corrosion resistance, the balanced piston valve with stainless steel piston and chrome-plated stem ensures long service life. The PTFE/graphite seal system, resistant to high temperature and pressure, ensures safe operation in the range of -10°C to +400°C, making this balanced piston valve suitable for extreme environments. With flanged connection complying with EN 1092-2 standard, the balanced piston valve is easy to install in both vertical and horizontal positions. Each balanced piston valve unit undergoes rigorous leak testing per EN 12266-1, ensuring maximum system reliability. Choose the VALFTEK balanced piston valve for your industrial applications and discover the advantages of surge reduction, pressure balancing, and tight sealing.
Balanced Piston Valve Technical Specifications
Balanced Piston Valve Key Advantages
- Precise Flow Balancing: Through differential pressure balancing, the balanced piston valve ensures steady flow in the line.
- Surge Reduction: The piston mechanism absorbs system fluctuations, protecting equipment.
- Excellent Sealing: PTFE/graphite seal system and EN 12266-1 tests provide a reliable connection.
- Wide Temperature Range: Operating from -10°C to +400°C, the balanced piston valve adapts to extreme environments.
Balanced Piston Valve Application Areas
- Use of balanced piston valve in product transfer lines in refineries and petrochemical plants.
- Process management in steam and hot water systems of thermal power plants.
- Pressure control and flow balancing applications in centralized heating-cooling networks.
- Fluid distribution and balancing under high pressure in industrial cooling systems.
Ensure safe pressure management and surge protection in your critical process lines with the VALFTEK balanced piston valve DN200 PN40.
| Body Material | : | Ductile Iron |
| Pressure Class (PN) | : | PN 40 |
| Nominal Diameter (DN) | : | DN 200 |
