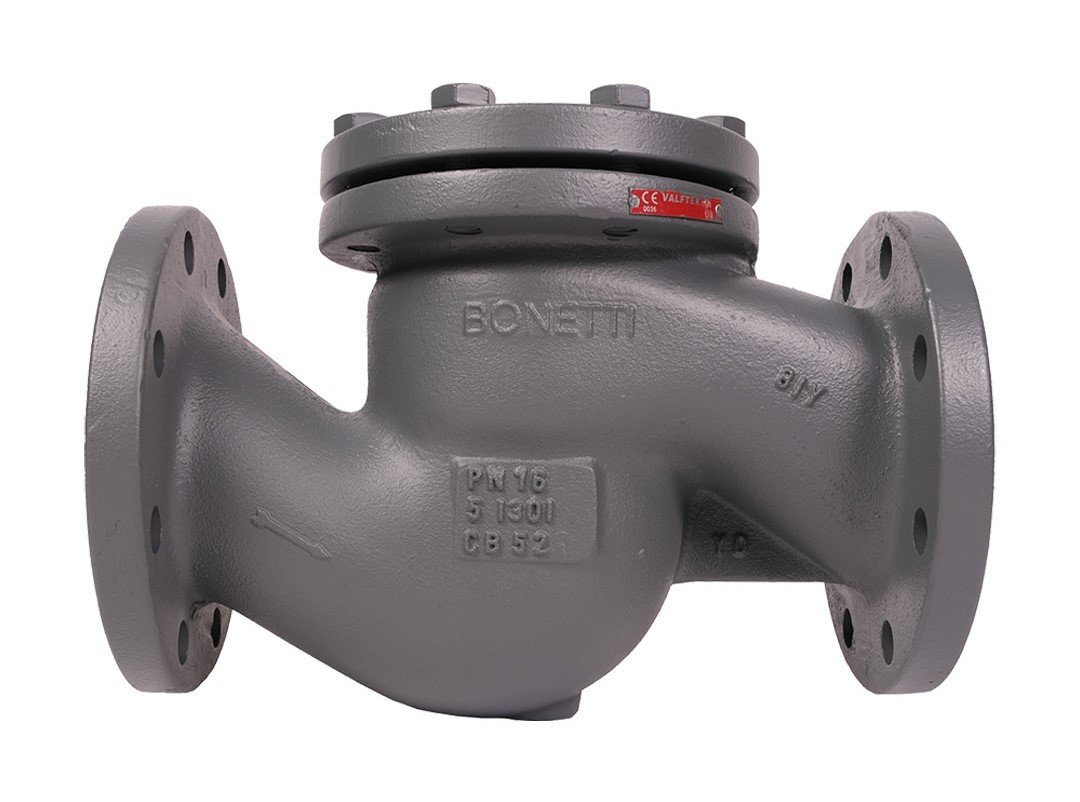

VALFTEK Lift Type Check Valve DN125 PN16
%32 Discounted Product
0 - Comment / Read Comments
553,83 EUR
376,61 EUR
Category
Brand
Stock Code
ACY216125
Warranty Period
24 Month
Price
461,53 EUR + VAT
* Installments starting from 376,61 EUR!
Add to Cart
VALFTEK Lift Type Check Valve
ORFA VALFTEK Lift Type Check Valve DN125 PN16, offered for sale by Endüstri Mamüller Sanayi ve Ticaret A.Ş. , is a high-performance check valve specially designed for industrial fluid systems operating under high temperature and pressure.
Lift Type Check Valve, which offers easy installation with its flange connection structure, allows fluids to pass in only one direction thanks to its pressure spring mechanism and safely prevents backflow. It provides a more stable and long-lasting operation thanks to the bearing disc design used in diameters DN150 and above.
Offering extra safety with its soft sealing option, this Lift Type Check Valve can operate in the temperature range from -20°C to +350°C, making it ideal for high temperature systems such as steam,
superheated water.
superheated water.
PED Being CE certified in accordance with the 2014/68/EU directive proves that the product has safety and quality at European standards.
Specification
Size: DN125 (Flanged connection)
Body Material: Cast iron
Pressure Class: PN
Operating Temperature: -20°C ~ +350°C
Internal Mechanism: Compression spring
Disc Design: DN150 and above diameters with bearing
Sealing: With soft sealing option
Certificates: PED 2014/68/EU compliant, CE certified
Mounting Position: Suitable for horizontal and vertical mounting
Lift Type Check Valve Working Principle
VALFTEK Lift Type Check Valve is a valve type designed to pass the flow in one direction only and prevent backflow in fluid systems. In this system called “lift type”, the pressure generated during the forward movement of the fluid lifts the valve disc in the internal mechanism upwards, allowing passage.
When the flow stops or a reverse pressure occurs, the disc closes downwards thanks to the spring force and prevents the line from being damaged by back flow. In this way, pumps, boilers or other sensitive equipment in the installation are protected.
DN150 and above models' bearing disc design ensures that the disc operates in a more balanced and vibration-free manner. This means less wear, longer service life and low maintenance.
With the soft sealing option, the risk of leakage is minimized and a safe seal is ensured. The check valve can be mounted in a horizontal or vertical position, thus adding flexibility to system designs.
Lift Type Check Valve Usage Areas
Steam systems
Hot water lines
Hot water systems
Clean water and process water applications
Air systems
All industrial fluid lines
VALFTEK Lift Type Check Valve is an ideal solution for fluid lines operating under high temperature and pressure. It offers safe, long-lasting and high-performance use with its durable cast iron body, pressure spring and valve structure, bearing disc design and soft sealing option. CE certified this Lift Type Check valve; It is safely preferred in many fluid systems such as steam, hot water and air. ORFA Add value to your projects with Industrial assurance. ORFA Endüstriyel güvencesiyle projelerinize değer katın.
| Diameter-Dn | : | DN 125 |
| Body | : | Iron Casting |
| Pressure Class | : | PN 16 |
