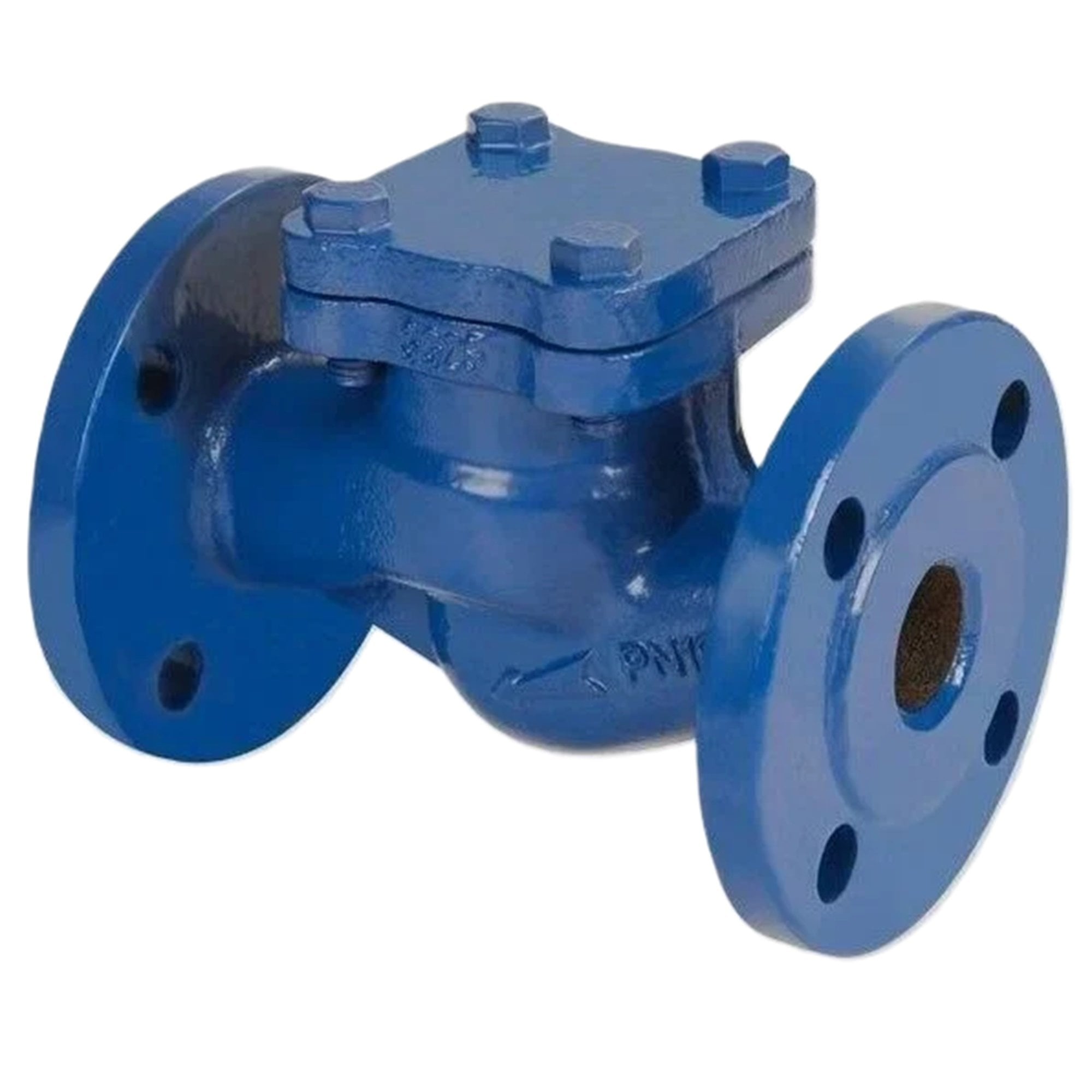

VİS Lift Type Check Valve PN16 DN150
Safe Backflow Control in High Flow Lines – Assured by ORFA Industrial
Serving a critical protective role in industrial water distribution, pumping and process flow lines, the lift type check valve ensures fluid flows only in the forward direction and automatically closes the line against back pressure. Designed with the robust construction of the VİS brand, this DN150 PN16 lift type check valve, with a length of 225 mm and height of 285 mm and flanged connection, provides perfect compatibility with standard piping systems. Thanks to its vertically moving disc mechanism, this lift type check valve operates precisely and without water hammer, reacting quickly under high flow rates and protecting the system from sudden pressure surges. The combination of AISI 304 and AISI 316 stainless steel internal parts with a GG25 cast iron body makes this lift type check valve resistant to corrosion and mechanical loads. The spring, made of 1.4310 stainless spring steel, ensures strong and reliable closure. With a Kingeirite gasket, the lift type check valve operates in a range of -10°C to +120°C, showing full resistance to severe temperature fluctuations. With a flange outer diameter of 240 mm and a weight of 65 kg, this lift type check valve offers a strong and stable structure. Used to protect pumps from backflow in water distribution lines, ensure safe operation of booster systems, and prevent tank overflow in industrial process lines, this lift type check valve is available from ORFA Industrial stock. Each lift type check valve unit has a PN16 pressure rating, allowing safe operation up to 16 bar. Choosing a professional quality lift type check valve for your installation extends the life of your pump automation systems while maximizing operational safety. Thanks to its flanged connection type, the VİS lift type check valve allows quick installation and removal, saving time during maintenance and inspection.
Lift Type Check Valve Technical Specifications Details
Key Advantages of Lift Type Check Valve
- Hammer-Free Closure: Spring-assisted lift type check valve provides fast and smooth closing, preventing water hammer.
- High Pressure Resistance: PN16 rating ensures safe operation at 16 bar pressure.
- Corrosion Resistant: AISI 304/316 stainless internal parts and Kingeirite gasket guarantee long service life.
- Easy Installation: Flanged connection for quick and secure mounting to standard piping systems.
Application Areas of Lift Type Check Valve
- Backflow protection in water distribution lines and central pumping systems.
- Safe water supply with booster systems and pressure tanks.
- Fluid control in industrial process lines with lift type check valve.
- Automation in reservoir systems and water lifting lines in multi-story buildings.
Add reliable backflow protection and long-lasting operation to your industrial water systems with the VİS lift type check valve DN150 PN16.
| Body Material | : | Casting |
| Pressure Class (PN) | : | PN 16 |
| Nominal Diameter (DN) | : | DN 150 |
