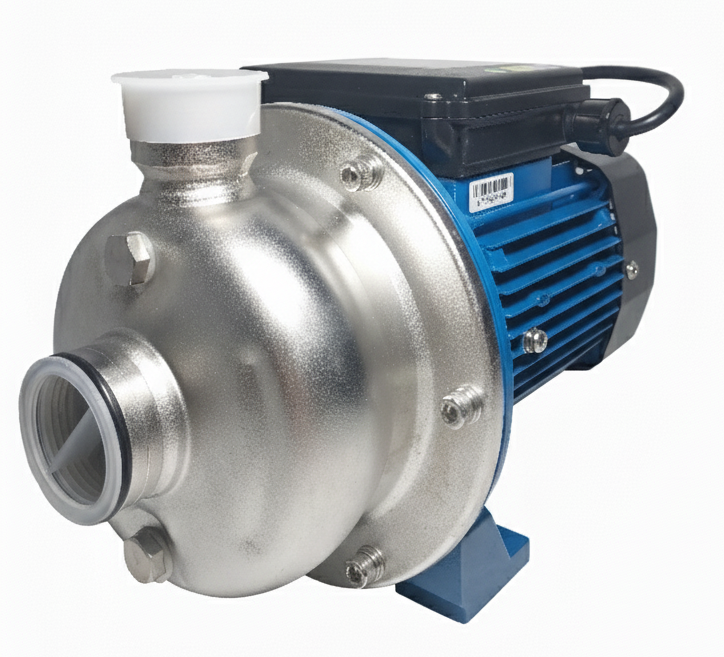

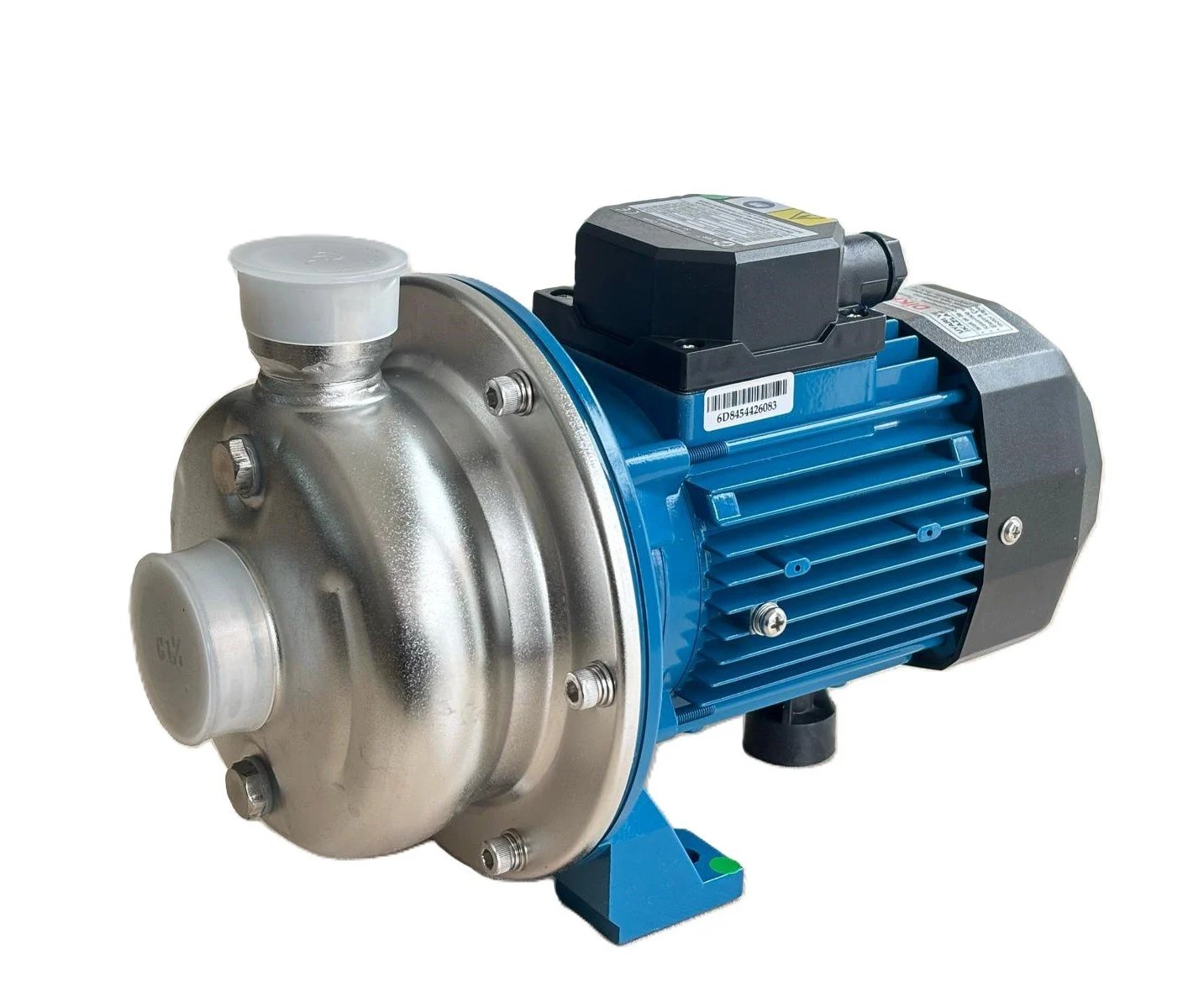

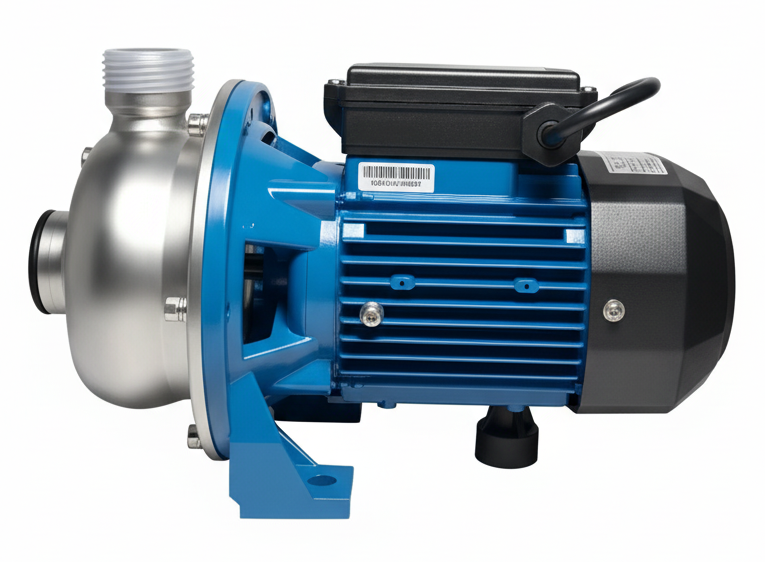

Water Sound BK50 Stainless Steel Open Impeller Centrifugal Pump 0.50 HP
Open Impeller Stainless Steel Centrifugal Pump – Water Sound BK 50 – 0.50 HP
Backed by ORFA Industrial, the Water Sound BK 50 Centrifugal Pump is a professional centrifugal pump model offering high performance in transferring viscous liquids, non-contaminated industrial fluids, and some chemical liquids. With a fully stainless steel body and an open vortex impeller design, this centrifugal pump provides high flow rates and reduces clogging risk, ensuring reliable operation in industrial facilities.
Centrifugal Pump Description
The BK 50 model is a high-performance centrifugal pump solution with 0.50 HP motor power, 116.6 L/min (7 m³/h) flow capacity, and 13 meters head. This centrifugal pump, preferred for viscous liquid transfer, process feeding, and applications requiring chemical compatibility, offers higher particle tolerance compared to standard closed-impeller pumps thanks to its open impeller design.
Centrifugal Pump Working Principle
This centrifugal pump operates on the classic centrifugal principle. It takes liquid from the suction line, accelerates it via the stainless steel vortex impeller, and delivers it to the discharge line. Thanks to its open impeller design, this centrifugal pump ensures stable flow and efficient transfer even in liquids with high viscosity or light sediment.
Centrifugal Pump Technical Specifications
| Model | Water Sound BK 50 |
| Motor Power | 0.50 HP (0.37 kW) |
| Motor Type | Single Phase 220V |
| Body | AISI 304 Stainless Steel |
| Impeller Type | Stainless Steel Open (Vortex) |
| Flow Rate | 116 L/min (7 m³/h) |
| Max. Pressure | 13 mWC |
| Suction – Discharge | 1 1/4" – 1" |
| Performance Curve | 0 m³/h → 13 m 2 m³/h → 11 m 3 m³/h → 10 m 4 m³/h → 9 m 5 m³/h → 8.5 m 6 m³/h → 8 m 7 m³/h → 6 m |
Centrifugal Pump Application Areas
- Transfer of viscous liquids (slightly viscous fluids)
- Centrifugal pump applications with stainless steel body in chemical processes
- Clean water supply in food, health, and hygiene facilities
- Industrial washing and rinsing systems
- Use as a feed pump in treatment plants
- Cooling water circulation lines
- Tank and storage liquid transfer applications
| Operating Voltage | : | 220 V AC |
| Power (P) | : | 0.50 HP - 0.37 KW |
| Body Material | : | Stainless |
| Thread Size | : | 1'', 1 1/4'' |
| Maximum Head (H) | : | 13 mSS |
| Flow rate Q : m³/h | : | 7 m³/h |
