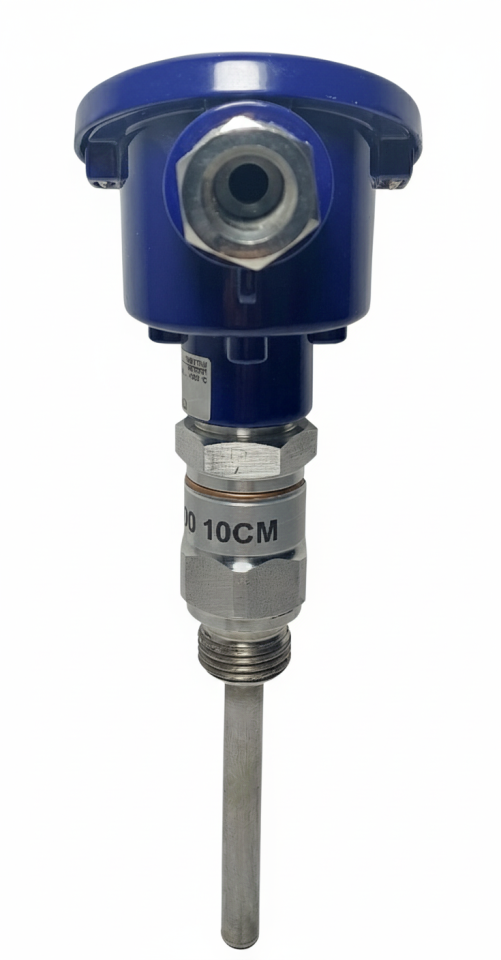

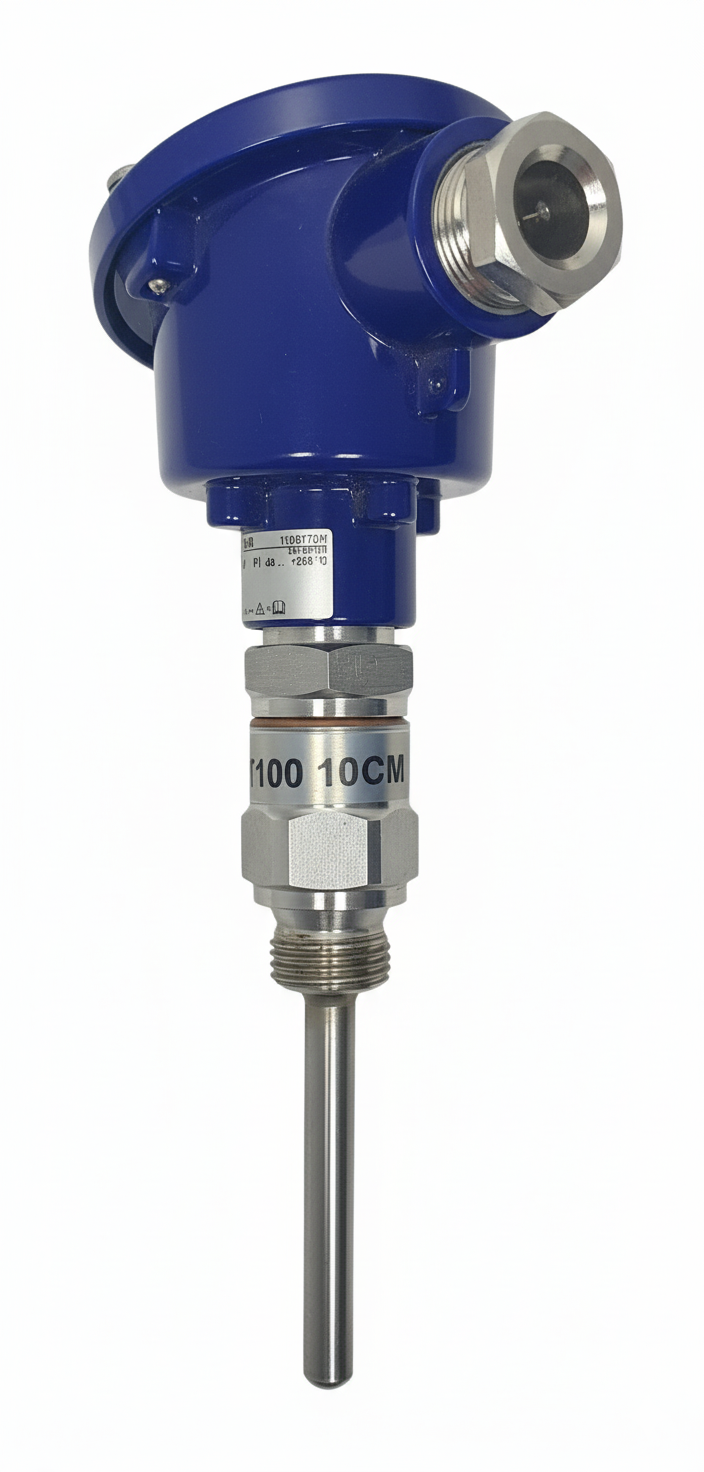

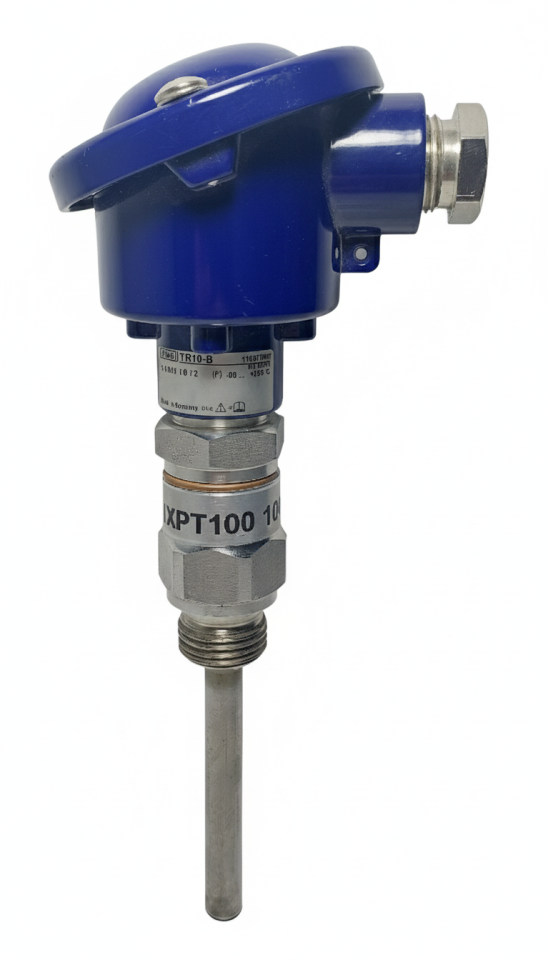

WIKA TR10-B 1 X PT100 Head Type Thermocouple 10cm 1/2''
%28 Discounted Product
0 - Comment / Read Comments
225,60 EUR
162,43 EUR
Category
Brand
Stock Code
1107100104000010071070104
Warranty Period
24 Month
Price
188,00 EUR + VAT
* Installments starting from 162,43 EUR!
Add to Cart
WIKA TR10-B 1xPT100 Head Type Thermocouple 10cm 1/2''
The WIKA TR10-B 1xPT100 Head Thermocouple is a robust sensor developed for precise temperature measurement in industrial processes. Its AISI 316 stainless steel housing offers high corrosion resistance. Its compact and robust design ensures reliable measuring performance.Working Principle
The sensor operates on the PT100 resistance thermometer principle. The platinum resistance element changes its resistance value as temperature changes, and this change is converted into accurate temperature data. This enables reliable and rapid measurements over a wide temperature range.
Technical Specifications
Technical Specifications
Model: TR10-B
Sensor Type: PT100 (resistance thermometer)
Temperature Range: -50°C … +250°C
Probe Length: 80 mm
Connection Diameter: 1/2'' NPT screw connection
Material: Stainless Steel (AISI 316)
Protection Class: IP65
Response Time: Optimized for fast and reliable measurement
Feature: Head type, robust industrial design
Areas of Use
Areas of Use
Industrial process lines
Chemical and petrochemical plants
Energy production plants
Water treatment and food industry
HVAC and heating-cooling systems
The WIKA TR10-B PT100 thermocouple is a reliable solution for industrial applications with its precise temperature measurement, wide temperature range, and stainless steel construction. Its IP65 protection class ensures long-lasting use even in harsh environments.
The WIKA TR10-B PT100 thermocouple is a reliable solution for industrial applications with its precise temperature measurement, wide temperature range, and stainless steel construction. Its IP65 protection class ensures long-lasting use even in harsh environments.
| Tooth Measurement | : | 1/2'' |
