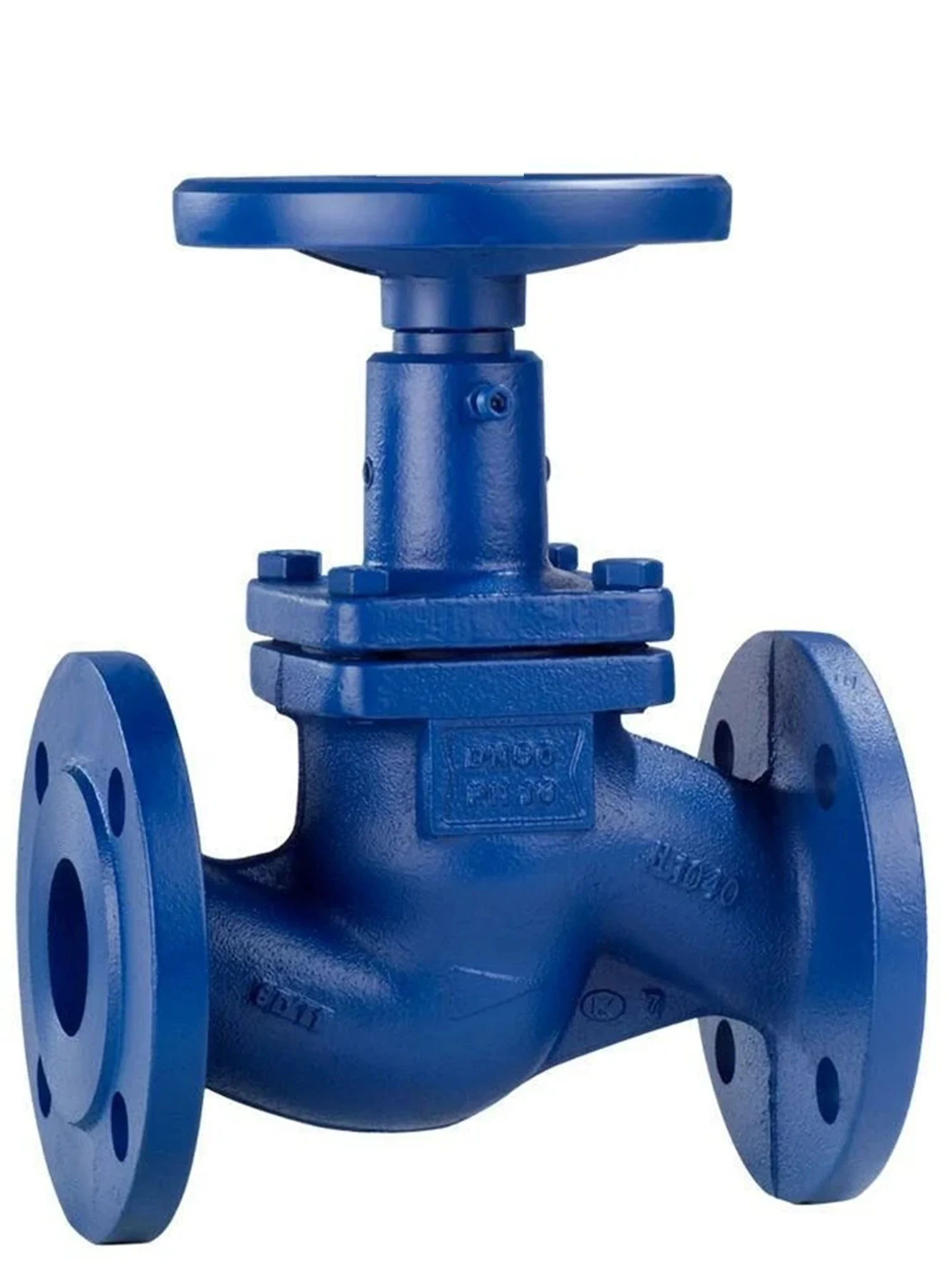

KSB BOA-H Metal Bellows Valve PN25 DN32
%50 Discounted Product
0 - Comment / Read Comments
300,00 EUR
150,00 EUR
Category
Brand
Stock Code
1604201003000000010040207
Warranty Period
24 Month
Price
250,00 EUR + VAT
* Installments starting from 150,00 EUR!
Add to Cart
KSB BOA-H Metal Bellows Valve PN25 DN32 GGG High Temperature and Pressure Resistant, Reliable Flow Control
KSB BOA-H Metal Bellows Valve, has been developed to provide superior sealing and precise flow control in high temperature and pressure process lines. Its PN25 pressure class and DN32 nominal diameter enable it to be used safely in various industrial applications. EN-GJS-400-LT-18 (nodular cast iron) body offers strength and durability in harsh operating conditions, while its metal bellows design provides full sealing around the shaft and minimizes the need for maintenance. Throttling plug (drosselkegel) structure allows precise flow control. Position indicator, locking device and motion termination feature increase system security. Operating in the temperature range of -10 °C to +350 °C, the valve can be used with full insulation in accordance with the German heating system regulation (HeizAnlV). ATEX can be used in explosive environments according to the directive.
Technical Specifications:
KSB BOA-H Metal Bellows Valve, has been developed to provide superior sealing and precise flow control in high temperature and pressure process lines. Its PN25 pressure class and DN32 nominal diameter enable it to be used safely in various industrial applications. EN-GJS-400-LT-18 (nodular cast iron) body offers strength and durability in harsh operating conditions, while its metal bellows design provides full sealing around the shaft and minimizes the need for maintenance. Throttling plug (drosselkegel) structure allows precise flow control. Position indicator, locking device and motion termination feature increase system security. Operating in the temperature range of -10 °C to +350 °C, the valve can be used with full insulation in accordance with the German heating system regulation (HeizAnlV). ATEX can be used in explosive environments according to the directive.
Technical Specifications:
Body Material: GGG40 Ductile Iron (EN-GJS-400-LT-18)
Nominal Diameter: DN
Pressure Class: PN
Component Function: Lock/Edit
Connection Type Input: Flange
Drive: With handwheel
Type: Straight through, horizontal seating
Spindle: Metal bellows, non-rising type
Position Indicator: External, color coded
Min. Operating Temperature: -10 °C
Max. Operating Temperature: °C
Weight: .1 kg
Coating: Blue (similar to RAL 5002)
@ATEX Compatibility: Yes
Uses:
Uses:
Steam and hot water lines
Chemical and petrochemical facilities
Thermal oil systems
Process control lines
Power plants
Industrial heating systems
KSB BOA-H Metal Bellows Valve PN25 DN32 GGG40, ORFA Industrial Reliable, long-lasting and maintenance-free flow under high temperature and pressure conditions with assurance provides control. It is the perfect solution for industrial systems with its robust body and precise control features.
KSB BOA-H Metal Bellows Valve PN25 DN32 GGG40, ORFA Industrial Reliable, long-lasting and maintenance-free flow under high temperature and pressure conditions with assurance provides control. It is the perfect solution for industrial systems with its robust body and precise control features.
| Diameter-Dn | : | DN 32 |
| Body | : | Iron Casting |
| Pressure Class | : | PN 25 |
