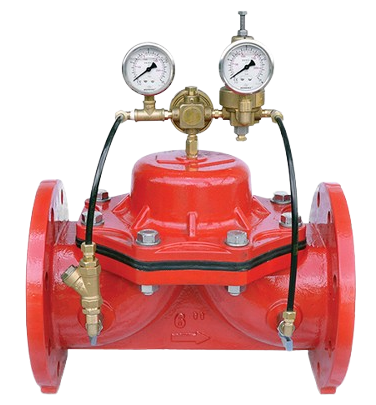

Ayvaz Pressure Sustaining and Pressure Reducing Control Valve PN16 DN50
0 - Comment / Read Comments
Ayvaz Pressure Sustaining and Pressure Reducing Control Valve PN16 DN Dual Function, Single Valve: Constant Pressure and Safe Reducing Ayvaz Pressure Sustaining and Pressure Reducing Control Valve, offered by Endüstri Mamüller Sanayi ve Ticaret A.Ş.
, is an ideal solution to both stabilize the inlet pressure and reduce the outlet pressure in systems. This multifunctional control valve, with PN16 pressure class and DN50 diameter, provides safe and balanced flow management, especially in systems with variable pressure. Thanks to this valve, fluctuations in the system are prevented, the life of the equipment on the line is extended and energy efficiency is increased. This automatic Pressure Sustaining and Pressure Reducing Control Valve works with a spring and diaphragm mechanism without the need for any external energy. The flanged connection structure offers the advantage of easy installation and service.
Suitable for water, air, pressurized gases and various process liquids. It is frequently preferred in industrial installations, building automations and process lines.
Product Features:
Model:
, is an ideal solution to both stabilize the inlet pressure and reduce the outlet pressure in systems. This multifunctional control valve, with PN16 pressure class and DN50 diameter, provides safe and balanced flow management, especially in systems with variable pressure. Thanks to this valve, fluctuations in the system are prevented, the life of the equipment on the line is extended and energy efficiency is increased. This automatic Pressure Sustaining and Pressure Reducing Control Valve works with a spring and diaphragm mechanism without the need for any external energy. The flanged connection structure offers the advantage of easy installation and service.
Suitable for water, air, pressurized gases and various process liquids. It is frequently preferred in industrial installations, building automations and process lines.
Product Features:
Model:
Ayvaz Pressure Sustaining and Pressure Reducing Control Valve Diameter:
DN Connection Type:
Flanged Pressure Class:
PN Operating Principle:
Direct acting, spring and diaphragm controlled Adjustable Pressure Range:
Inlet and outlet pressure controlled Usage:
Automatic control, does not require energy Temperature Resistance:
Max. 90°C Control Type:
Industrial water and gas systems
Spring controlled Body Material:
GGG40 Ductile Iron Diaphragm:
Cord Reinforced Natural Rubber Cover:
GGG40 Ductile Iron Diaphragm Pressing Ring:
Polyamide Spring:
SST Pressure Drop Ratio:
: Areas of Use:
GGG40 Ductile Iron Diaphragm Pressing Ring:
Polyamide Spring:
SST Pressure Drop Ratio:
: Areas of Use:
Process lines and automation systems
Commercial building and plumbing applications
HVAC systems
Irrigation and infrastructure projects
Fire extinguishing systems
Ayvaz Pressure Sustaining and Pressure Reducing Control Valve, offered with the assurance of ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş.
, is an efficient and safe automatic control system that provides two-way pressure control in the systems at the same time. valve. güvencesiyle sunulan, sistemlerde iki yönlü basınç kontrolünü aynı anda sağlayan, verimli ve güvenli bir otomatik kontrol vanasıdır.
, is an efficient and safe automatic control system that provides two-way pressure control in the systems at the same time. valve. güvencesiyle sunulan, sistemlerde iki yönlü basınç kontrolünü aynı anda sağlayan, verimli ve güvenli bir otomatik kontrol vanasıdır.
| Diameter-Dn | : | DN 50 |
| Body | : | Ductile Iron |
| Pressure Class | : | PN 16 |
