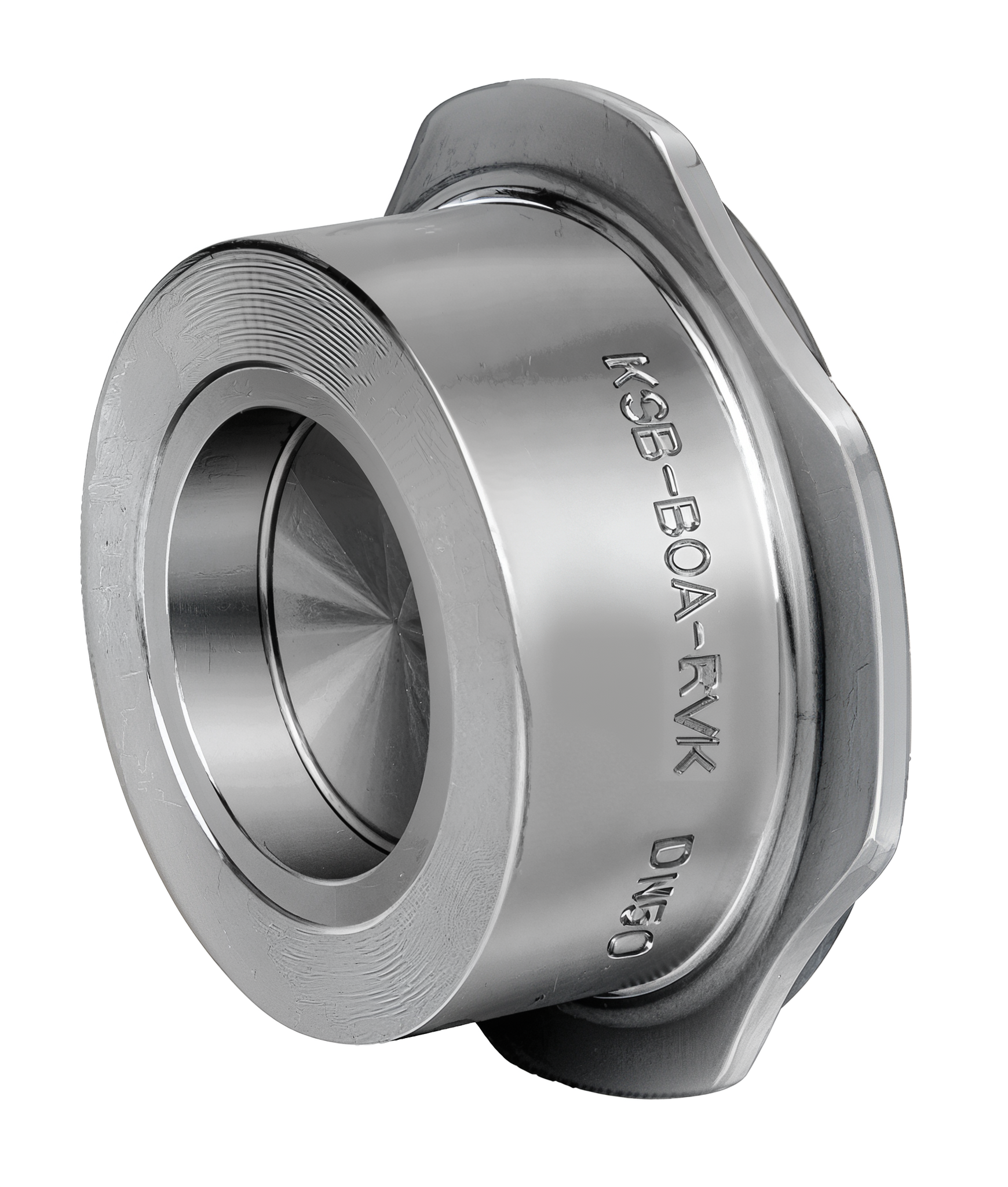

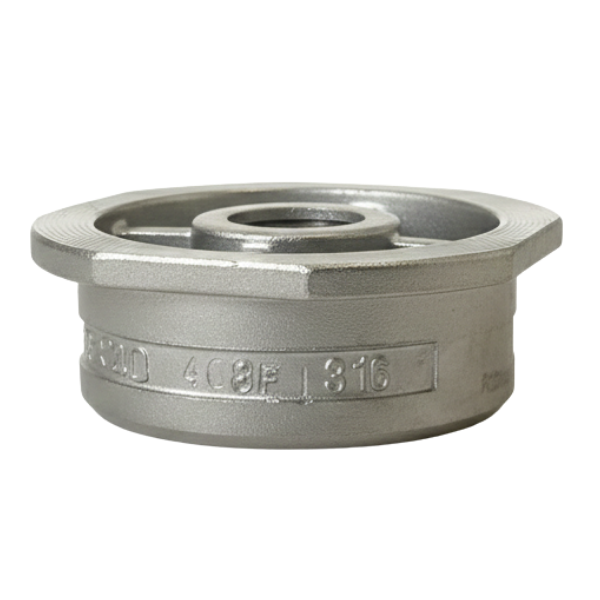

KSB BOA-RVK Paslanmaz Disko Çekvalf PN40 DN15
0 - Comment / Read Comments
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
KSB BOA-RVK Stainless Disco Check Valve PN40 DN Compact and Safe Flow in High Pressure and Temperature Resistance Control
KSB BOA-RVK Stainless Disco Type Check Valve , with high pressure resistance up to 40 bar and temperature tolerance up to 400°C, such as steam, hot oil and high pressure gas lines. It offers excellent performance in demanding processes. AISI Thanks to its 316L stainless steel body and internal parts, it provides long-lasting use by providing superior resistance to corrosion and abrasion. While it saves space with its compact wafer type design, it offers shock-free closing feature with its spring-supported mechanism. ORFA Industrial Products Industry and Trade Inc. This product, offered with assurance, provides a high level of control in your process safety.
Product Working Principle:
KSB BOA-RVK Stainless Disco Type Check Valve , with high pressure resistance up to 40 bar and temperature tolerance up to 400°C, such as steam, hot oil and high pressure gas lines. It offers excellent performance in demanding processes. AISI Thanks to its 316L stainless steel body and internal parts, it provides long-lasting use by providing superior resistance to corrosion and abrasion. While it saves space with its compact wafer type design, it offers shock-free closing feature with its spring-supported mechanism. ORFA Industrial Products Industry and Trade Inc. This product, offered with assurance, provides a high level of control in your process safety.
Product Working Principle:
KSB BOA-RVK check valve allows one-way passage of fluid while offering automatic closing feature against pressure coming from the opposite direction. The spring-supported disc structure ensures that the disc closes quickly and without impact when the flow stops or movement in the opposite direction begins. In this way, the risks of water hammer (water hammer) in the pipeline are minimized and the life of the system components is extended.
Product Code:
Product Code:
KSB BOA-RVK Nominal Diameter:
DN Compressive Strength:
PN Temperature Resistance:
Max. 400°C Connection Type:
Wafer type Body Material:
AISI 316 Stainless Steel (1.4408) Disk and Spring:
Complete AISI 316L Stainless Steel Closing Mechanism:
Spring-assisted, impactless closing Design Advantage:
Compact structure, low pressure loss Areas of Use:
Steam and Condensate Lines:
Steam and Condensate Lines:
Prevents backflow in high temperature and pressure environments Chemical and Petrochemical Industry:
Resistant to corrosive and abrasive fluids Water Distribution and Purification Systems:
Provides system safety by preventing backflow Heating and Energy Systems:
Hot water, hot oil, heat transfer fluid lines Pump Output Lines:
Protects pump safety by preventing back pressure KSB BOA-RVK Stainless Disco Check Valve, ORFA Industrial Products Industry and Trade It is a superior quality check valve, offered with the assurance of A.Ş.
, providing long-lasting operation in high pressure and aggressive environments, saving space with its compact structure and offering safe flow control against water hammer. güvencesiyle sunulan, yüksek basınçlı ve agresif ortamlarda uzun ömürlü çalışma sağlayan, kompakt yapısıyla yerden tasarruf ettiren ve su darbesine karşı güvenli akış kontrolü sunan üstün kaliteli bir çekvalftir.
, providing long-lasting operation in high pressure and aggressive environments, saving space with its compact structure and offering safe flow control against water hammer. güvencesiyle sunulan, yüksek basınçlı ve agresif ortamlarda uzun ömürlü çalışma sağlayan, kompakt yapısıyla yerden tasarruf ettiren ve su darbesine karşı güvenli akış kontrolü sunan üstün kaliteli bir çekvalftir.
| Body Material | : | Stainless |
| Pressure Class (PN) | : | PN 40 |
| Nominal Diameter (DN) | : | DN 15 |
Be the first to comment on this product!
No questions have been asked about this product yet.
